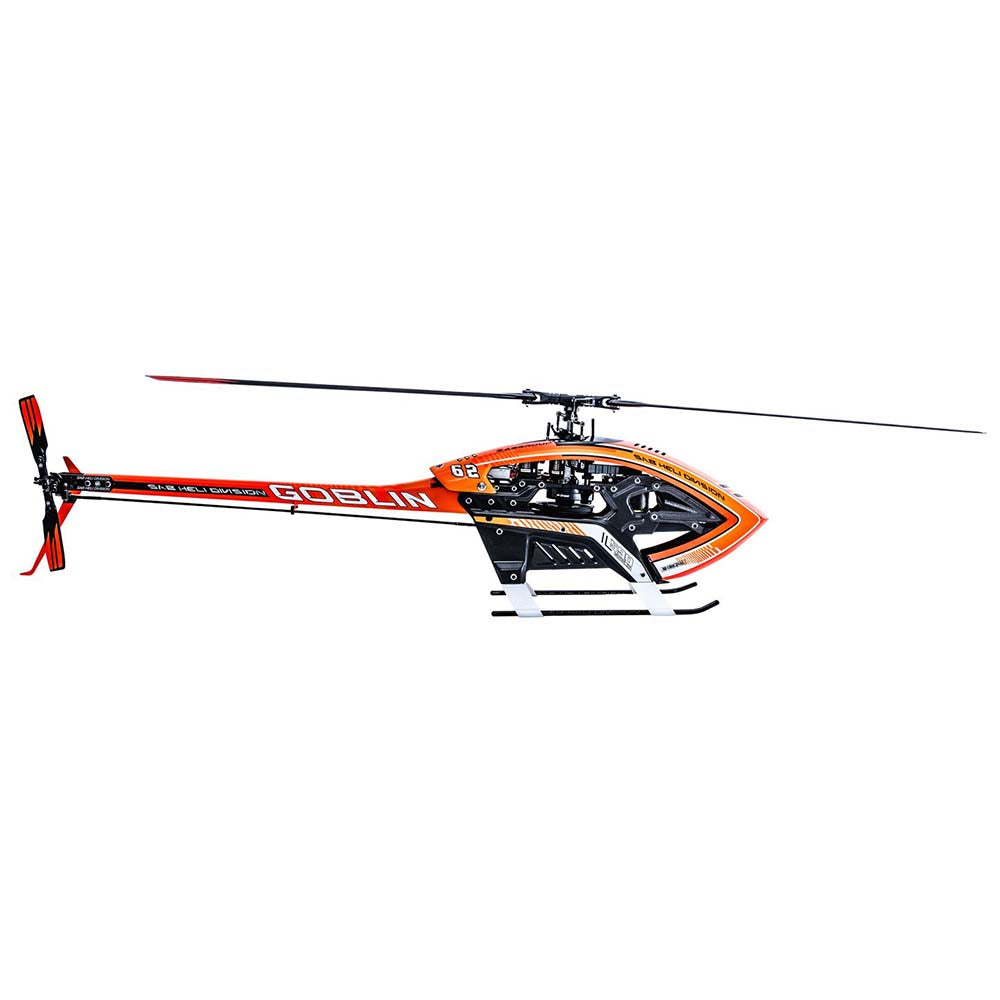

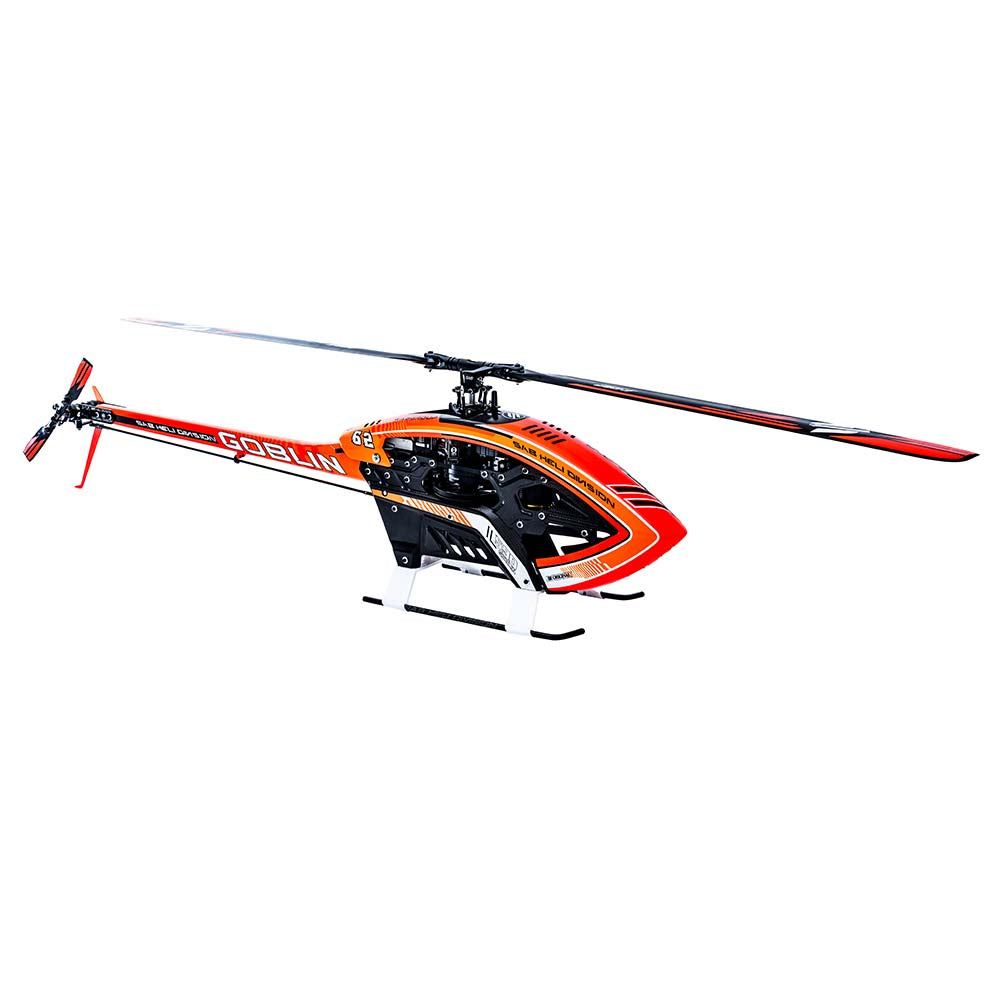

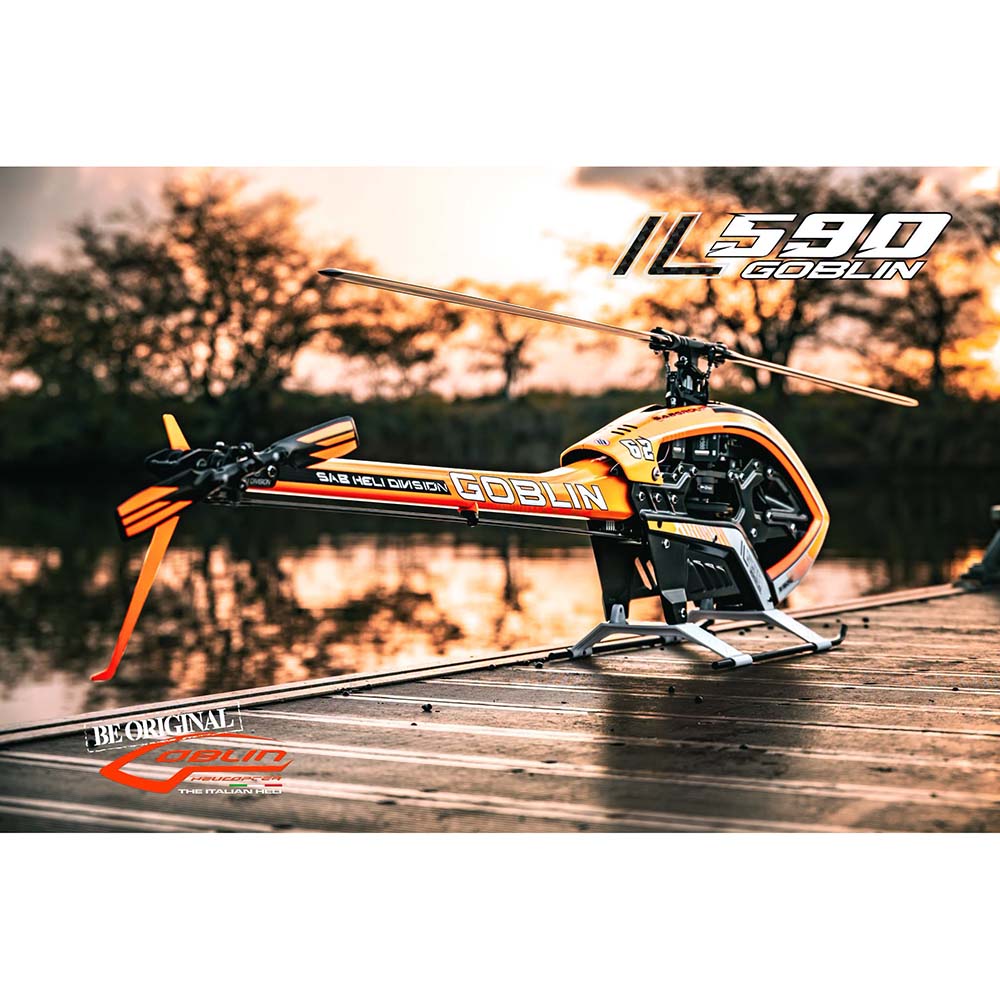

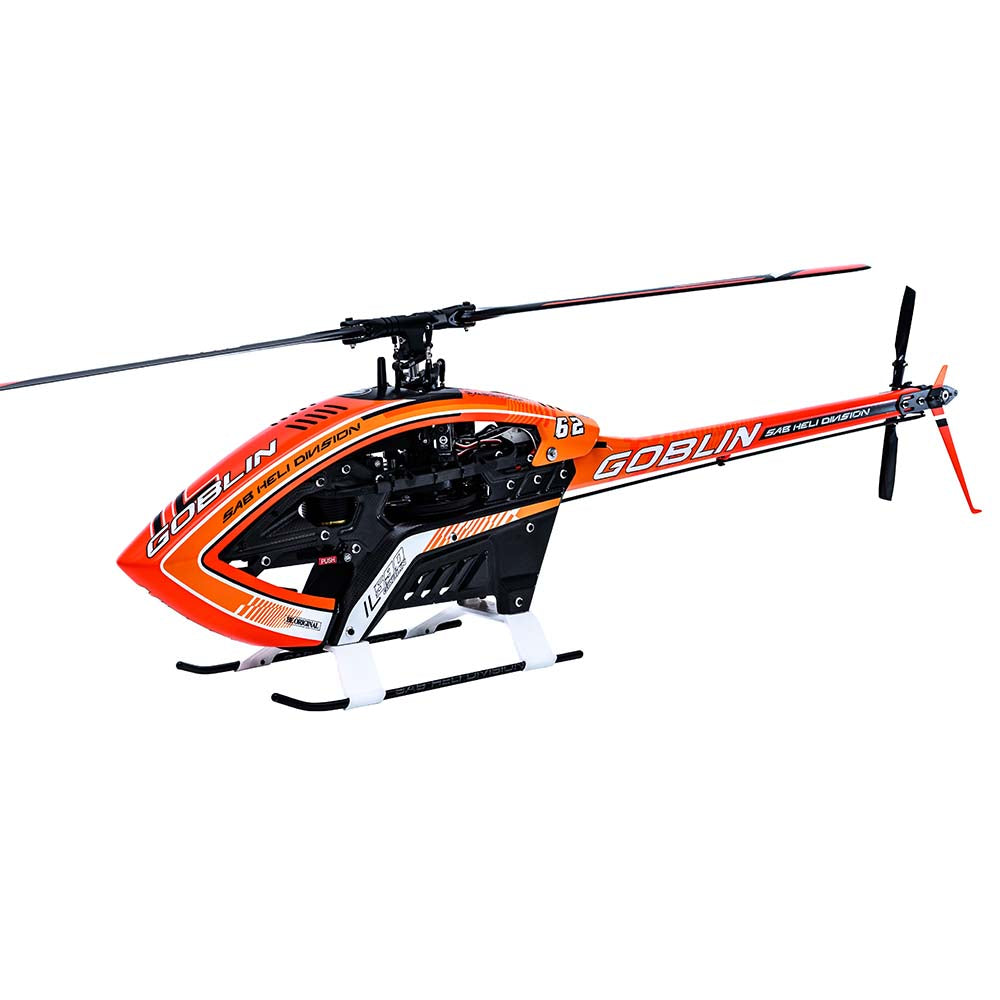

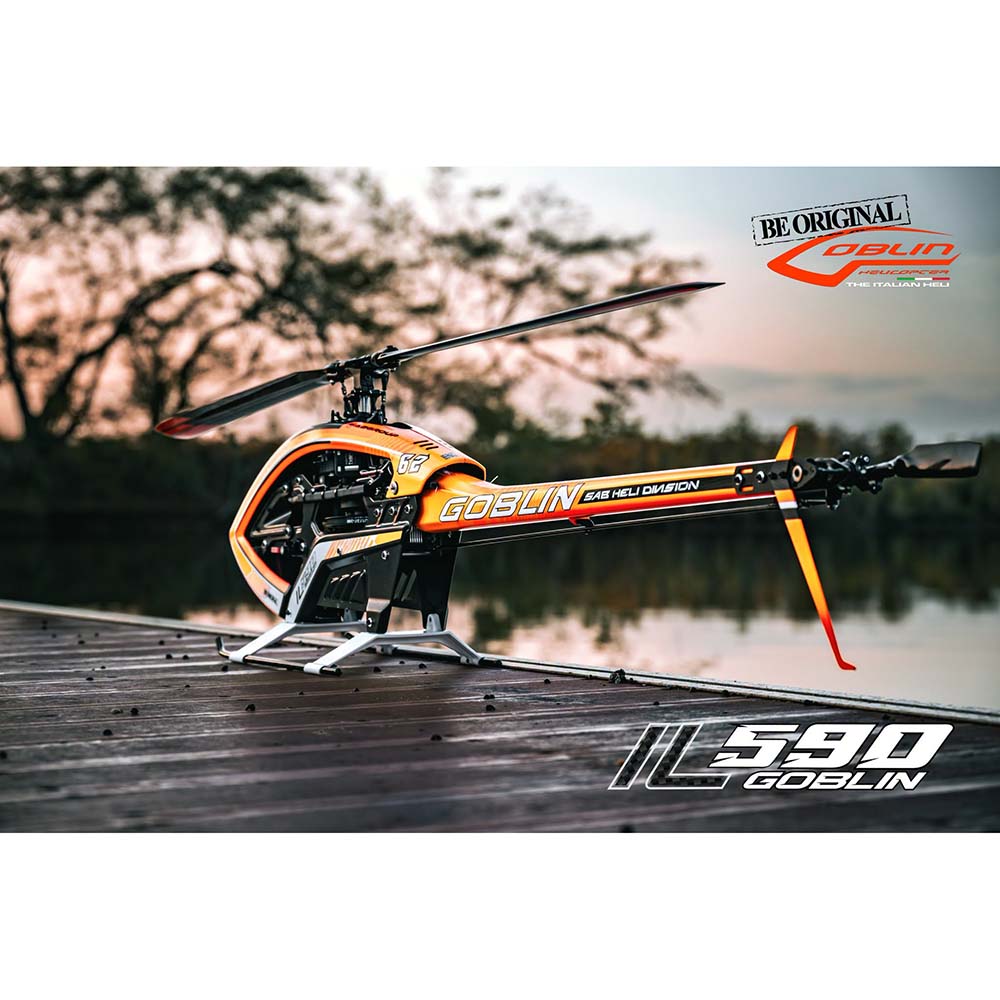

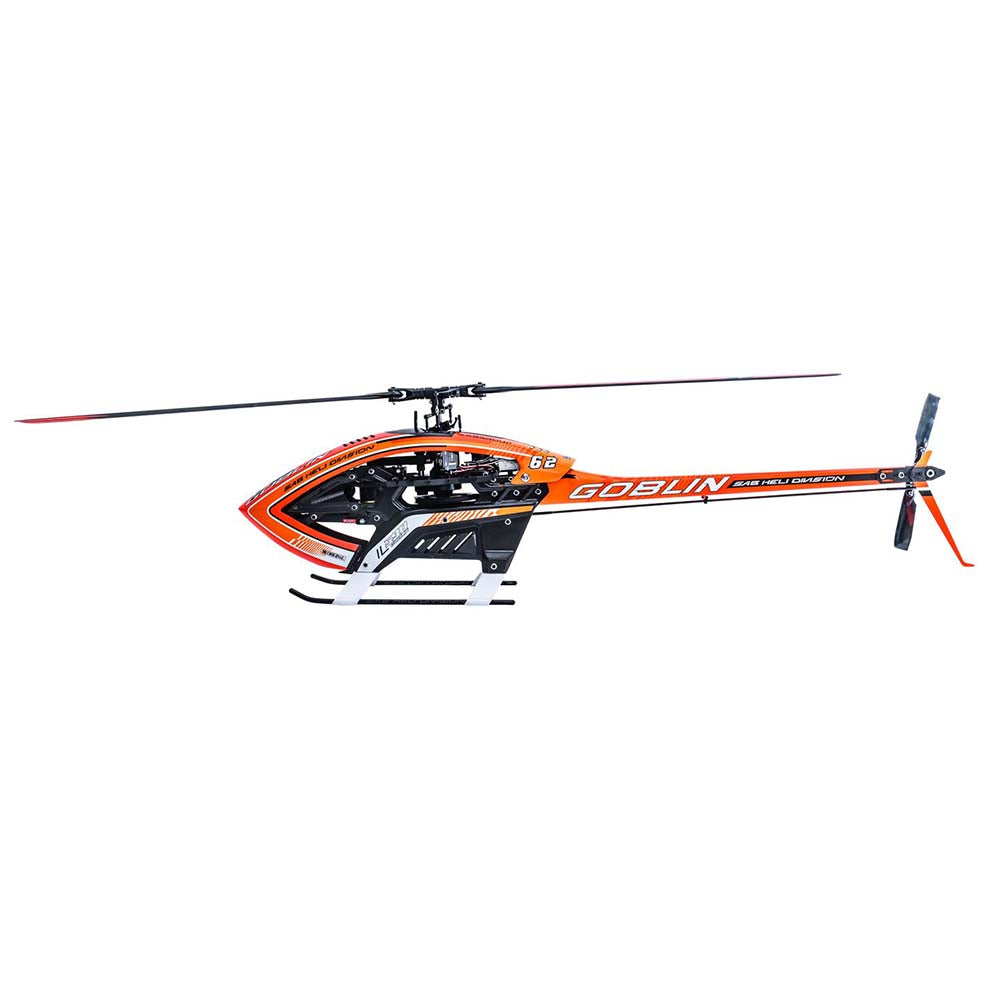

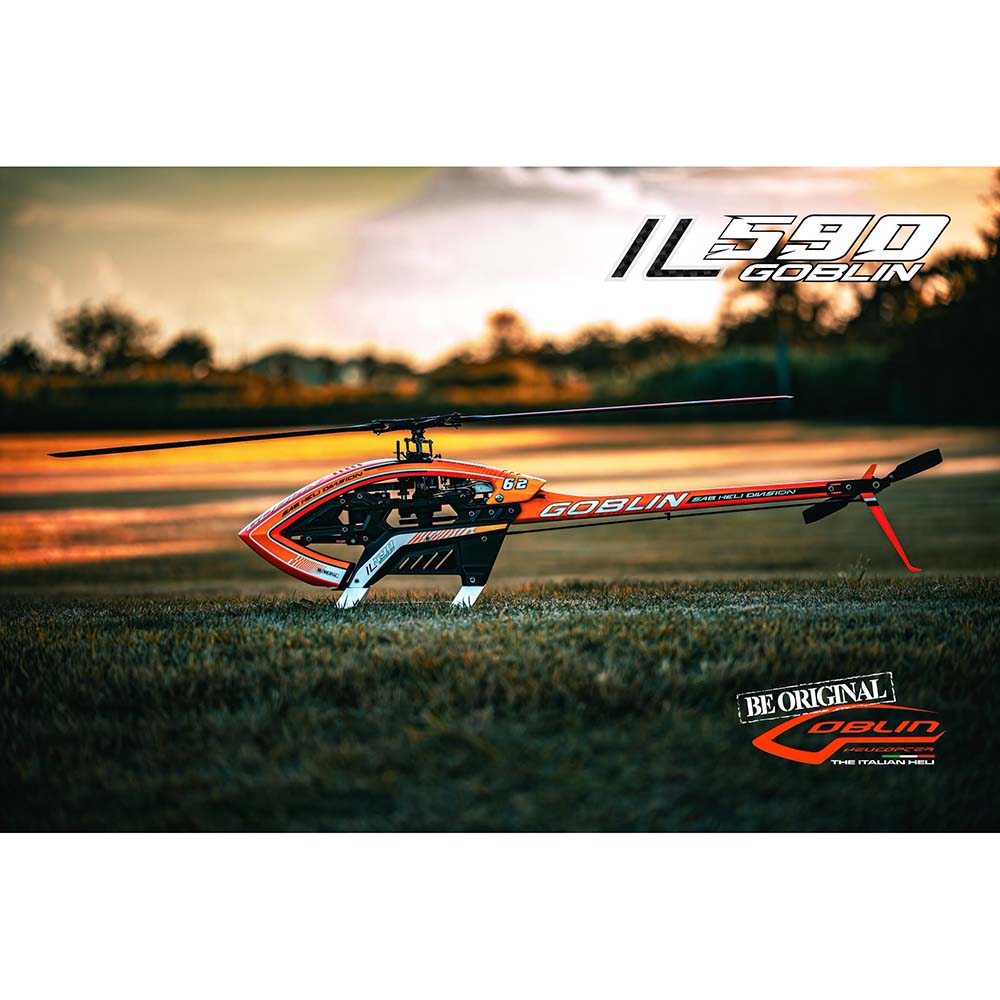

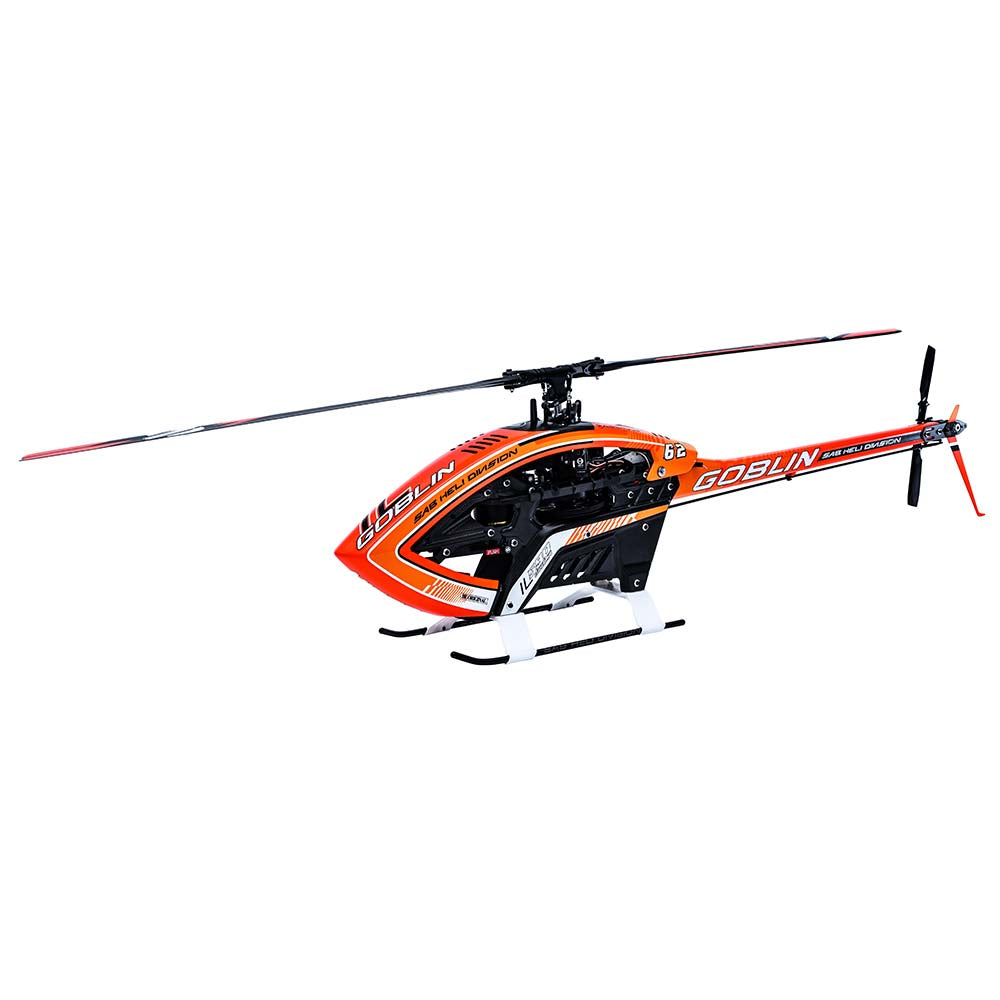

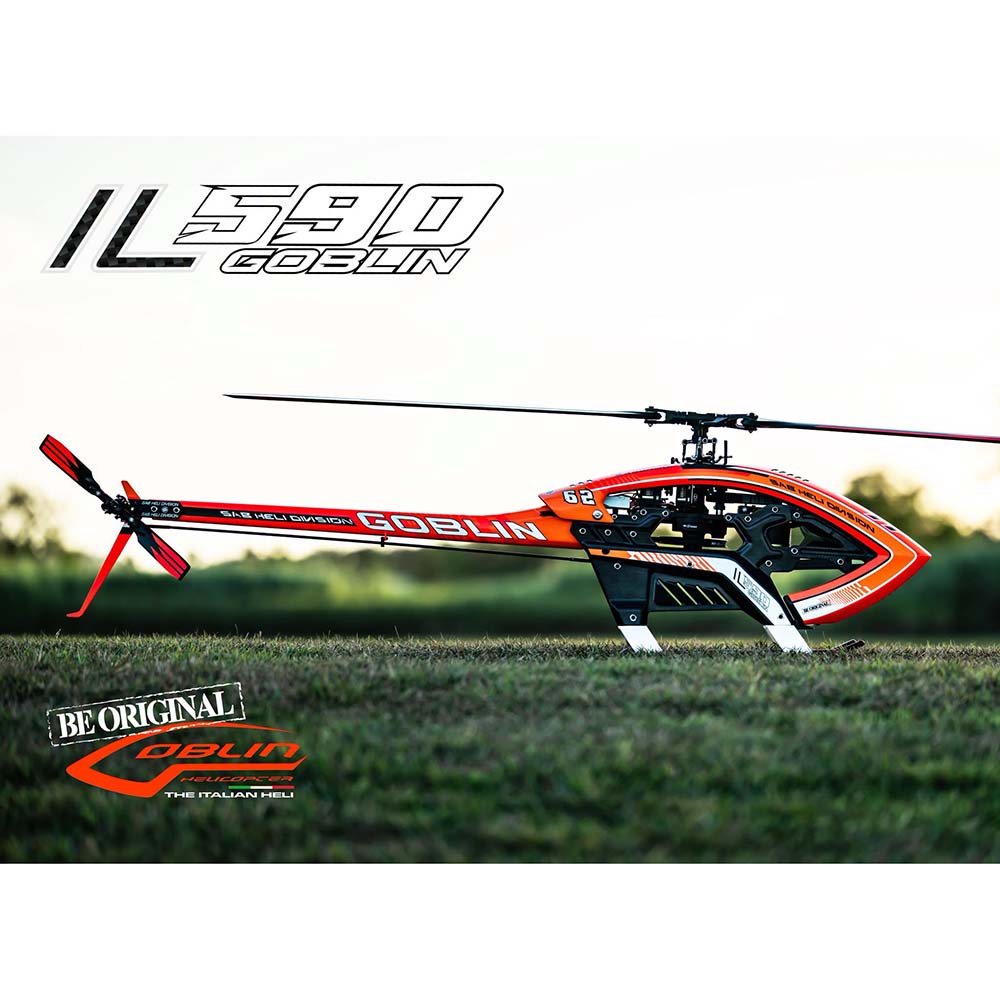

SAB ILGoblin PRO 590 Orange w/ Main and Tail Blades

|
SKU: SG590
Availability: In Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$919.00
$919.00
The order quantity exceeds the stock!
SAB ILGoblin PRO 590 Orange w/ Main and Tail Blades

SAB ILGoblin PRO 590 Orange w/ Main and Tail Blades

$919.00

SAB ILGoblin PRO 590 Orange w/ Main and Tail Blades

$919.00

Related Products

KEY SPECIFICATIONS

  • Airframe Weight: 1,794g with main & tail blades, without motor/electronics
  • Tail Boom: High-Rigidity Compressed Carbon

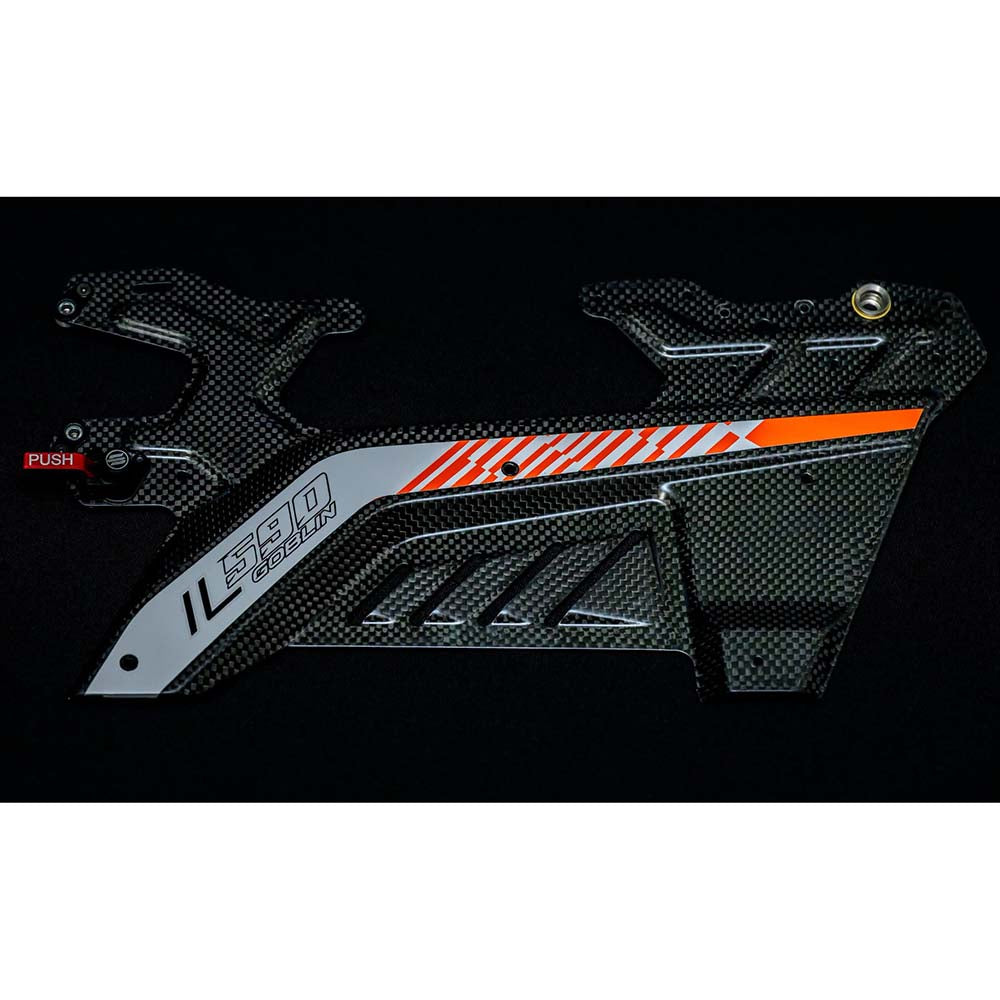

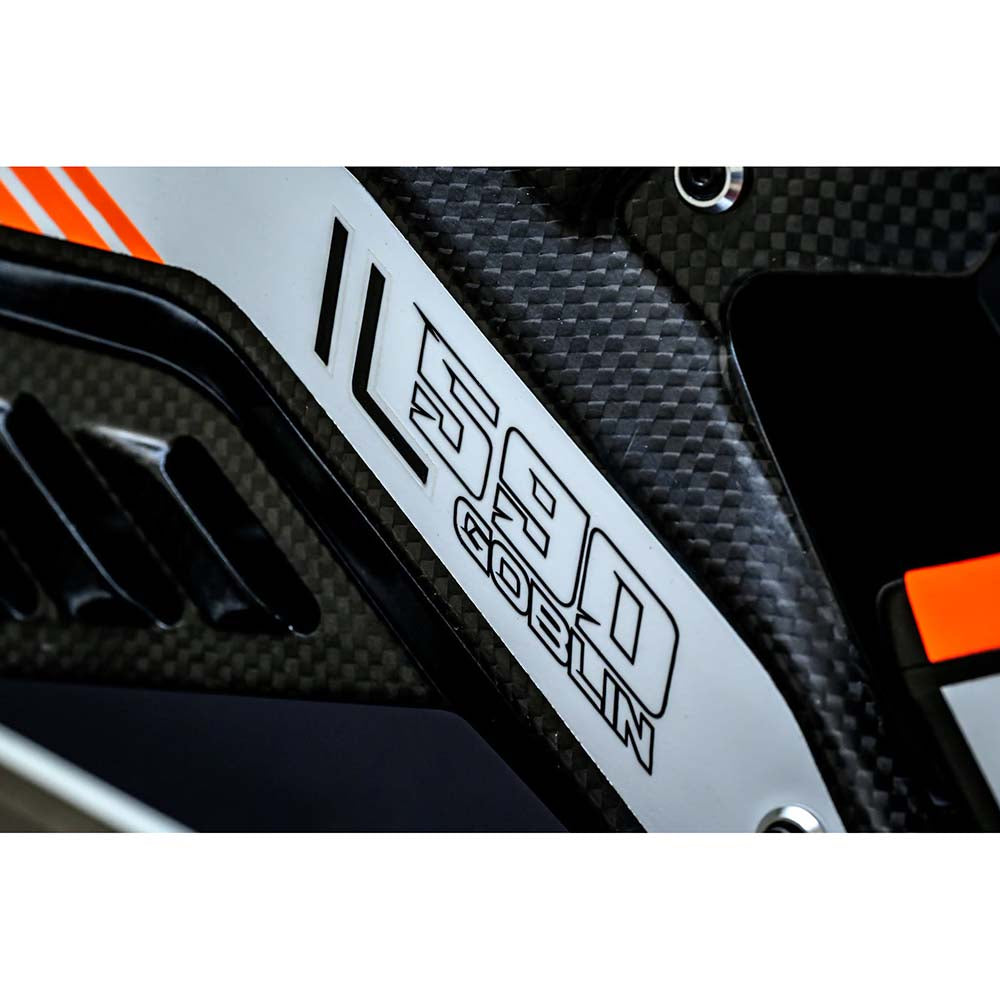

  • Frame: 1.2 mm High-Density Compressed Carbon

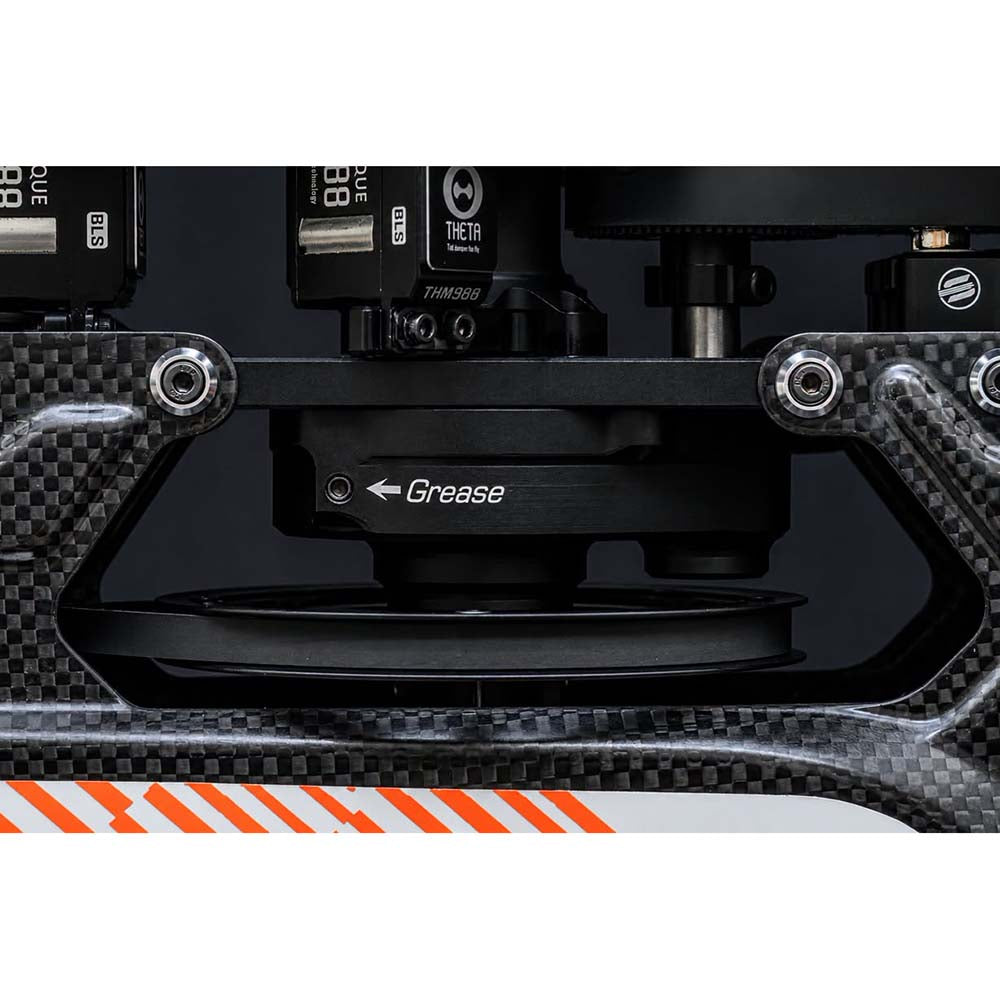

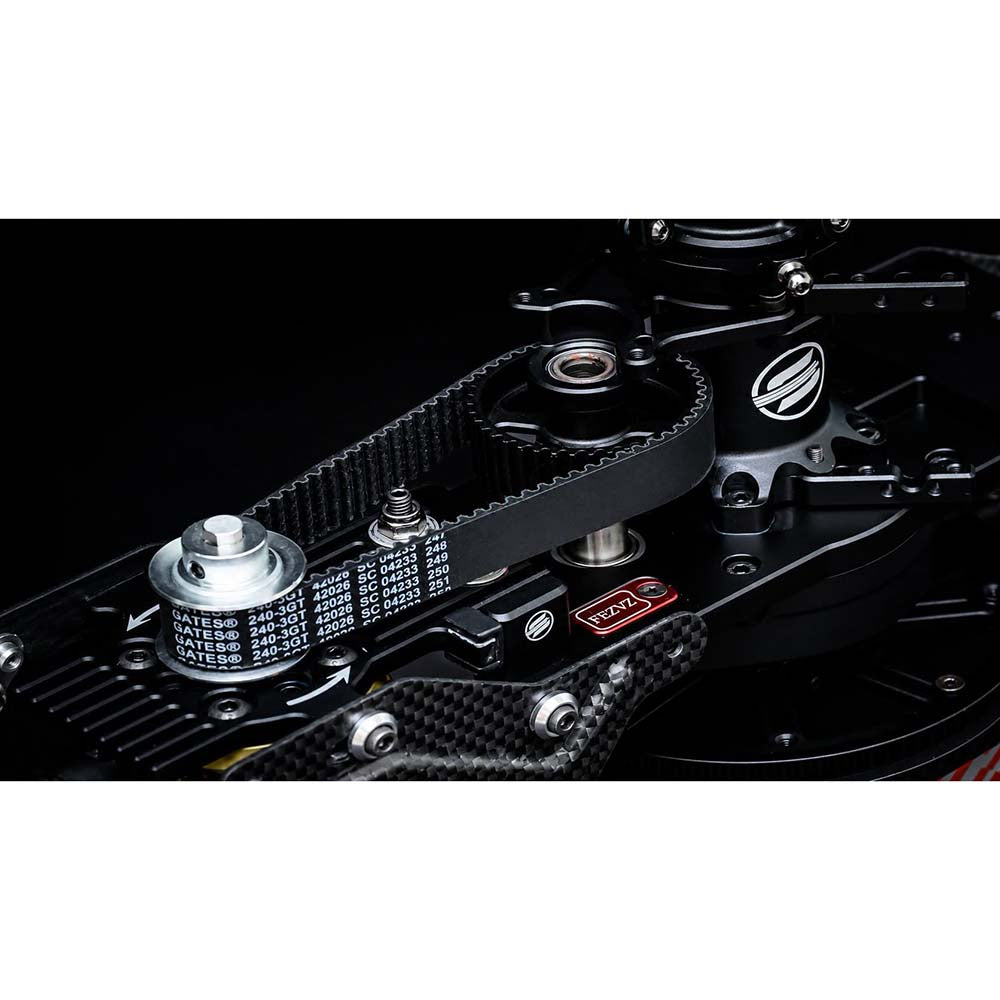

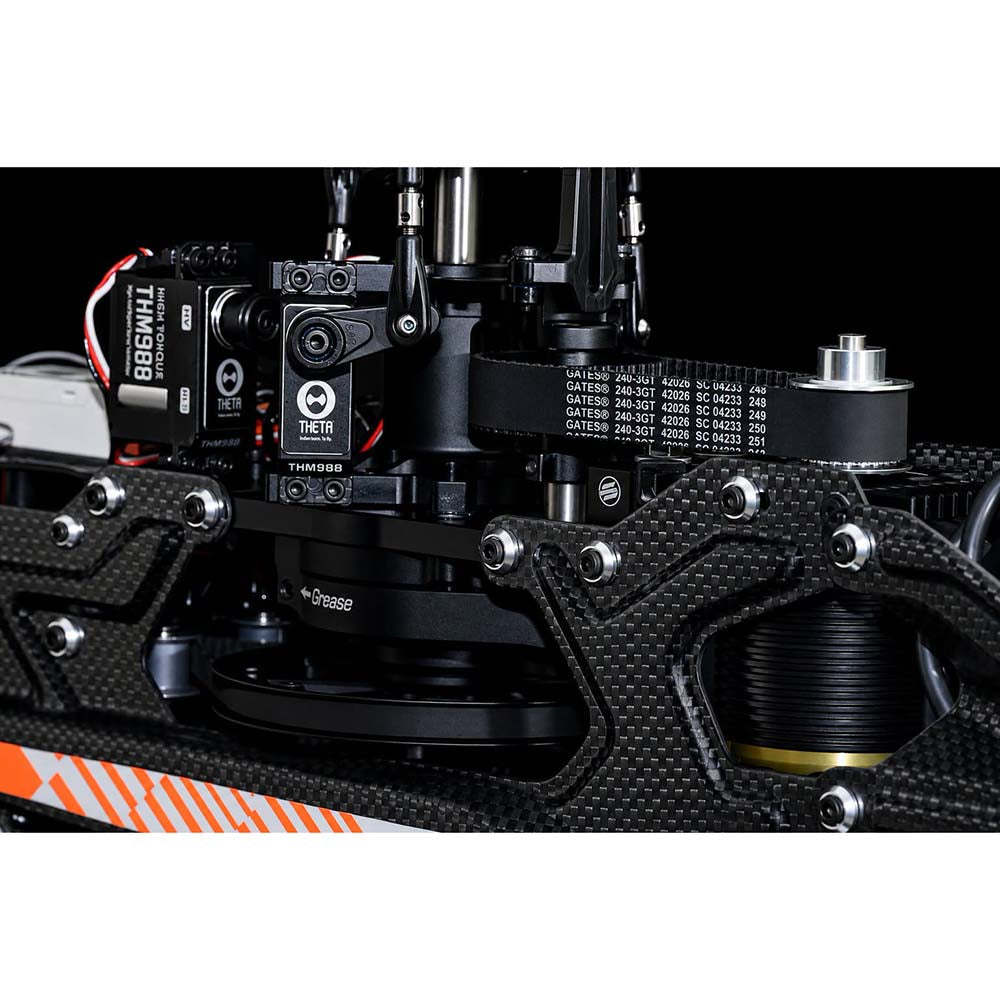

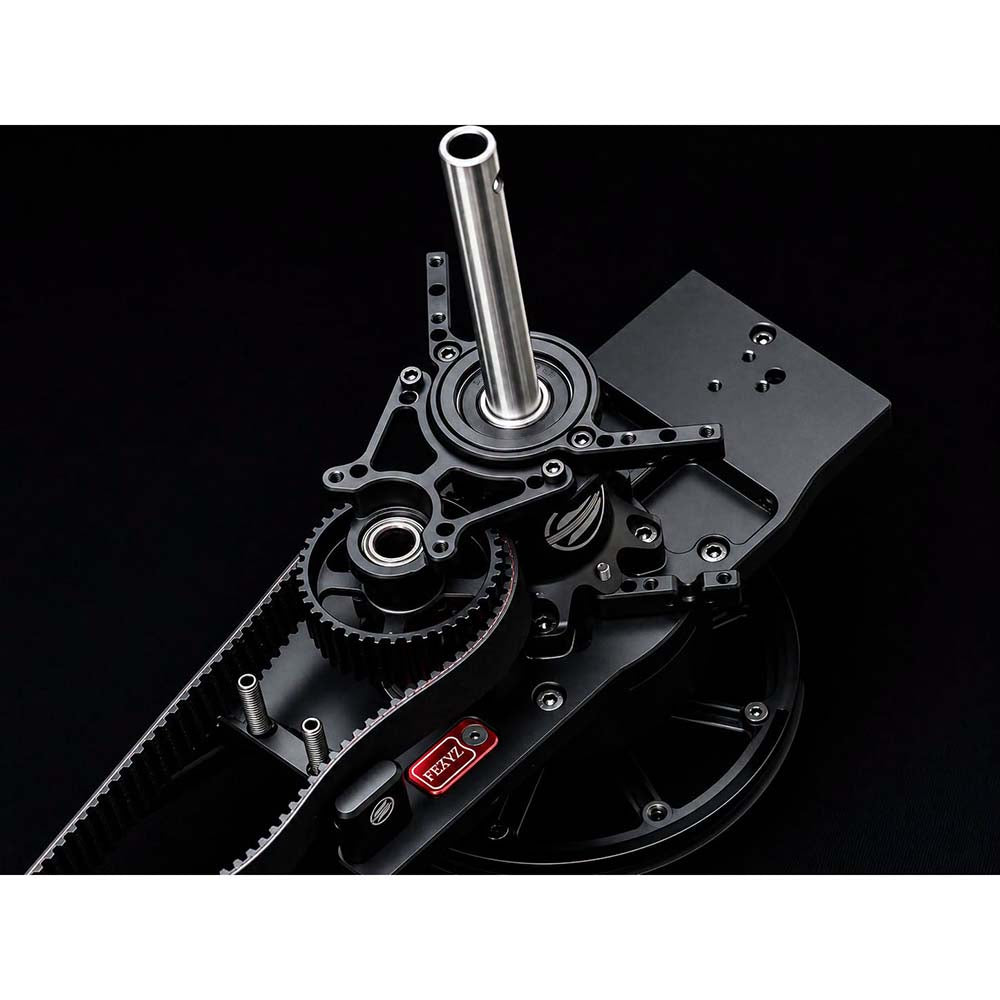

  • Transmission: Overbuilt “Eternal” Gearbox with oversized OWB directly on the main shaft
  • Main Shaft: 10 mm
  • Tail Shaft: 6 mm
  • Battery: Rear-loading tray system
  • Main Rotor Diameter: 1,242 mm with 580 mm blades
  • Main Blade Length: 550–590 mm
  • Cyclic Servos: 3x Mini, with 3x Standard option available
  • Tail Servo: Standard size
  • 6S Setup: Motor: 4025-1100 KV | Battery: 5,000–6,000 mAh
  • 12S Setup: Motor: 4025-560 KV | Battery: 3,000–4,000 mAh





Vendor: SAB Heli Division
SKU: SG590
Barcode: 8935254826088
Availability: In Stock
Product Type: Helicopter - Kit/Combo
Weight: 10.25 lb
  • iKON 2 Flybarless System w/o Bluetooth - HeliDirect

    iKON 2 Flybarless System w/o Bluetooth (Micro USB Cable Not Included)

    SKU : iKON2001
    NOTE:    IKON2 works with SPM4651T.  You will need to buy an SPMA3066 adapter to connect to the IKON2. (required also for RX firmware updates and to activate the warranty by registering the receiver on the My Spektrum website). If you want to make an adaptor...
    $169.14
    $198.99
    $169.14
  • TORQ BLS2208 Full Size HV Brushless Servo - HeliDirectTORQ BLS2208 Full Size HV Brushless Servo - HeliDirect

    TORQ BLS2208 Full Size HV Brushless Servo

    SKU : BLS2208
    TORQ BLS2208 Full Size HV Brushless Servo - Epic Power. Ultimate PrecisionExplore new worlds of precision & power with the TORQ BLS2208 Full Size HV Brushless Servo. Harnessing the precision and performance of brushless motor power, the TORQ BLS2208 Full Size HV Brushless Servo offers...
    $78.40
    $98.00
    $78.40
  • iKON 2 HD Flybarless System - HeliDirectiKON 2 HD Flybarless System - HeliDirect

    iKON 2 HD Flybarless System

    SKU : iKON2003
    NOTE:    IKON2 works with SPM4651T.  You will need to buy an SPMA3066 adapter to connect to the IKON2. (required also for RX firmware updates and to activate the warranty by registering the receiver on the My Spektrum website). If you want to make an adaptor by...
    $196.34
    $230.99
    $196.34
  • KST BLS805X 7.5KG Torque Metal Gear Servo For 550-700 Class Helicopter Tail - HeliDirectKST BLS805X 7.5KG Torque Metal Gear Servo For 550-700 Class Helicopter Tail - HeliDirect

    KST BLS805X 7.5KG Torque Metal Gear Servo For 550-700 Class Helicopter Tail

    SKU : BLS805X
    Description: Operating Speed: 0.048sec/60°@6.0VOperating Speed: 0.042sec/60°@7.4VOperating Speed: 0.039sec/60°@8.4VStall Torque: 7.5Kg.cm@8.4VStall Torque: 6.5Kg.cm@7.4V Stall Torque: 5.5Kg.cm@6.0VDimensions: 40.5*20*37mmOperating Voltage: 6.0V-8.4VOperating signal: 760us / 560HzMotor type: BrushlessBall Bearing: 2BBWeight: 70gUsage: for 550-700 Class Helicopter Tail Features: High quality brushless motorsHigh strength 2BB ball bearingsStandard rudder servo armMetal steering gear, long service lifeGood performance digital servos Package Included: 1 x KST BLS805X 7.5KG...
    $67.99
    $79.99
    $67.99
  • KST BLS915 V8.0 Brushless Standard ServoKST BLS915 V2.0 Brushless Standard Servo - HeliDirect

    KST BLS915 V8.0 Brushless Standard Servo

    SKU : BLS915V2
    KST BLS915 is now upgraded to V8.0 with programming box/USB link compatibility. The KST BLS915 V8 is a top class swashplate servo for 3D aerobatics. It is absolutely robust thanks to the aluminum housing and the improved steel gearbox. It offers the following advantages...
    $80.74
    $94.99
    $80.74
  • HobbyWing Platinum 150A V5.1 ESC (3-8S)HobbyWing Platinum 150A V5.1 ESC (3-8S)

    HobbyWing Platinum 150A V5.1 ESC (3-8S)

    SKU : 30203501
    User Manual > Manual_Platinum-150A-V5.1.pdf Product Catalog >  Platinum  150A V5.1 leafiets EN.pdf Overview: Synchronous Rectification Technology with multiple advantages The Platinum V5 Series features a new double-sided heat sink with additional "side windows" for better cooling. Multiple protections, Extra Safety: It has multiple protection functions, to...
    $199.99
    $199.99
  • Xnova Lightening Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft B - HeliDirect

    Xnova Lightning Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft B

    SKU : XN40251120L-B
    Xnova LIGHTNING 4025 series 520-600 size helicopters for extremely hard 3d flying on 6S up to 12S. ( KV related ) Xnova 4025-1120KV 1.5Y We have spent hours of testing to improve the very well established 4025 series. The result is an even better...
    $275.82
    $324.49
    $275.82
  • TORQ BLS1809M Mini HV Brushless Servo - HeliDirectTORQ BLS1809M Mini HV Brushless Servo - HeliDirect

    TORQ BLS1809M Mini HV Brushless Servo

    SKU : BLS1809M
    Features:- Brushless Motor Technology for the Ultimate Power & Control- Incredible Levels of Speed & Performance- Ultra Precise, High Resolution Control- Fully Replaceable Steel Gear Train for Maximum Strength- Excellent Thermal Dissipation via Finned 6061 Aluminum Case- 8.4V High Voltage Ready- Optimized for Heli,...
    $80.75
    $95.00
    $80.75
  • HobbyWing Platinum PRO 180A HV SBEC V5 ESC - HeliDirectHobbyWing Platinum PRO 180A HV SBEC V5 ESC - HeliDirect

    HobbyWing Platinum PRO 180A HV SBEC V5 ESC

    SKU : 30209103
    Specifications Firmware upgrade and programming via OTA Programmer or LCD program box  (purchase separately) Download Users_manual_Platinum 180A-V5.pdf
    $379.99
    $379.99
  • Spirit GT Flybarless System - HeliDirectSpirit GT Flybarless System - HeliDirect

    Spirit GT Flybarless System With USB Interface

    SKU : SPIRIT-GT
    Outstanding ARM M7 processor M7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features. This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need. It packs native telemetry support...
    $266.99
    $267.99
    $266.99
  • Xnova Lightening Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft A - HeliDirect

    Xnova Lightning Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft A

    SKU : XN40251120L-A
    Xnova LIGHTNING 4025 series 520-600 size helicopters for extremely hard 3d flying on 6S up to 12S. ( KV related ) Xnova 4025-1120KV 1.5Y We have spent hours of testing to improve the very well established 4025 series. The result is an even better...
    $275.82
    $324.49
    $275.82
  • RadioMaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver - Red
    ETA: End Of November

    RadioMaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver - Red

    SKU : HP0157.0114-RED
    The Nexus-XR revolutionizes helicopter flight controllers by integrating a cutting-edge ExpressLRS receiver with dual Semtech SX1281 2.4GHz transceivers. This built-in receiver delivers exceptional RF performance, superior range, reliability, and effortless setup. It eliminates the need for external receivers, simplifying installation and reducing weight.  At...
    $105.99
    $105.99
    ETA: End Of November

You may also like

Recently Viewed Products

  • 5 stars: 3 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
C

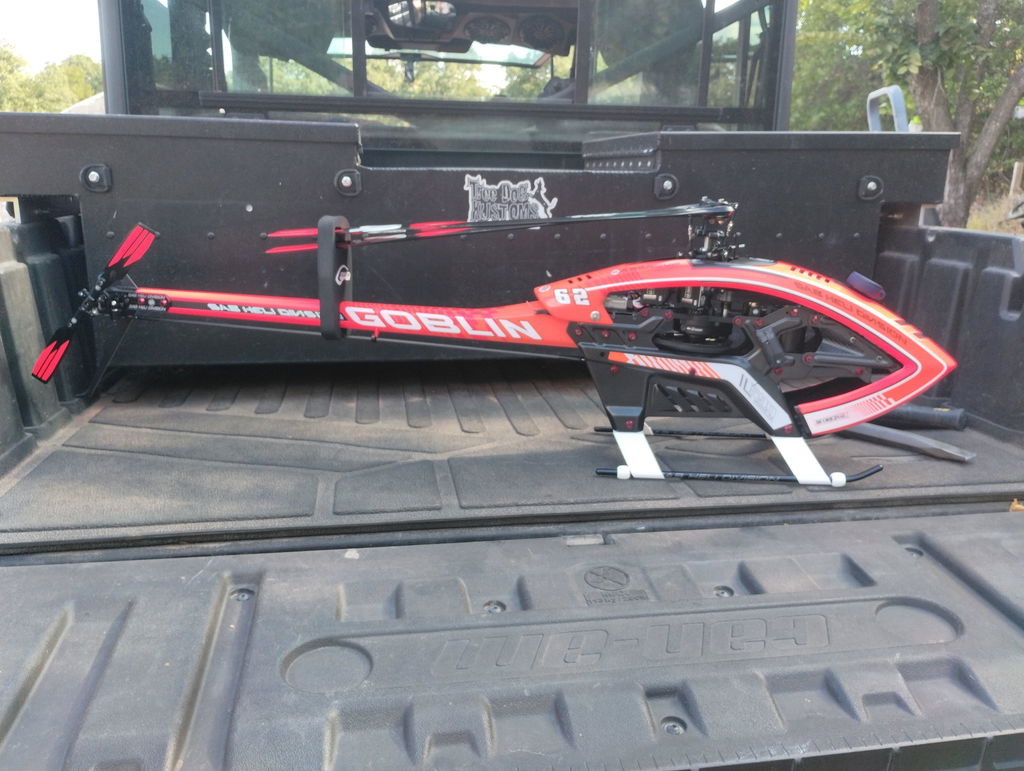

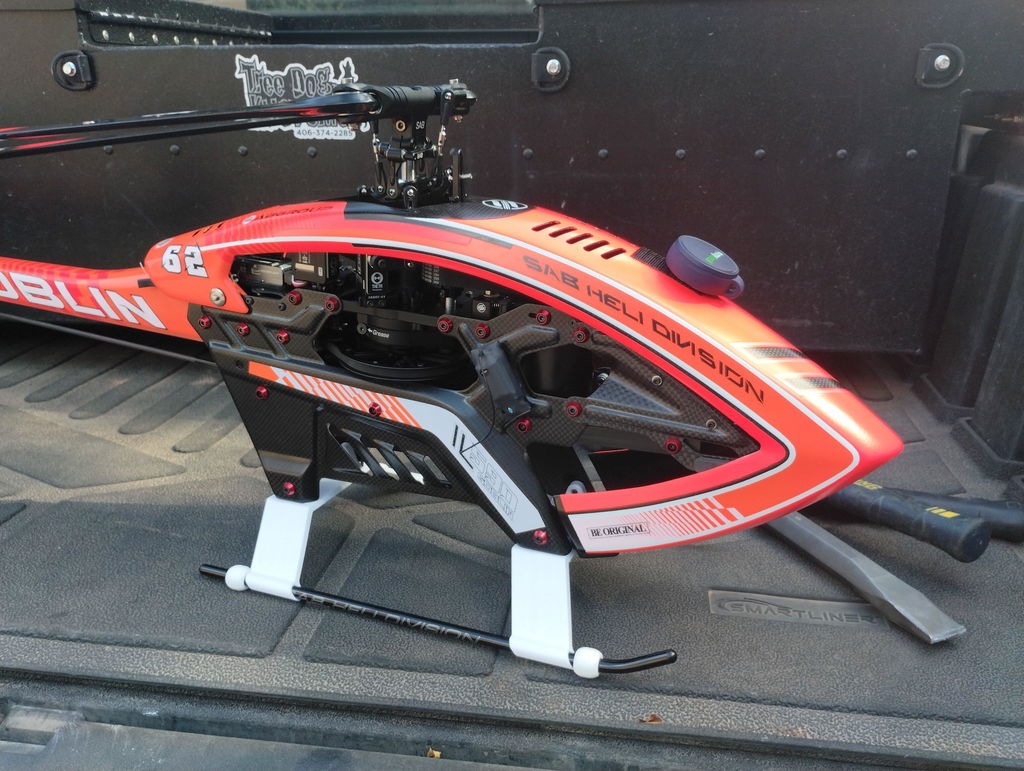

Charles B.
Best flying Bird from SAB

I was lucky enough to get a few of these early and it is by far my favorite SAB heli to date, at least of the ones that I have flown (SG766, SG760, SG762, SG525, SG426). It is amazing. The way it flies, the sound, the smoothness, it's all around the perfect size, weight, power to weight and overall handling. It's not too big, not too small. The transmission is great and is a huge improvement over the direct belt driven models.

The servo layout is great, and I find it makes the swash leveling easier and seems to contribute to the amazing flight characteristics. One of my favorite things is the flexibility on the battery. I am running three different ones: 6S, 8S and 12S. The 12s flies the best and is by far my favorite. I am running an 4025-1120 in the 6S and get about 7 minutes at 2100 RPM. Both the 8S and 12S are running 4030 motors (4030-800 and 4030-560) and I like this setup better than the 4025. I can easily notice the extra power and recommend the 4030.

I get over 11 minutes of mild 3D on the 12S with a 6000 mAh pack @2100 RPM. My 8S setup does not have the right motor pulley yet so I will not report those run times, but they are not much better than the 6S setup.

The finish, the carbon fiber, the panels, the way it is built, it's a solid machine. I have had 3 minor crashes so far, no parts have needed replacing which is great. I did blow out the bearings on the Pulley Bracket Assembly (H2497), but I attribute that to tightening the belt too much. I used a screwdriver to get it as tight as possible, but I believe the intent is to let the springs self tighten the motor mount before you tighten all the screws down. Either way, you can give it a little push and get it tight enough; don't use leverage to tighten it as this will put too much stress on the Pulley Bracket.

The 520 was so under built and that was my main complaint, this model is absolutely overbuilt, in every way. The tail setup is from the Piuma and is solid, though I wish I could find a D8 pulley with 18T or 19T so I could just setup the D8 tail instead of the D6. Nonetheless, it's a solid setup and I could not be happier.

Now the bad. The tail servo mounting hardware and mounting location are fabulous, but the screws that they give you with the kit (M25.x8mm) are not long enough to attach the plate to the tail. They do not thread into the nylon on the lock nuts inside the tail. Maybe all of my kits were just not right, but I had to use 10mm screws. Worse, the screws that attach the tail to the main frame, they are partially threaded. When I attached the tail it was fine, but after the first flight I noticed the tail was very loose. As you may know, the double sided tape that is used to attach the tail hardware tends to ooze around and over time you have to tighten the tail screws. The partially threaded screws did not have enough thread to tighten the tail! I had to use different screws with a much longer partial thread. Maybe this is by design, where the tail is suppose to flop around and be sloppy, but that is not for me so I swapped out the factory screws with ones that are the same length, but have longer threads.

There are some oddities in the instructions. The very first diagram has the bottom servo bracket upside down (from the way it should be), which you can see in the second image of the instructions where it is correctly depicted. I had no idea how far to screw down the motor mount set screws (pg 6) and there are three sets of springs included for the motor assembly, but no details on which set you should use. On page 21, the M3 screws that go through the tail fin, into the tail case spacer, they should probably be M3x10mm not M3x8mm.

Overall, I give this guy a 10/10. It is amazing. I will never fly the 520 again. The 10mm shaft, the battery flexibility, the handling / flight characteristics, and the overbuild of the model are all key points for me. I will be flying this bird for many years to come! Great job SAB!

A
Aaron B.
SAB IL Goblin 590 pro

This is an amazing helicopter! This is my first SAB, and the engineering on this heli is amazing! Great, perfect size heli

B
Bill W.
SAB iLGoblin 590

SAB kits are very well organized and easy builds. I haven’t started it yet (waiting for the motor) but I look forward to building and flying this helicopter.
