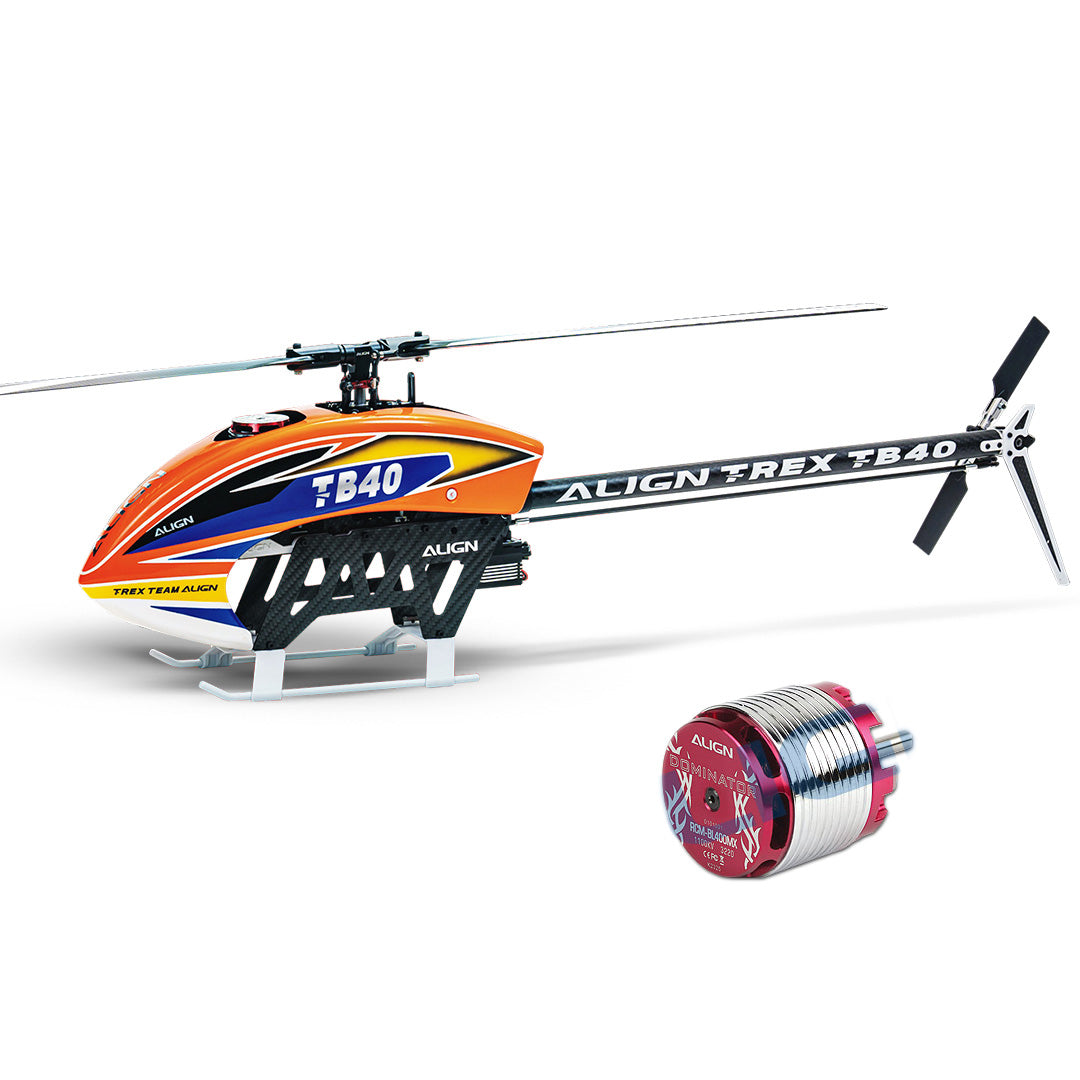

Align TB40 Helicopter Kit with 400MX (1100kv) Motor
Standard equipment
●400MX Brushless Motor(1100KV/3220) x 1
Specification
●Length: 747mm
●Height: 223mm
●Width: 103mm
●Main Blade Length: 380mm
●Main Rotor Diameter: 851mm
●Tail Length: 70mm
●Tail Rotor Diameter: 188mm
●400MX Brushless Motor(1100KV/3220)
●Motor Belt Pulley: 22T
●Drive Gear Ratio: 6.44:1:4.04
●Max RPM(approx.): 3400RPM
●Frame Weight(Batteries not included): Approx. 953g
Accessories
●TB40 Kit Set x 1 set
●380 Carbon Fiber Blades x 1 set
●70 Carbon Fiber Tail Blades x 1 set
●400MX Brushless Motor(1100KV/3220) x 1
Radio transmitter and electronic equipment required for assembly
●Receiver(6-channel or more)
●RCC-6CX Intelligent Balance Charger
●22.2V 6S 1850~2200mAh Li-Po Battery
●Digital Pitch Gauge
●Multi-function Tester
●Flybarless System x 1
●CCPM Brushless Servo x 3
●Rudder Brushless Servo x 1
●Brushless ESC x 1
Type: | |
---|---|
Vendor: | |
SKU: |
RH40E06XT |
Weight: |
4.25 lb |
Product Spare Parts
Electronics
Typical (modern) Align build. I remember the old TRex 600 days with a quality manual showing exploded views and part numbers. Not the case anymore with photocopied low-resolution manual but it's good enough with some intuition. As others have noted, there seems to be a lot of drag in the drivetrain, likely from high belt tension. Autorotations will not be its strong suit but it seems efficient enough from the motor direction to not draw excessive amps. One disappointment was even at the "loosest" setting of the boom placement, I could not get the tail belt loose enough to assemble the tail. I actually had to file the boom mounting holes about 1mm towards the nose to allow the boom to slide forward enough the assemble the tail and not be overly tight. Hopefully this will be corrected. It looks and flies great otherwise.
The Align TB40 is a very nice helicopter kit and is reasonably priced. The parts in the kit were nicely machined/molded. The kit was easy to assemble. The instruction were nicely done. It took me more time to install the electronics and get them working properly than it did to assemble the kit.
Really nice
package was open seal was broken !! tamper..
I have the 450, 470, and this TB40 is by far the best Heli so far. The build was easy nothing was missing together as expected. Hello direct was great to work with fast shipping.
These guys are Always on top of their game!! Super fast Superior service. Wouldn’t go anywhere else!!!!
Man !!! This heli really rocks!!! Is a great heli and really solid! I’m soo happy with the purchase! Thanks again helidirect for your fast shipping and great service!!😎
So the build was pretty easy and straightforward. Wish they would've made the airframe with more options to install different electrics for FBLs and Receivers instead of just the upper plate in the back. Other than that it's a very nice Heli so far.
