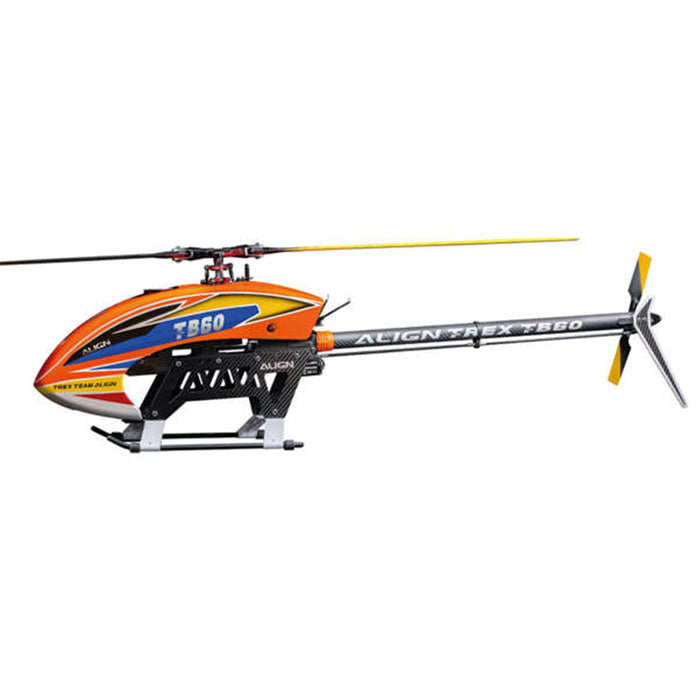

Align TB60 Helicopter

Vendor: Align
|
SKU: RH60E31XT
Availability: In Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$593.99
$593.99
Version: Kit Only
The order quantity exceeds the stock!
Align TB60 Helicopter Combo (6S) - HeliDirect

Align TB60 Helicopter

$593.99

Align TB60 Helicopter

$593.99
Version: Kit Only

Related Products



Standard equipment

Combo (6S):

●RCE-BL150A Brushless ESC x 1
●750MX Brushless Motor(930KV/4236) x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●MICROBEAST² Flybarless System x 1

Combo (12S):

●RCE-BL180A Brushless ESC x 1
●750MX Brushless Motor(480KV/4236) x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1



Specification

●Length: 1218mm
●Height: 353mm
●Width: 183mm
●Main Blade Length: 600mm
●Main Rotor Diameter: 1339mm
●Tail Length: 95mm
●Tail Rotor Diameter: 253mm
●Motor Belt Pulley: 23T
●Belt Pulley: 44T
●Front Drive Main Shaft: 15T
●Main Drive Gear: 62T
●Autorotation Tail Drive Gear: 28T
●Tail Drive Gear: 23T
●Drive Gear Ratio: 7.89:1:5.04
●Max RPM(approx.): 2300-2400RPM
●Weight(w/o Batteies): Approx. 2.9kg


Accessories

●TB60 Kit Set x 1 set
●600 Carbon Fiber Blades x 1 set
●95 Carbon Fiber Tail Blades x 1 set
●750MX Brushless Motor(930KV/4236) x 1 (6S Combo)
●
750MX Brushless Motor(480KV/4236) x 1 (12S Combo)
●DS830M High Voltage Brushless Servo x 3 (6S/12S Combo)
●DS835M High Voltage Brushless Servo x 1 (6S/12S Combo)
●RCE-BL150A Brushless ESC x 1 (6S Combo)
●
RCE-BL180A Brushless ESC x 1 (12S Combo)
●MICROBEAST² Flybarless System x 1 (6S Combo)
●Lube Pack x 1


Radio transmitter and electronic equipment required for assembly

●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more) or Remoet Receiver
●RCC-6CX Intelligent Balance Charger
●6S Li-Po 2600 ~ 5200mAh x 1 (suggest 3300mAh or above, combines power and endurance) (Combo 6S)
●
6S Li-Po 2600 ~ 3300mAh x 2 (3300mAh suggestion) (Combo 12S)
●Digital Pitch Gauge
●Multi-function Tester
●Flybarless System (Kit Only / 12S Combo)
●Brushless Motor x 1 (Kit Only)
●CCPM Brushless Servo x 3 (Kit Only)
●Rudder Brushless Servo x 1 (Kit Only)
●Brushless ESC x 1 (Kit Only)

Vendor: Align
SKU: RH60E31XT
Barcode: 4713413733088
Availability: In Stock
Product Type: Helicopter - Kit/Combo
Weight: 8.51 lb
  • Align Swashplate Leveler - Trex 550 / 600 / 700 / 800 - HeliDirect

    Align Swashplate Leveler - Trex 550 / 600 / 700 / 800

    SKU : H70118T
    Product: Illustration (T-REX 600 all class machine): Illustration (T-REX 700 all class machine): Illustration: T-REX 550/600 T-REX 700 Package: Instruction: Specification: ●Specifically designed for 550-800 class helicopters, this swashplate leveler allows for precise swashplate level adjustment, improving helicopter hover stability and flight performance.●Tailored specifically...
    $10.99
    $10.99
  • ALIGN Landing Skid Nut Set - Trex 550 / Trex 600 / Trex 700 Series - HeliDirect

    ALIGN Landing Skid Nut Set - Trex 550 / Trex 600 / Trex 700 Series

    SKU : H60064BT
    Product: Package: Instruction: Specification: ●Use for T-REX 550X/550E/600E/600 Nitro/700E/700 Nitro/800E/800E F3C。 ●Material: silica gel●Quantity:4 pcs●Weight:1.44g/pcs
    $4.99
    $4.99
  • Align Hook and Loop Tape (Velcro) - Trex 500 /  550E / 600 / 700 / 800 - HeliDirect

    Align Hook and Loop Tape (Velcro) - Trex 500 / 550E / 600 / 700 / 800

    SKU : H60129T
    Product: Package: Mounting Illustration: ●Use Hook and Loop Tape, tape the Hook side(hooked) on the battery mounting plate and the Loop side(fuzzy) on the battery to fix the battery and avoid any slip. Instruction: Specification: ●Tape the Hook side (hooked) on the battery mounting...
    $3.99
    $3.99
  • ALIGN Skid Pipe /silver HN7049QF - Trex 700 - HeliDirect

    ALIGN Skid Pipe /silver HN7049QF - Trex 700

    SKU : HN7049QFT
    Product: Package: Instruction: Specification: ●6061-T6 Aluminum alloy material。●Use for T-REX 700. ●Skid pipe x 2(Φ9x325mm)●Skid pipe end cap x 4
    $6.99
    $6.99
  • Align T-REX250-500 Hardware Bag - HeliDirect

    Align T-REX250-500 Hardware Bag

    SKU : H45168T
    Product 1: Package:   Instruction: Specification: ●Suitable for all 250 class machines.●Suitable for all 450 class machines.●Suitable for all 470 class machines.●Suitable for all 500 class machines.
    $17.99
    $17.99
  • Align TB70 Linkage Rod Set - HeliDirect

    Align TB70 Linkage Rod Set

    SKU : HB70Z001XXT
    Instruction: Content: ●Suitable for TB70. ●TB70 Linkage Rod A × 2(7.5x59.5mm)●TB70 Linkage Rod B × 3(7.5x51.1mm)
    $17.99
    $17.99
  • Align Skid Pipe - Trex 700NP - HeliDirect

    Align Skid Pipe - Trex 700NP

    SKU : HN7049T
    Product: Package: Instruction: Specification: ●Use for T-REX 700 Nitro Pro. ●Skid pipe x 2(Φ9x325mm)●Skid pipe end cap x 4
    $6.99
    $6.99
  • Align TB70/TB60 Landing Skid - HeliDirect

    Align TB70/TB60 Landing Skid

    SKU : HB70F001AXT
    Product: Appearance: Package: Instruction: Specification: ●Suitable for TB60 / TB70.●Newly designed Landing Skid is light weight, impact-resistant and incorporates as rib structure with multi-point locking effectively improving stability. ●TB70 Landing Skid x 2
    $10.99
    $10.99
  • T-REX 550-700 and 800Hardware Bag - HeliDirect

    T-REX 550-700 and 800Hardware Bag

    SKU : H70109T
    Package: Instruction: Specification: ●Suitable for all 550 class machines.●Suitable for all 600 class machines.●Suitable for all 700 class machines.
    $28.99
    $28.99
  • ALIGN F5-10M Tail Rotor Thrust Bearings - 5x10x4mm - HeliDirect

    ALIGN F5-10M Tail Rotor Thrust Bearings - 5x10x4mm

    SKU : HN6125T
    Product: Package:   Instruction: Specification: ●Use for T-REX 470L/550X/550E/600E/600N/700E/700N . ●Thrust bearing F5-10M x 2(Φ5xΦ10x4mm)
    $9.99
    $9.99
  • ALIGN Carbon Servo Plate / Servo Spacer Set - T-REX 550 / 600 / 700 Series - HeliDirect

    ALIGN Carbon Servo Plate / Servo Spacer Set - T-REX 550 / 600 / 700 Series

    SKU : H60074AT
    Product: Package: Instruction: Specification: ●Use for T-REX 550 / 600 / 700 Series. ●Carbon servo plate(19.8x7x1.2mm) x 8●Weight:1.6g
    $9.99
    $9.99
  • Align TB60 Slant Thread Main Drive Gear/62T - HeliDirect

    Align TB60 Slant Thread Main Drive Gear/62T

    SKU : HB60G001XXT
    Package: Instruction: Content: ●Suitable for TB60.●The structure is easy to disassemble and maintain, and the high-strength and lightweight main gear only needs to loosen one screw to remove it. ●TB60 Slant Thread Main Drive Gear/62T x 2●Shaft Sleeve x 2(Φ10xΦ13.4x27.2mm)
    $20.99
    $20.99
  • iKON 2 Flybarless System w/o Bluetooth - HeliDirect

    iKON 2 Flybarless System w/o Bluetooth (Micro USB Cable Not Included)

    SKU : iKON2001
    NOTE:    IKON2 works with SPM4651T.  You will need to buy an SPMA3066 adapter to connect to the IKON2. (required also for RX firmware updates and to activate the warranty by registering the receiver on the My Spektrum website). If you want to make an adaptor...
    $169.14
    $198.99
    $169.14
  • TORQ BLS2208 Full Size HV Brushless Servo - HeliDirectTORQ BLS2208 Full Size HV Brushless Servo - HeliDirect

    TORQ BLS2208 Full Size HV Brushless Servo

    SKU : BLS2208
    TORQ BLS2208 Full Size HV Brushless Servo - Epic Power. Ultimate PrecisionExplore new worlds of precision & power with the TORQ BLS2208 Full Size HV Brushless Servo. Harnessing the precision and performance of brushless motor power, the TORQ BLS2208 Full Size HV Brushless Servo offers...
    $78.40
    $98.00
    $78.40
  • iKON 2 HD Flybarless System - HeliDirectiKON 2 HD Flybarless System - HeliDirect

    iKON 2 HD Flybarless System

    SKU : iKON2003
    NOTE:    IKON2 works with SPM4651T.  You will need to buy an SPMA3066 adapter to connect to the IKON2. (required also for RX firmware updates and to activate the warranty by registering the receiver on the My Spektrum website). If you want to make an adaptor by...
    $196.34
    $230.99
    $196.34
  • KST BLS805X 7.5KG Torque Metal Gear Servo For 550-700 Class Helicopter Tail - HeliDirectKST BLS805X 7.5KG Torque Metal Gear Servo For 550-700 Class Helicopter Tail - HeliDirect

    KST BLS805X 7.5KG Torque Metal Gear Servo For 550-700 Class Helicopter Tail

    SKU : BLS805X
    Description: Operating Speed: 0.048sec/60°@6.0VOperating Speed: 0.042sec/60°@7.4VOperating Speed: 0.039sec/60°@8.4VStall Torque: 7.5Kg.cm@8.4VStall Torque: 6.5Kg.cm@7.4V Stall Torque: 5.5Kg.cm@6.0VDimensions: 40.5*20*37mmOperating Voltage: 6.0V-8.4VOperating signal: 760us / 560HzMotor type: BrushlessBall Bearing: 2BBWeight: 70gUsage: for 550-700 Class Helicopter Tail Features: High quality brushless motorsHigh strength 2BB ball bearingsStandard rudder servo armMetal steering gear, long service lifeGood performance digital servos Package Included: 1 x KST BLS805X 7.5KG...
    $67.99
    $79.99
    $67.99
  • KST BLS915 V8.0 Brushless Standard ServoKST BLS915 V2.0 Brushless Standard Servo - HeliDirect

    KST BLS915 V8.0 Brushless Standard Servo

    SKU : BLS915V2
    KST BLS915 is now upgraded to V8.0 with programming box/USB link compatibility. The KST BLS915 V8 is a top class swashplate servo for 3D aerobatics. It is absolutely robust thanks to the aluminum housing and the improved steel gearbox. It offers the following advantages...
    $80.74
    $94.99
    $80.74
  • HobbyWing Platinum 150A V5.1 ESC (3-8S)HobbyWing Platinum 150A V5.1 ESC (3-8S)

    HobbyWing Platinum 150A V5.1 ESC (3-8S)

    SKU : 30203501
    User Manual > Manual_Platinum-150A-V5.1.pdf Product Catalog >  Platinum  150A V5.1 leafiets EN.pdf Overview: Synchronous Rectification Technology with multiple advantages The Platinum V5 Series features a new double-sided heat sink with additional "side windows" for better cooling. Multiple protections, Extra Safety: It has multiple protection functions, to...
    $199.99
    $199.99
  • Xnova Lightening Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft B - HeliDirect

    Xnova Lightning Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft B

    SKU : XN40251120L-B
    Xnova LIGHTNING 4025 series 520-600 size helicopters for extremely hard 3d flying on 6S up to 12S. ( KV related ) Xnova 4025-1120KV 1.5Y We have spent hours of testing to improve the very well established 4025 series. The result is an even better...
    $275.82
    $324.49
    $275.82
  • TORQ BLS1809M Mini HV Brushless Servo - HeliDirectTORQ BLS1809M Mini HV Brushless Servo - HeliDirect

    TORQ BLS1809M Mini HV Brushless Servo

    SKU : BLS1809M
    Features:- Brushless Motor Technology for the Ultimate Power & Control- Incredible Levels of Speed & Performance- Ultra Precise, High Resolution Control- Fully Replaceable Steel Gear Train for Maximum Strength- Excellent Thermal Dissipation via Finned 6061 Aluminum Case- 8.4V High Voltage Ready- Optimized for Heli,...
    $80.75
    $95.00
    $80.75
  • HobbyWing Platinum PRO 180A HV SBEC V5 ESC - HeliDirectHobbyWing Platinum PRO 180A HV SBEC V5 ESC - HeliDirect

    HobbyWing Platinum PRO 180A HV SBEC V5 ESC

    SKU : 30209103
    Specifications Firmware upgrade and programming via OTA Programmer or LCD program box  (purchase separately) Download Users_manual_Platinum 180A-V5.pdf
    $379.99
    $379.99
  • Spirit GT Flybarless System - HeliDirectSpirit GT Flybarless System - HeliDirect

    Spirit GT Flybarless System With USB Interface

    SKU : SPIRIT-GT
    Outstanding ARM M7 processor M7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features. This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need. It packs native telemetry support...
    $266.99
    $267.99
    $266.99
  • Xnova Lightening Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft A - HeliDirect

    Xnova Lightning Outrunner Motor 4025 - 1120KV 1.5Y For RC Helicopter Shaft A

    SKU : XN40251120L-A
    Xnova LIGHTNING 4025 series 520-600 size helicopters for extremely hard 3d flying on 6S up to 12S. ( KV related ) Xnova 4025-1120KV 1.5Y We have spent hours of testing to improve the very well established 4025 series. The result is an even better...
    $275.82
    $324.49
    $275.82
  • RadioMaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver - Red
    ETA: End Of November

    RadioMaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver - Red

    SKU : HP0157.0114-RED
    The Nexus-XR revolutionizes helicopter flight controllers by integrating a cutting-edge ExpressLRS receiver with dual Semtech SX1281 2.4GHz transceivers. This built-in receiver delivers exceptional RF performance, superior range, reliability, and effortless setup. It eliminates the need for external receivers, simplifying installation and reducing weight.  At...
    $105.99
    $105.99
    ETA: End Of November

You may also like

Recently Viewed Products

  • 5 stars: 17 (81%)
  • 4 stars: 0 (0%)
  • 3 stars: 2 (10%)
  • 2 stars: 1 (5%)
  • 1 star: 1 (5%)
M
Michael C.
Awesome heli

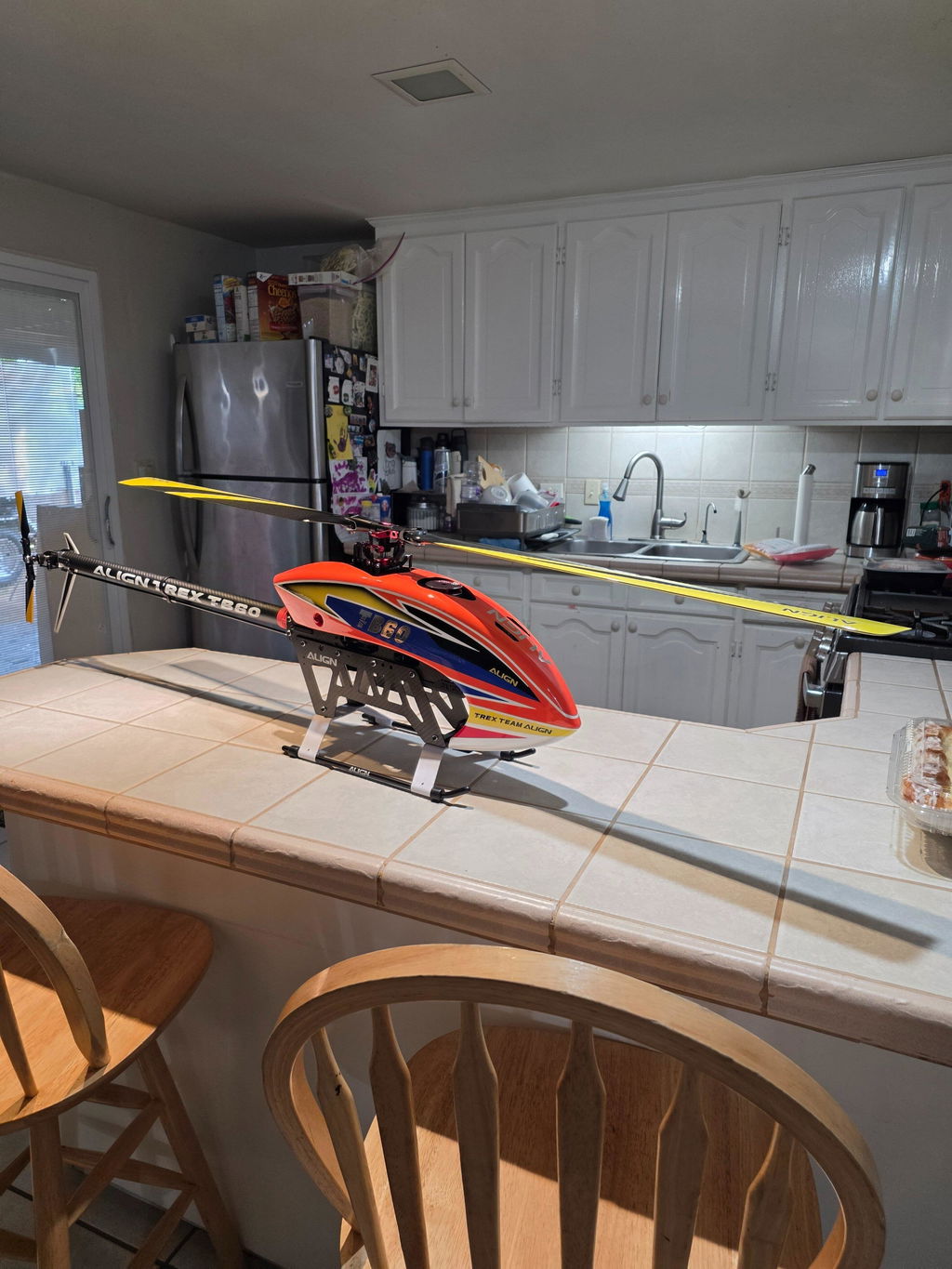

It's been over 30 years since I last touched a helicopter and honestly I was pretty surprised how fast and well this one was put together. Delivery of this item was exceptional and I can't complain. As for how this well this heli performs I am note than satisfied as I'm not a 3D pilot and just enjoy the simplicity of scale flt. This helicopter is great 👍

Judge.me YouTube video placeholder
N
Nick R.
Had this heli 9 days. Oneway/clutch failed

Upon receiving the helicopter doing the build and getting time to test fly. Took 9 days.
Promptly contacted HD about it. Did all the required information and steps. Can't return after 7 days. Now warranty. Said give them 5 days. Its been that no parts for the failed clutch. Assume Align has 100 % perfect manufacturing. And there is no warranty on kit quality. Or HD standing behind what they sell anymore. This was not the case 10 years ago.

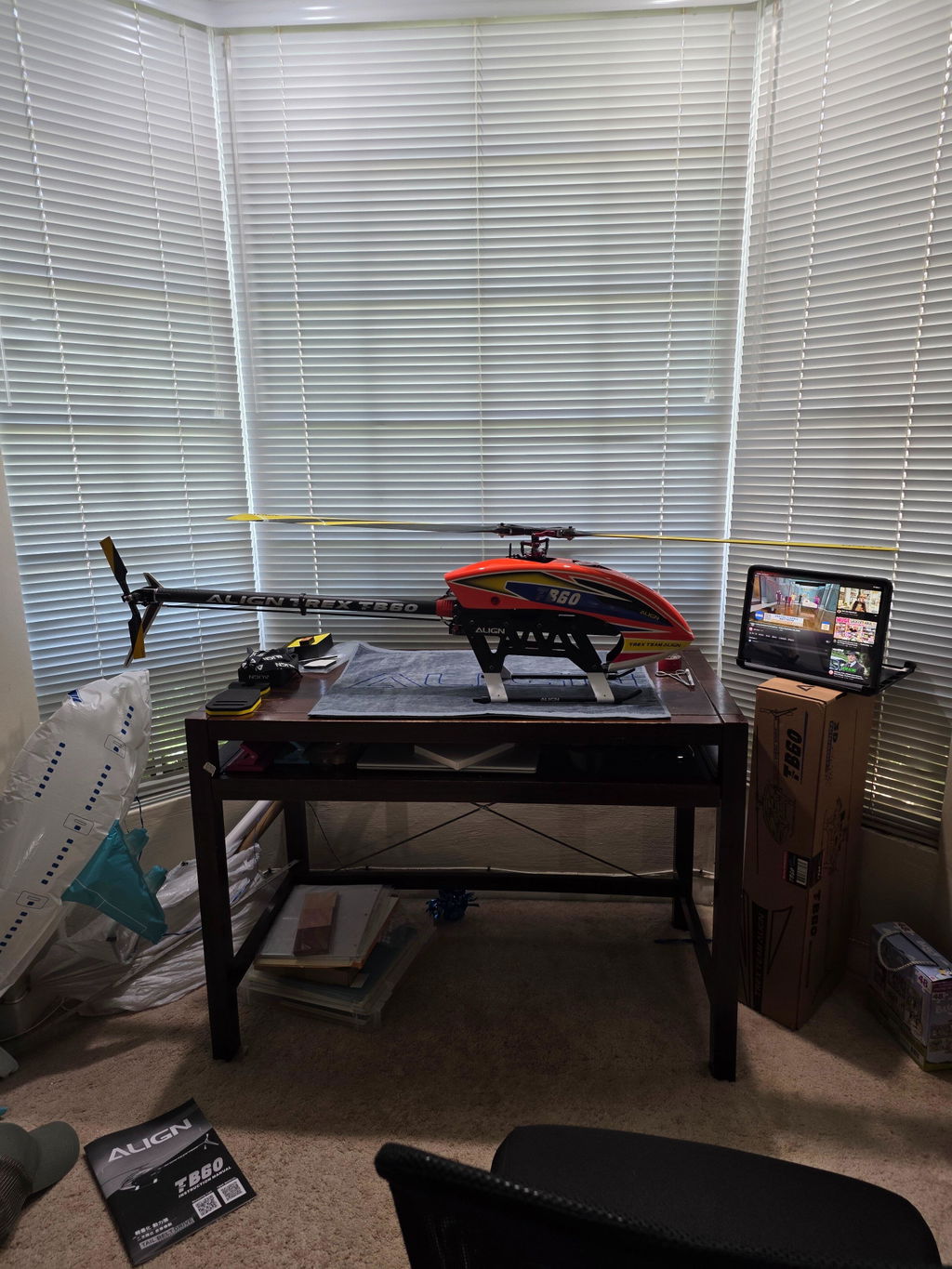

1 pic. completed build. Day maybe 6.
