SAB Goblin Kraken 580 Yellow/Blue

Vendor: SAB Heli Division
|
SKU: SG580
Availability: Back-Order
Price Match Guarantee
$877.80
$877.80
The order quantity exceeds the stock!
SAB Goblin Kraken 580 Yellow/Blue - HeliDirect

SAB Goblin Kraken 580 Yellow/Blue

$877.80
SAB Goblin Kraken 580 Yellow/Blue - HeliDirect
SAB Goblin Kraken 580 Yellow/Blue - HeliDirect
SAB Goblin Kraken 580 Yellow/Blue - HeliDirect
SAB Goblin Kraken 580 Yellow/Blue - HeliDirect
SAB Goblin Kraken 580 Yellow/Blue - HeliDirect
SAB Goblin Kraken 580 Yellow/Blue - HeliDirect
SAB Goblin Kraken 580 Yellow/Blue - HeliDirect
SAB Goblin Kraken 580 Yellow/Blue - HeliDirect

SAB Goblin Kraken 580 Yellow/Blue

$877.80

Related Products

Description
DOWN LOAD MANUAL : HERE

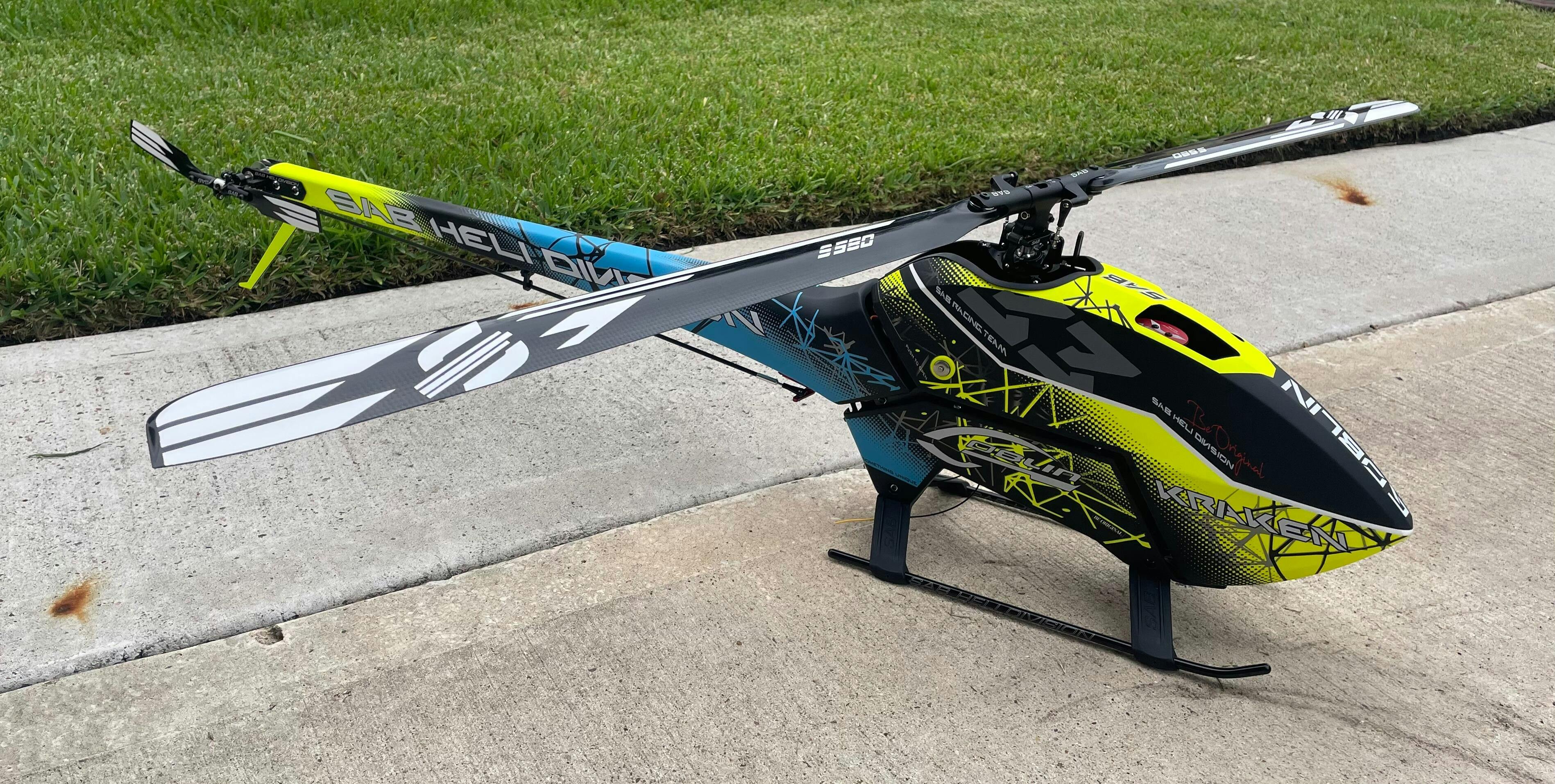

The all new and innovative mid size Kraken! It features very similar design aspects with its bigger brother, the Kraken 700, all in 580 sized package!

Main and tail blades included.
To be able to use with fullsize cyclic servo, you need to order these parts :
FEATURES
  • This is the first mid-size Goblin to accept up to 600mm rotor blades!
  • The Kraken 580 works amazingly well with mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately. The parts can already be ordered with KITS to have it for release date.
  • The Kraken 580 utilizes the same battery trays as the Kraken 700
  • Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft).

TECHNICAL SPECIFICATIONS

  • AIRFRAME weight: 1760gr ( with blades, no battery, no electronics )
  • Main blade length: 550mm to 600mm
  • Tail blade length: 95 to 105 mm
  • Main rotor diameter: 1270 mm (with 570 mm blades included)
  • Tail rotor diameter: 260 mm (with 95 mm tail blades included)
  • Cyclic Servos: mini size 35 mm (standard size 40mm option )
  • Tail Servo: standard size 40mm.
  • Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)
  • Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )
  • Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv
  • Typical speed controller: 6S 120-140 A, 12S 100-130A
  • Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.

Suggested Configuration:

- Budget Set up

ESC : HobbyWing 120LV / HobbyWing130HV /u00a0Tribunus 120LV / Tribunus 130HV

Motor : Scorpion 4025-1100KV / Scorpion 4025-520KVu00a0

Cyclic Servo : Torq CL1208 / KST X15-1208 / Torq BLS2208 / KST BLS815V2 / KST BLS915 V2

Tail Servo : Torq BLS0704T / KST BLS805X

u00a0

-u00a0Fancyu00a0Set up

ESC :u00a0Kolibri 140LVu00a0/ Kolibri 140HV / YGE 135LVT / YGE 135HVT

Motor :u00a0 Pyro 650-103L / Pyro 650-53L /u00a0Xnova 4025-1120KV /u00a0Xnova 4025-560KV

Cyclic Servo :u00a0Xpertu00a0MM-3301-HV / Xpert KD1

Tail Servo :u00a0Xpert KD1Tu00a0

Read More
Additional Information
Vendor: SAB Heli Division
SKU: SG580
Barcode: 8935254814955
Availability: Out Of Stock
Product Type: Helicopter Kit
Weight: 30.0 lb
