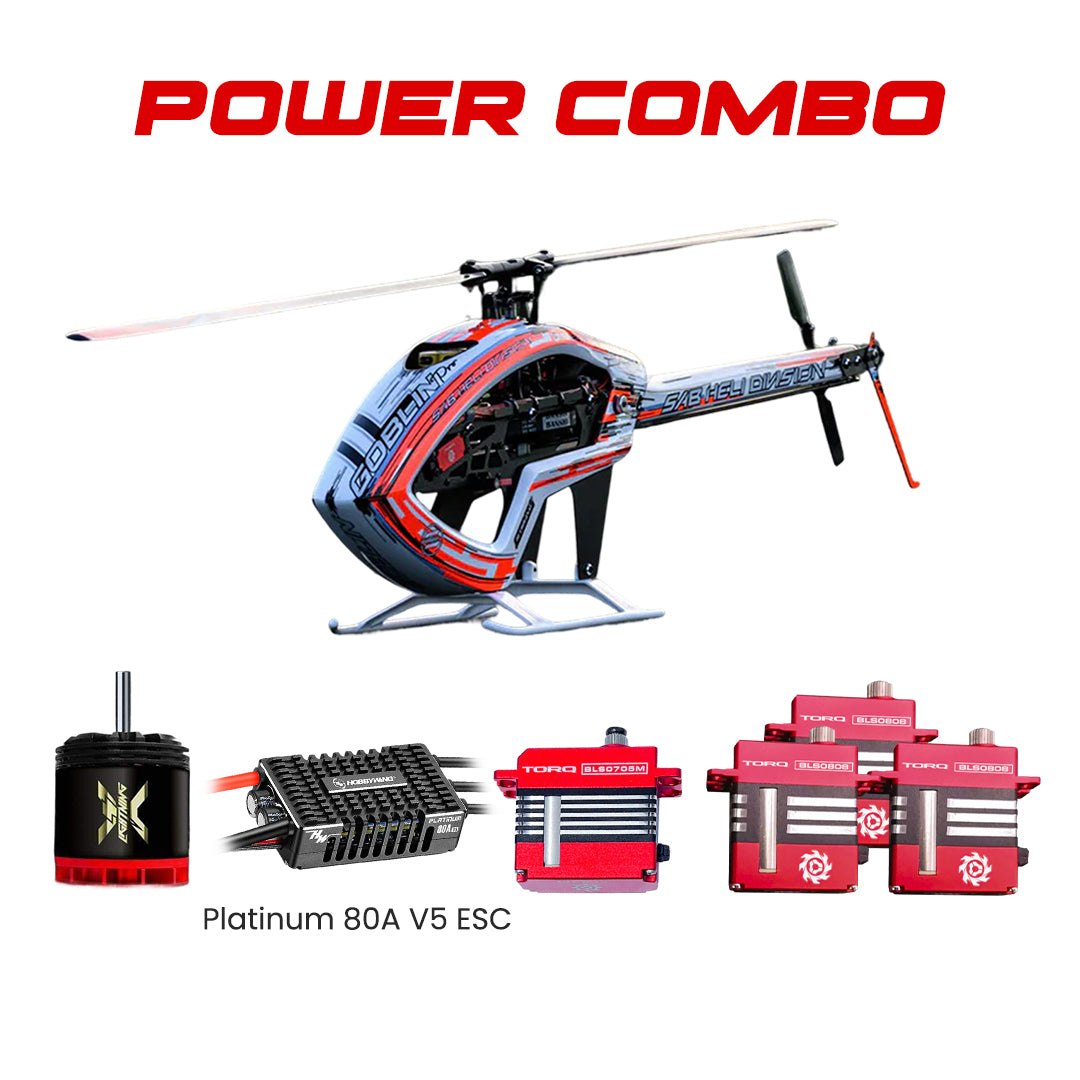

SAB ILGoblin PRO 420 Helicopter Kit (White) - With Main & Tail Blades Power Combo HobbyWing ESC, Xnova Motor & TORQ Servos

*** Combo Packge Includes:
1 * SAB ILGoblin PRO 420 Helicopter Kit - With Main & Tail Blades - White
1pcs * HobbyWing Platinum 80A V5 ESC (3-8S)
1pcs * Xnova Lightning 3220-950KV Shaft A
1pcs * TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo
3pcs * Torq BLS0808 Brushless Micro HV Cyclic Servo

1. SAB ILGoblin PRO 420 Helicopter Kit - With Main & Tail Blades - White

- SAB was the first to introduce the Goblin 420 with a Direct Drive motor, opening up new possibilities in this class.

- Later, to maximize the power-to-weight ratio, SAB developed the belt-driven version: lighter, more powerful, and even more extreme.

- Now, SAB raises the bar once again by combining technology and design.

- Inspired by the iconic lines of the best-selling SG760, the new ilGOBLIN 420 brings the same stunning appeal to the 420 class.

*** Performance, style, innovation:

- Main rotor diameter 935mm (with 420mm blades)

- Main blade length 380 to 420mm

- Tail rotor diameter 194mm (with 72mm tail blades)

- Tail blade length 60 to 72mm

- Micro size cyclic servos (23mm)

- Mini size tail servo (35mm)

- Maximum battery size: 140x40x50mm (max)

- Recommended battery: 6s 2200/2700 mAh

- Recommended motor: 3020 – 3215 – 3220

- Recommended motor KV: 900-1000 KV

- Recommended battery weight: 350-420 grams

- Recommended ESC: 60A (70-80A is required only for hard 3D flight with temperatures above 30°C)

- Tail rotor ratio 4:1

- 8mm main shaft

- 5mm tail shaft

*** ilGoblin 420 main features:

- Quick release battery tray with integrated connectors

- Zytel HTN resin blade grip arms (sacrificial)

- It is not necessary to remove the canopy to replace the batteries.

- Main ratio 1:5/6

- Tail ratio 4:1

*** Package includes:

ILGoblin Pro 420 Helicopter Kit

S420-Orange Main Blades

S72-Orange Tail Blades

2. HobbyWing Platinum 80A V5 ESC (3-8S)

Overview:

- Synchronous Rectification Technology with multiple advantages

- The Platinum V5 Series features a new double-sided heat sink with additional "side windows" for better cooling.

- Multiple protections, Extra Safety: It has multiple protection functions, to effectively prolonging the lifespan of the ESC.

- Built-in 12V Switch BEC for greater output capability:  With an instantaneous high current and a built-in 12V programmable BEC, the maximum output voltage is 12V (adjustable from 5-12V) and the maximum output current is up to 25A. The high-power BEC features an anti-reverse circuit, allowing it to be used in parallel with external batteries, providing double protection.

- Constant Speed Performance Upgrade, Ultimate Flight Experience; The 32-bit processor combined with the RPM accuracy algorithm makes the ESC more powerful and consistent, maximizing RPM accuracy to enhance overall performance. Compared with the previous ESC, the RPM accuracy algorithm significantly improves power and consistency. The adjustable constant speed sensitivity allows every pilot to easily find a setting that suits their flying style.

*** Specification:

- Model: Platinum 80A V5

- Continuous / Peak Current(A): 80A/120A

- Input Voltage: 3-8S Lipo battery

- BEC: Switch mode BEC; output voltage 5-12V Adjustable (adjusted 0.1V); Output Current Cont.8A, Peak 20A

- Input / Output Wires: 1*black & 1*red 12AWG silicone wires / 3*black 14AWG silicone wires

- Independent parameter programming interface: Connect LCD program box or OTA module, or to power the cooling fan

- LED light: Display the statuses and fault alerts

- Size/Weight: 60.5*33*17.6mm / 77.5g (with wires)

- The scope of application: 325-420 class electric helicopter (Main blade length 325-420mm), or fixed-wing

3. Xnova Lightning 3220-950KV Shaft A:

The 3220 lightning is a brand new powerhouse. Any helicopter asking for insane power swinging 380-420mm blades will be supperhappy with this masterpiece. The Xnova lightning series is the highest level of motor performance money can buy nowadays.

Xnova brushless high performance outrunner motor designed for extreme hard 3D, running in 380-420mm bladesize helicopter where highest power to weight ratio is important.At the same time this motor is also extreme efficient!

Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.

Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C.

New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance.

100% handwound.

*** Specifications:

- Slots & Poles: 12n10p

- Winding T: YY

- rpm/V: 950

- Volt (V): 10 / 22.2

- Io(A): 1.8 / 3.0

- Rm (mohm): 18 / 18

- Weight (without connector) (g): 200

- Body Length (no shaft) mm: 45

- Diameter (mm): 40.5

- Shaft Length (mm) (Details pictures): 22

- Shaft Dia. (mm): 5

- Mounting Holes CTC Distance (mm): 25

- Mounting Screw: M3x0.5

- Max Eff. Curr.: 31.62 / 60.83

- Max Eff.         : 88.62 / 90.14

- Kt (Nm/A): 0.0101

- Km (Nm/sqrt(w)): 0.0749

- Max Continuous Power(Watts): 1450

- Peak Continuous Power(Watts) (2 sec): 1900

- Max Continuous Current(Amps): 66

4. TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo:

This servo is basically a Mini Rudder Servo that can handle up to 700-800 Heli size, but if you have FBL that can use with 760us cyclic servo, you can also use this servo as cyclic servo for 550-600 size.

*** Features:

- Brushless Motor Technology for the Ultimate Power & Control

- Incredible Levels of Speed & Performance

- Ultra Precise, High Resolution Control

- Fully Replaceable Steel Gear Train for Maximum Strength

- Excellent Thermal Dissipation via Finned 6061 Aluminum Case

- 8.4V High Voltage Ready

- Optimized for Heli

- Dual Ball Bearing Construction

*** Speed:

- 0.05 sec / 60° @ 8.4V

- 0.06 sec / 60° @ 7.4V

- 0.07 sec / 60° @ 6.0V

*** Torque:

- 15Kg.cm / 208.31 oz in. @ 8.4V

- 13Kg.cm / 180.53 oz in. @ 7.4V

- 10Kg.cm / 138.87 oz. in. @ 6.0V

*** Specifications:

- Motor Type: Brushless

- Servo Arm Type: Futaba

- Working Frequency: 760us / 560Hz

- Weight: 45g

- Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)

- Voltage Range: 6.0V - 8.4V

*** Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.

5. Torq BLS0808 Brushless Micro HV Cyclic Servo:

Torq BLS0808 Brushless Micro HV Cyclic Servo - Power, Performance & Pure Domination.

Optimized for second to none power & performance, TORQ brings forth a BRUSHLESS micro servo that is ready & able to push the boundaries of the micro servo world.

Designed specifically for high torque / high speed demands of helicopter, airplane & jet based aircraft, the Torq BLS0808 Brushless Micro HV Cyclic Servo utilizes Brushless motor technology to obtain peak torque output, equating the Torq BLS0808 Brushless Micro HV Cyclic Servo as one of the most powerful micro servos on the market today.

With a crushing torque rating paired with rapid transit speeds, the Torq BLS0808 Brushless Micro HV Cyclic Servo is ready to exceed the boundaries of your next flight, with next level precision and resolution that can be felt at the sticks. Ready & waiting for high voltage applications, the BLS0808 operates within a wide voltage range, providing peak torque & speed with 8.4V of power.

Constructed with fully replaceable high strength steel gears, the Torq BLS0808 Brushless Micro HV Cyclic Servo utilizes a thermal dissipating 6061 aluminum case that is further aided in cooling via an exposed motor design. Optimized for extreme aircraft applications that demand incessant torque and power, the BLS0808 provides ultra crisp control, with in flight tactile feel that can be seen and felt.

Step up to the Torq BLS0808 Brushless Micro HV Cyclic Servo - pure performance & control for epic levels of servo domination.

*** Specifications:

- Rated Voltage: DC 7.4V

- Voltage Range: DC 6.0V-8.4V

- Torque:                            6.3Kg.cm@6.0V

.                                        8.6Kg.cm@7.4V

.                                        9.3Kg.cm@8.4V (129 oz.in)

- Speed:                             0.09sec/60° 6.0V

.                                        0.08sec/60° 7.4V

.                                        0.07sec/60° 8.4V

- Working Frequency: 1520us/333KHz   or  760us / 560Hz (need the TBOX Program Card)

- Default Travel Angle: ±50° (100° Total)

- Temperature Range: -20℃ to +65℃

- Programmable: Yes, compatible with TORQ TBox

- Case Material: Aluminum Alloy

- Motor Type: Brushless DC Motor

- Gear Set Material: Hardened Steel

- Dimensions: 23*12*27.5mm

- Weight: 20g
