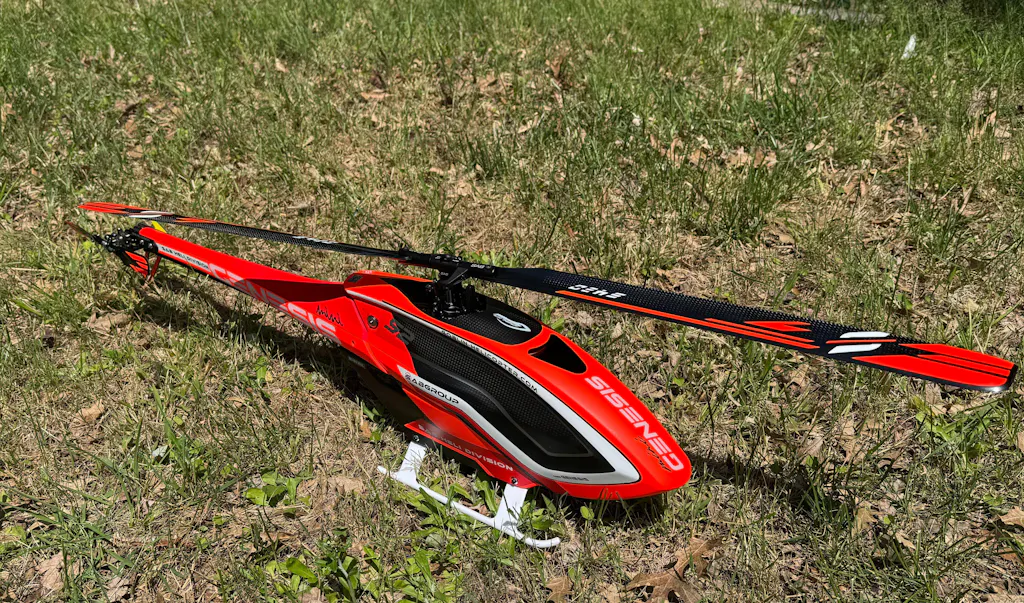

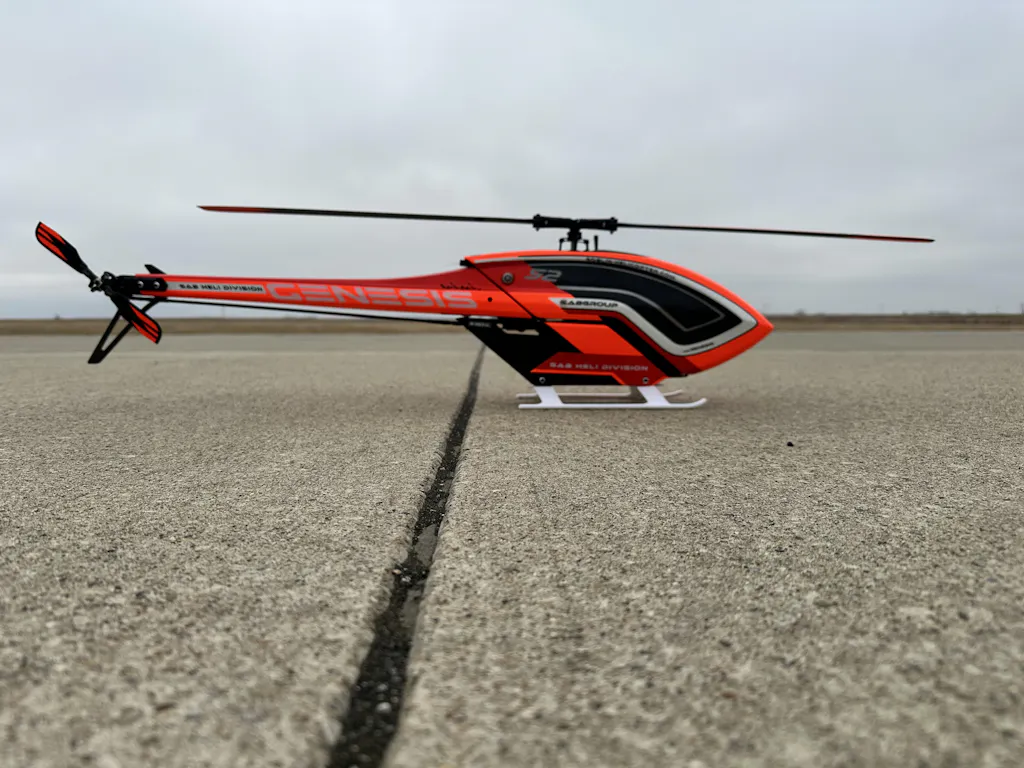

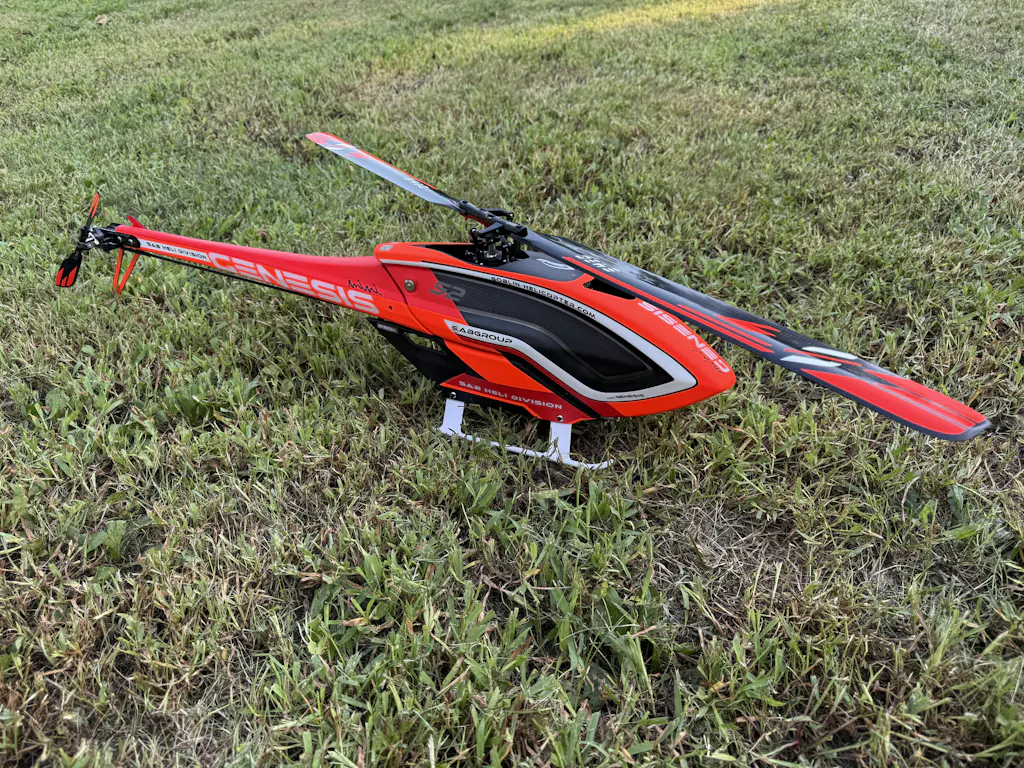

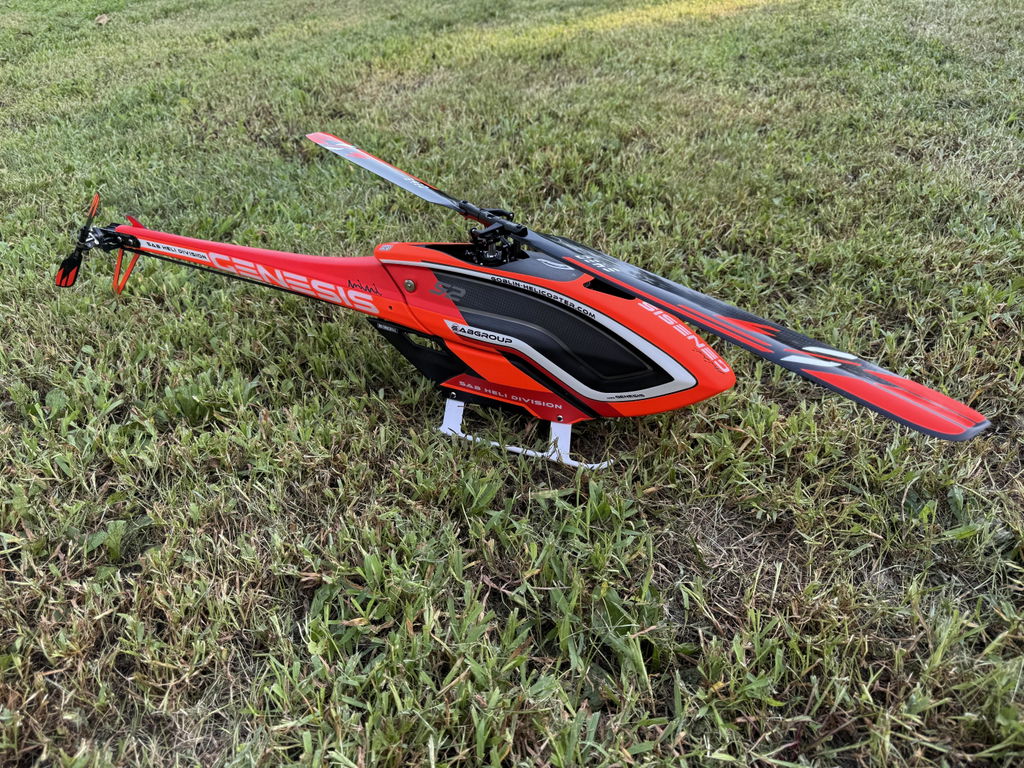

The all new Genesis Sport mini version is based on the already proven design of the Raw 420 competition. Sharing the same mechanics, transmission, head and tail, the Genesis Sport "mini" offers better visibility making it ideal for those who prefer an easier to see, sport flying or mild 3D flying machine.
Specifications:
Main rotor diameter:935mm (with 420mm blades)
Main blades length:420mm
Tail rotor diameter:194mm (with 72mm tail blades)
Tail blades length:60 to 70mm
Cyclic servos:Micro size 23mm
Tail servo:Mini size 35mm
Maximum battery size:140x40x50mm (max)
Recommended battery:6s 2200/2700 mAh
Recommended battery weight:350-420 grams
Recommended motor:3020 – 3215 – 3220/ 900-1000 KV
Recommended ESC:60-80A
Molded carbon Canopy, Tail Boom, Side Frame
Main shaft:8mm,Tail shaft:5mm
Tail rotor ratio4:1
Main Features:
Carbon Fiber Genesis fuselage
The same design Genesis fuselage but smaller, made by carbon fiber
Tail servo located on boom
Easy to install or remove tail servo
Battery tray with SAB connector insert backward
Easy insert/remove battery with out the need of open canopy
SAB ESC connector
No need to worry about ESC connector, kit includes!
Perfect match with SAB Battery connector and tray
New design tail push rod
Just as same as the ILGoblin PRO/RAW, mini Genesis using new design tail push rod
SAB traditional tail system
The traditional tail system maximum your control in flight
u00a05 x Uniball M3 u00d85 H3.5 (5pcs)
u00a05 x UNIBALL SPACER
u00a05 x Socket Head Capu00a0 M2x8
u00a05 x Socket Head Cap M2x6
category-helicopter,category-helicopter-brand-sab-heli-division,category-helicopter-brand-sab-heli-division-model-urk-genesis-maverick,category-helicopter-brand-sab-heli-division-model-urk-genesis-maverick-options-tail-parts
Includes:
- Plastic Tail Linkage x 2pcs
- Grip Link Bushing x 2pcs
- Socket Head Cap M2x6 x 2pcs
Use for:
- Goblin 380 / 500 / 570 / 630 / 700
category-helicopter,category-helicopter-brand-sab-heli-division,category-helicopter-brand-sab-heli-division-model-urk-genesis-maverick,category-helicopter-brand-sab-heli-division-model-urk-genesis-maverick-options-tail-parts
Includes:
- Plastic ESC case x 1set
- Male Connector x 2pcs
- Finishing Washer M2.5 x 2pcs
- Socket Head Cap Screw M2x6mm x 1pc
- Socket Head Cap Screw M2.5x20mm x 2pcs
Use for:
- RAW500
5 x Cup Point Set Screws M2,5x18category-helicopter,category-helicopter-brand-sab-heli-division,category-helicopter-brand-sab-heli-division-model-urk-genesis-maverick,category-helicopter-brand-sab-heli-division-model-urk-genesis-maverick-options-hardware
NOTE: IKON2 works with SPM4651T. You will need to buy an SPMA3066 adapter to connect to the IKON2. (required also for RX firmware updates and to activate the warranty by registering the receiver on the My Spektrum website). If you want to make an adaptor...
TORQ CL0508 Micro HV Servo - Power, Performance & Pure Domination. Optimized for second to none power & performance, TORQ brings forth a micro servo that is ready & able to push the boundaries of the micro servo world.Designed specifically for high torque / high...
TORQ CL0604T Mini HV Rudder Helicopter Servo - Unworldly Precision & Control.Explore new worlds of precision & control with the TORQ CL0604T Mini HV Rudder Helicopter Servo. Specifically designed for the intense demand of helicopter rudder control, the TORQ CL0604T Mini HV Rudder Helicopter...
DS215MG HV servo is an amazingly powerful and fast metal cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 3.7 kg.cm of torque and a rotational velocity of 0.05 sec/60° it combines exceptional power with...
User Manual > Manual_Platinum-80A-V5.pdf Product Catalog > Platinum 80A V5 leafiets EN.pdf Overview: Synchronous Rectification Technology with multiple advantages The Platinum V5 Series features a new double-sided heat sink with additional "side windows" for better cooling. Multiple protections, Extra Safety: It has multiple protection functions, to...
This servo is basically a Mini Rudder Servo that can handle up to 700-800 Heli size, but if you have FBL that can use with 760us cyclic servo, you can also use this servo as cyclic servo for 550-600 size. Features:- Brushless Motor Technology...
KST DS565X Mini Size Digital Servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos on the tail rotor! It's critical to ensure your gyro has the capability to operate 760uS Tail Servos, ensuring that the KST 565X...
Torq BLS0808 Brushless Micro HV Cyclic Servo - Power, Performance & Pure Domination. Optimized for second to none power & performance, TORQ brings forth a BRUSHLESS micro servo that is ready & able to push the boundaries of the micro servo world.Designed specifically for high...
Outstanding ARM M7 processor M7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features. This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need. It packs native telemetry support...
GET THE PRO VERSION Since the first release, CORTEX combines a demonic and a happy-go-lucky flying enjoyment for the ambitioned RC pilot. High-quality, reliable, versatile, universally ready for operation – that’s what this extra class in 3-axis stabilization systems is known for a long...
Specification: Motor shaft diameter:5mm Motor shaft length:21mm Stator Diameter:32mm Stator Thickness:20mn No. of Stator Arms:8mm Number of slots/poles: 10N/10P Motor Wind: 5+3 Turn Delta Motor wire diameter:0.86mm Motor Kv: 1000Kv Outside Diameter: 40.8 mm Shaft Diameter: 5 mm Body Length: 54.5 mm Overall Shaft...
Love it!!! The manual, craftsmanship, engineering, and parts quality are like no other. I won't say the name but it makes one of the long time manufacturers look like a laughing stalk.
B
Brian L.
SAB Genesis Mini. Awesome

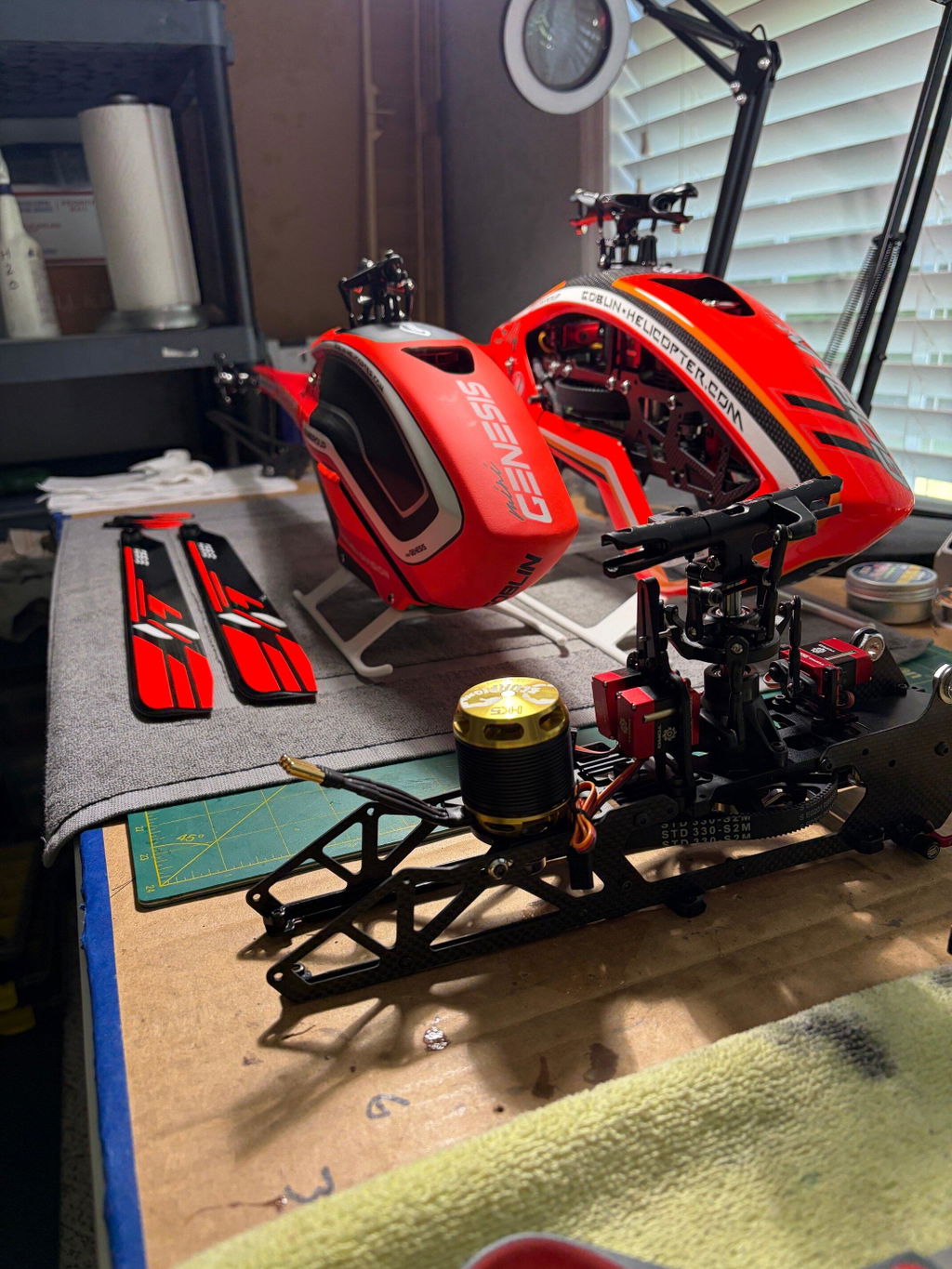

Purchased this kit at IRCHA and, as is expected with a SAB kit, it’s been excellent. I finished the build in two nights and had the electronics tidied up the third. Put the maiden on it and it’s rock solid. Very nice little helicopter. Builds and flies excellent. Paired mine with an Egodrift motor, Hobbywing esc, and Torq servos.
E
EulieM
Great Billd Quality. An exceptional small sophisticated Heli
Feels like a much larger bird running a FrSky Vantac RF007 Twin controller. Very Impressive. Quiet drive train, smooth and predictable flight.
J
Joe B.
SAB Mini Genesis
SAB build quality is outstanding.
You won't be disappointed.
M
Mitch
Mini Genesis
The quality and attention to detail is awesome! Typical of any SAB product I’ve ever had.
B
Brian F.
Mini Genesis
This heli is so visible and fly’s awesome like all my other SAB heli’s. I highly recomend this one for a every day flyer for the parts replacement cost compared to the bigger machines.
