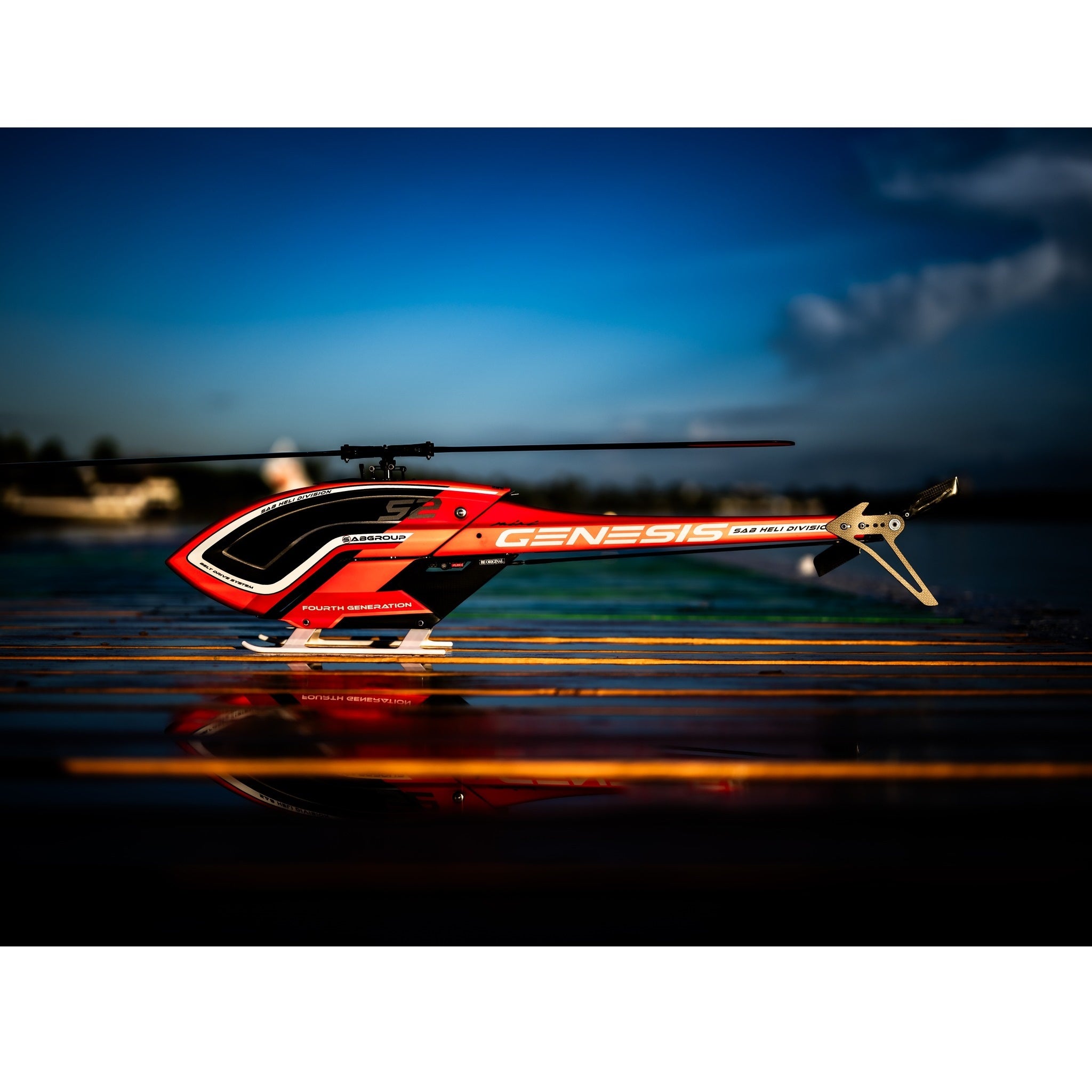

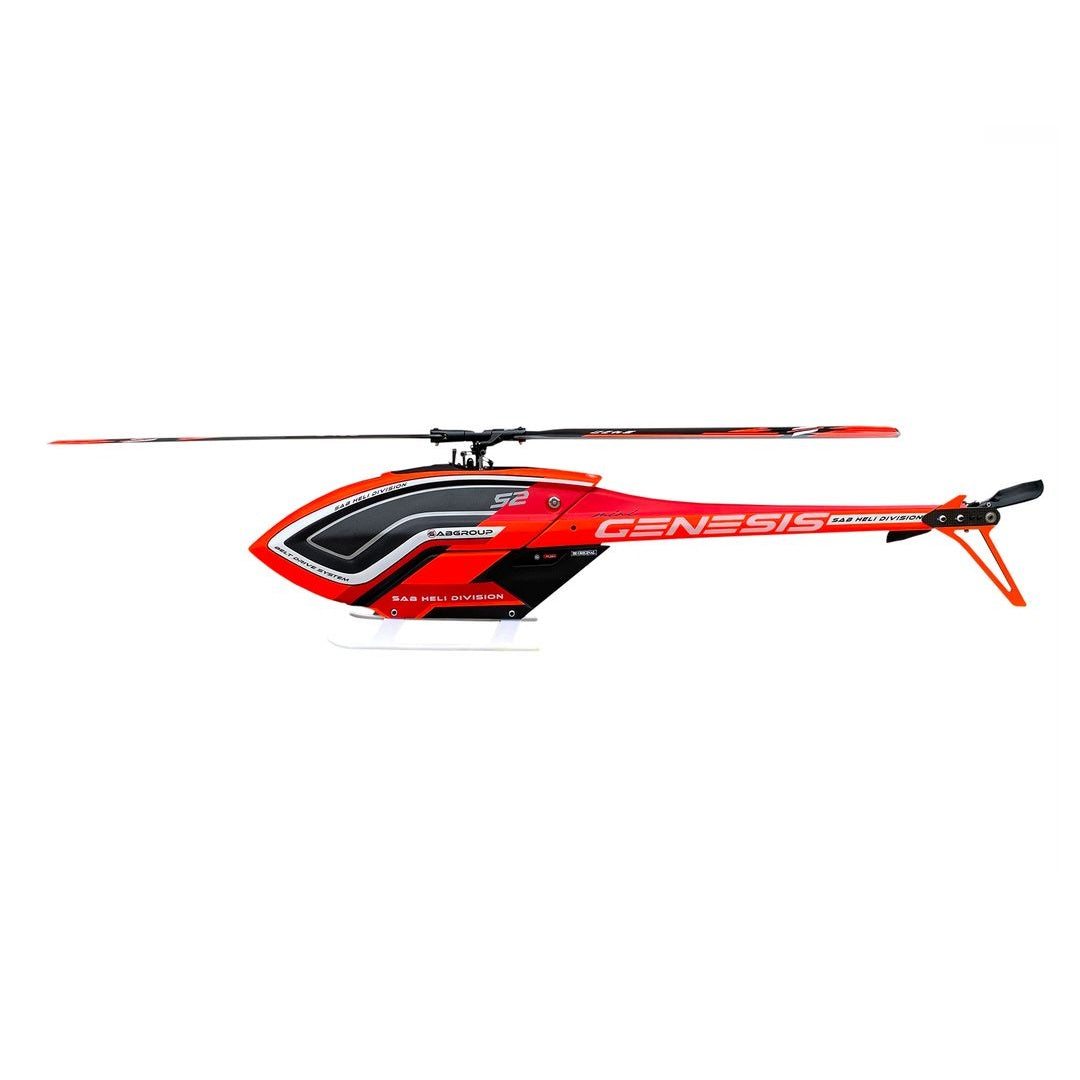

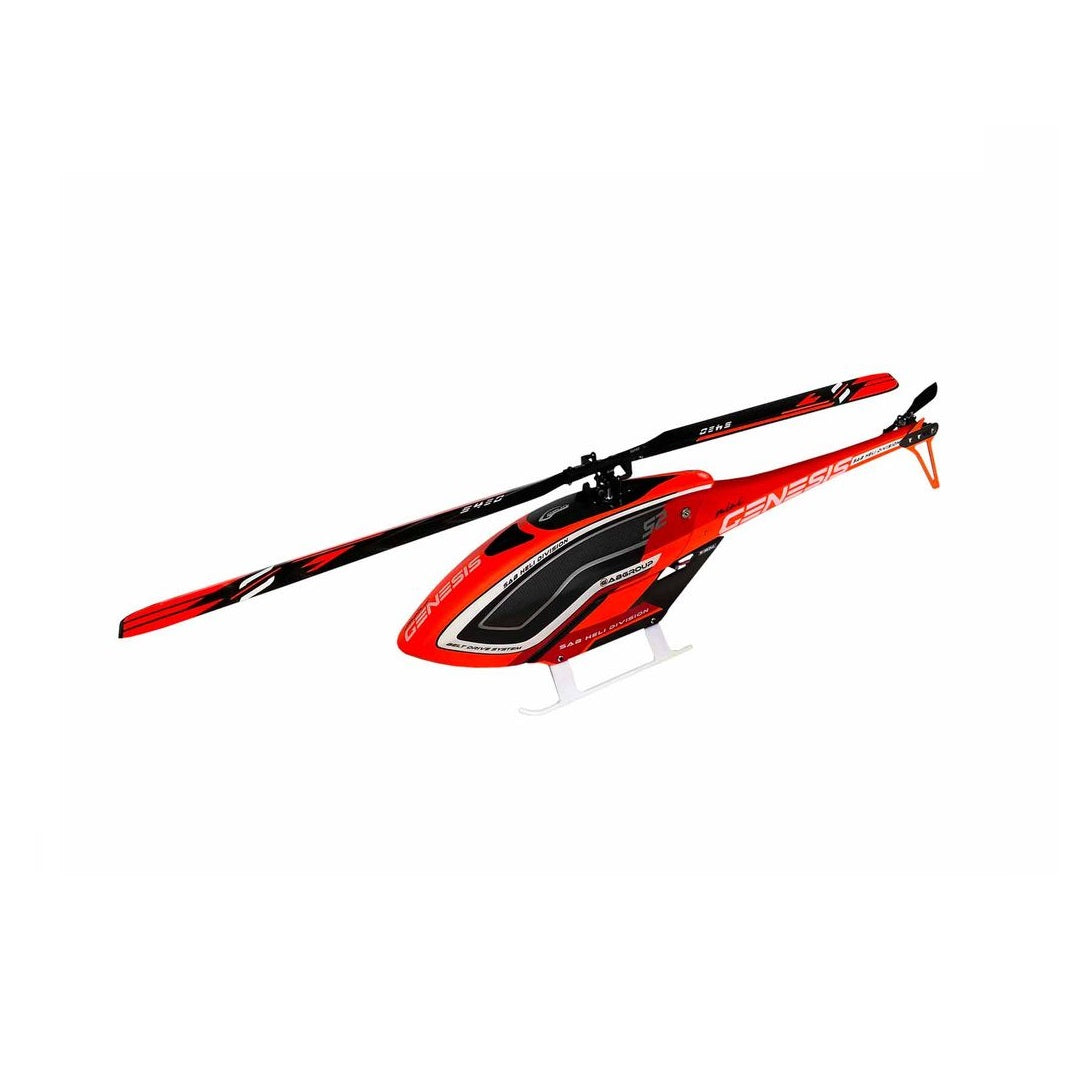

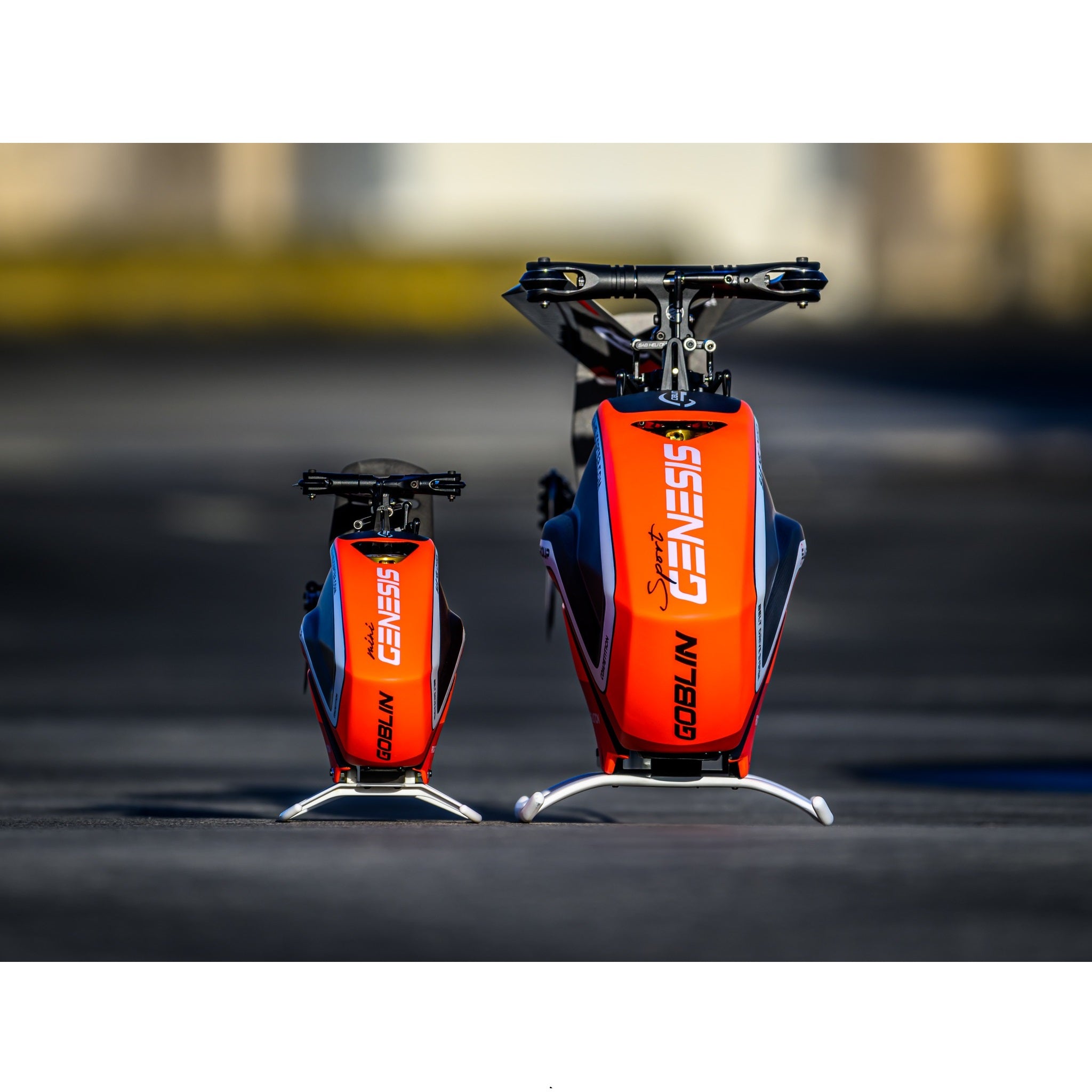

The all new Genesis Sport mini version is based on the already proven design of the Raw 420 competition. Sharing the same mechanics, transmission, head and tail, the Genesis Sport "mini" offers better visibility making it ideal for those who prefer an easier to see, sport flying or mild 3D flying machine.
Main rotor diameter: 935mm (with 420mm blades)
Main blades length: 420mm
Tail rotor diameter: 194mm (with 72mm tail blades)
Tail blades length: 60 to 70mm
Cyclic servos: Micro size 23mm
Tail servo: Mini size 35mm
Maximum battery size: 140x40x50mm (max)
Recommended battery: 6s 2200/2700 mAh
Recommended battery weight: 350-420 grams
Recommended motor: 3020 – 3215 – 3220/ 900-1000 KV
Recommended ESC: 60-80A
Molded carbon Canopy, Tail Boom, Side Frame
Main shaft: 8mm, Tail shaft: 5mm
Tail rotor ratio 4:1
The same design Genesis fuselage but smaller, made by carbon fiber
Easy to install or remove tail servo
Easy insert/remove battery with out the need of open canopy
No need to worry about ESC connector, kit includes!
Perfect match with SAB Battery connector and tray
Just as same as the ILGoblin PRO/RAW, mini Genesis using new design tail push rod
The traditional tail system maximum your control in flight
| Vendor: | SAB Heli Division |
| SKU: | SG425 |
| Barcode: | 8935254821946 |
| Availability: | In Stock |
| Product Type: | Helicopter Kit |
| Weight: | 12.0 lb |
Purchased this kit at IRCHA and, as is expected with a SAB kit, it’s been excellent. I finished the build in two nights and had the electronics tidied up the third. Put the maiden on it and it’s rock solid. Very nice little helicopter. Builds and flies excellent. Paired mine with an Egodrift motor, Hobbywing esc, and Torq servos.
Feels like a much larger bird running a FrSky Vantac RF007 Twin controller. Very Impressive. Quiet drive train, smooth and predictable flight.
SAB build quality is outstanding.
You won't be disappointed.
The quality and attention to detail is awesome! Typical of any SAB product I’ve ever had.
This heli is so visible and fly’s awesome like all my other SAB heli’s. I highly recomend this one for a every day flyer for the parts replacement cost compared to the bigger machines.
Awsome heli
