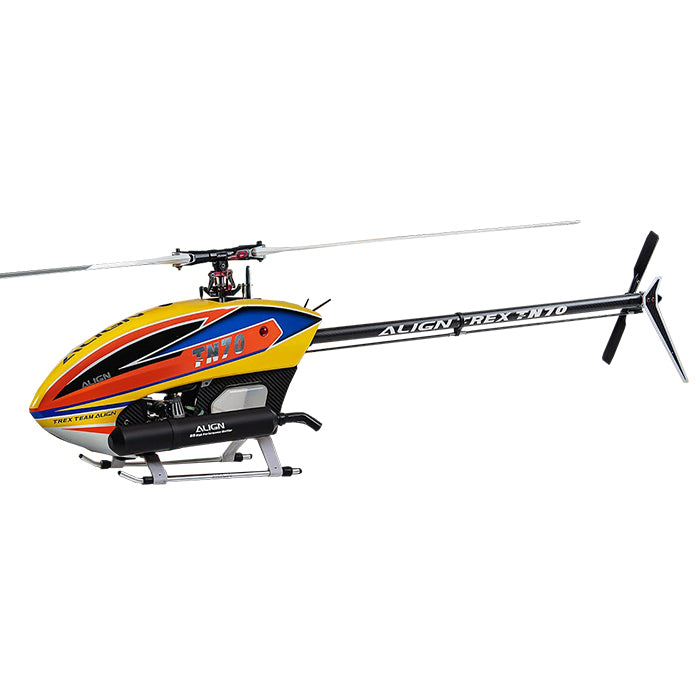

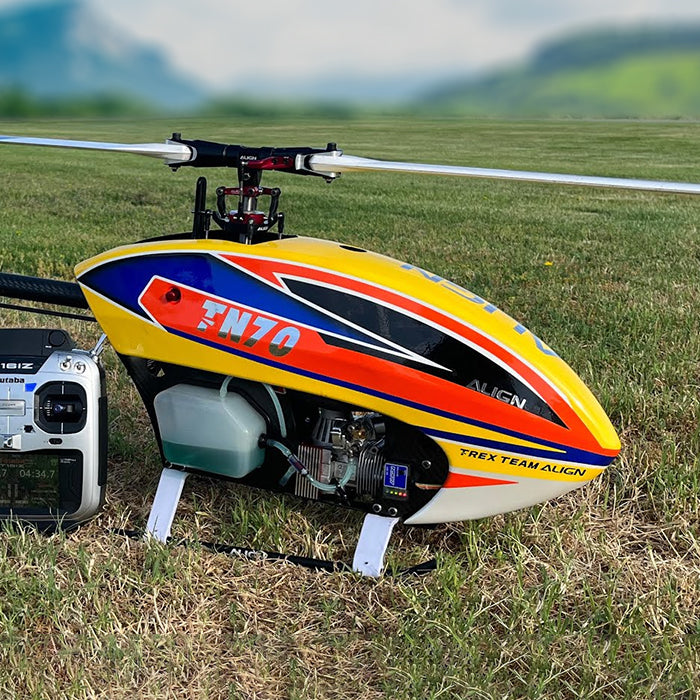

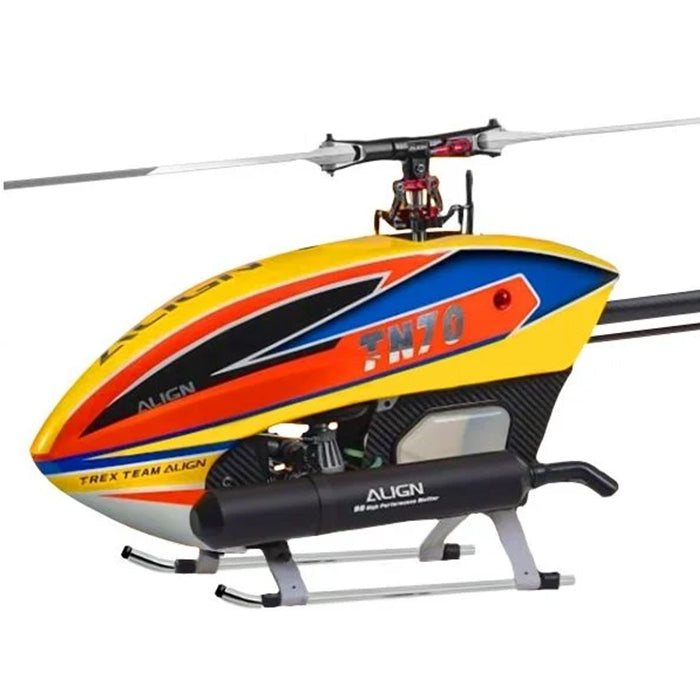

Align TN70 Nitro Helicopter

Vendor: Align
|
SKU: RH70N36XT
Availability: In Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Price Match Guarantee
$728.99
$809.99
$728.99
Version: Kit (with Muffler)
The order quantity exceeds the stock!
Align TN70 Nitro Helicopter TOP Combo - HeliDirect

Align TN70 Nitro Helicopter

$809.99 $728.99

Align TN70 Nitro Helicopter

$809.99 $728.99
Version: Kit (with Muffler)

Related Products
















Specification

●Length: 1352mm
●Height: 397mm
●Width: 202mm
●Main Blade Length: 690mm
●Main Rotor Diameter: 1543mm
●Tail Rotor Diameter: 279mm
●Tail Drive Belt Pulley:27T
●Main Drive Gear:107T
●Autorotation Tail Drive Gear: 102T
●Tail Drive Gear: 23T
●Gear Ratio: 7.43:1:4.23
●Engine: 105 Nitro Engine
●Fuel Tank Capacity: 630cc.
●Takeoff Weight: Approx. 4110g


KIT with PIPE:

Electric equipment

●ALIGN 105 High Performance Pipe x 1
●Governor Sensor x 1
RH70N31XW



Accessories

●TN70 Kit Set x 1 set
●690 Carbon Fiber Blades x 1 set
●105 Carbon Fiber Tail Blades x 1 set
●ALIGN 105 High Performance Pipe x 1
●Governor Sensor x 1


Radio transmitter and electronic equipment required for assembly

●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more) or Remote Receiver
●Flybarless System x1
●Engine starter x 1
●Fuel pump x 1
●105 Engine x 1
●Engine fuel x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●DS530 Digital Servo x 1
●B6M 2 In 1 Voltage Regulator Combo x 1
●Digital Pitch Gauge
●Multi-function Tester
●2S1P 7.4V Li-Po 1900~2600mAh Battery x 1





SUPER COMBO:

Electric equipment

●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●DS530 Digital Servo x 1
●B6M 2 In 1 Voltage Regulator Combo x 1
●ALIGN 105 High Performance Pipe x 1
●Governor Sensor x 1
RH70N41XW






Accessories

●TN70 Kit Set x 1 set
●690 Carbon Fiber Blades x 1 set
●105 Carbon Fiber Tail Blades x 1 set
●ALIGN 105 High Performance Pipe x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●DS530 Digital Servo x 1
●B6M 2 In 1 Voltage Regulator Combo x 1
●Governor Sensor x 1


Radio transmitter and electronic equipment required for assembly

●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more) or Remote Receiver
●Flybarless System x1
●Engine starter x 1
●Fuel pump x 1
●105 Engine x 1
●Engine fuel x 1
●Digital Pitch Gauge
●Multi-function Tester
●2S1P 7.4V Li-Po 1900~2600mAh Battery x 1





TOP COMBO:

Electric equipment

●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●DS530 Digital Servo x 1
●B6M 2 In 1 Voltage Regulator Combo x 1
●MICROBEAST² Flybarless system x 1
●Governor Sensor x 1
●ALIGN 105 High Performance Pipe x 1
●O.S. MAX-105HZ Engine x 1
RH70N31XW


Accessories

●TN70 Kit Set x 1 set
●690 Carbon Fiber Blades x 1 set
●105 Carbon Fiber Tail Blades x 1 set
●ALIGN 105 High Performance Pipe x 1
●O.S. MAX-105HZ Engine x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●DS530 Digital Servo x 1
●B6M 2 In 1 Voltage Regulator Combo x 1
●MICROBEAST² Flybarless system x 1
●Governor Sensor x 1


Radio transmitter and electronic equipment required for assembly

●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more) or Remote Receiver
●Engine starter x 1
●Fuel pump x 1
●Engine fuel x 1
●Digital Pitch Gauge
●Multi-function Tester
●2S1P 7.4V Li-Po 1900~2600mAh Battery x 1
Vendor: Align
SKU: RH70N36XT
Barcode: 4713413731909
Availability: In Stock
Product Type: Helicopter - Kit/Combo
Weight: 12.24 lb
