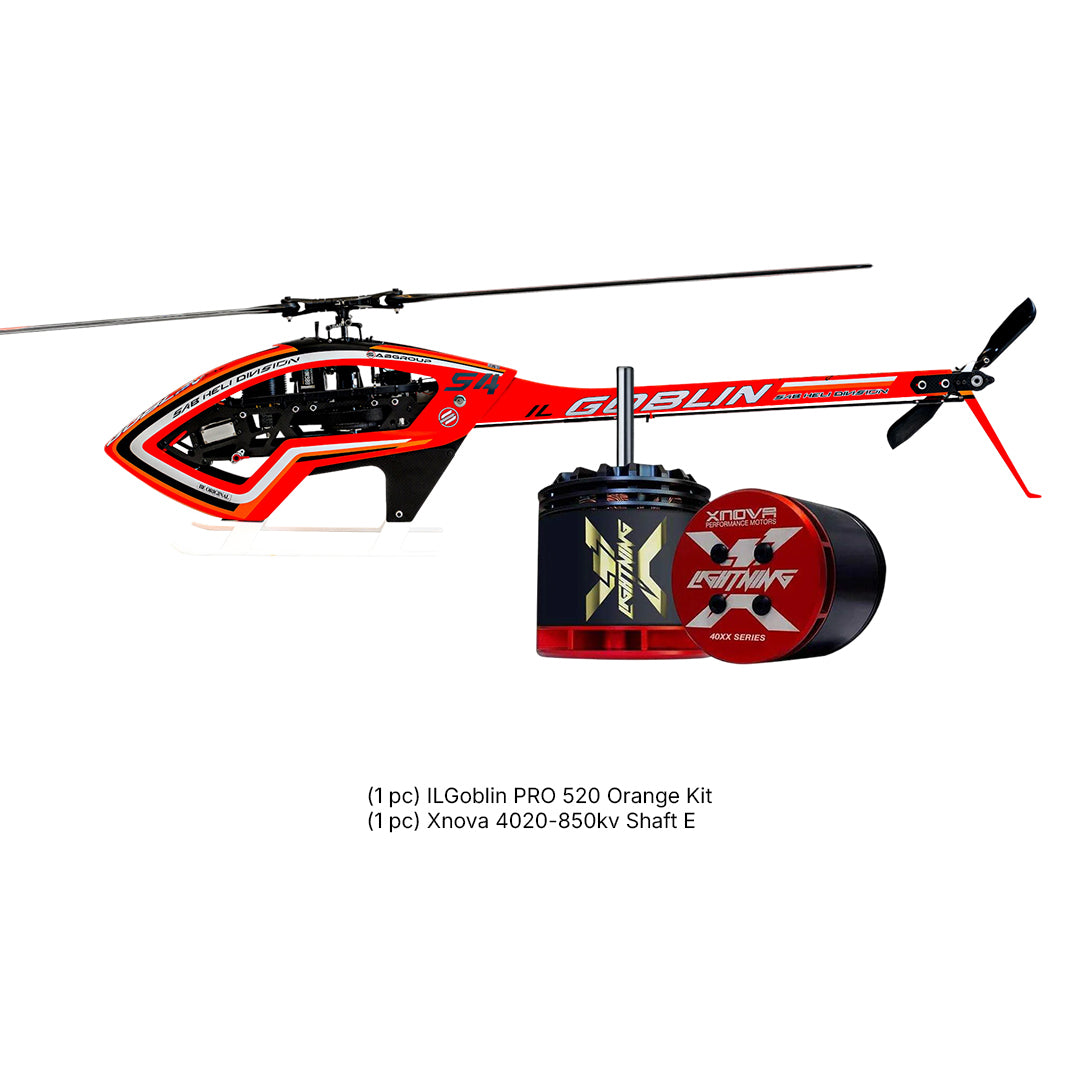

SAB ILGoblin PRO 520 Orange w/ Main and Tail Blades Combo Motor

1. SAB ILGoblin PRO 520 Orange w/ Main and Tail Blades
Developed based on the well proven Goblin RAW 500, the ilGoblin 520 brings many improvements to the platform:
- ilGoblin Pro Canopy/Boom shape
- New, stronger one way bearing
- New, stronger motor belt transmission
- New, smoother tail belt transmission
- Full Size tail servo compatible (Mini Tail Servo Mount H2272-S sold separately)
- 520mm main blades/82mm tail blades
The model supports a rear-inserting battery tray, allowing you to install batteries without ever removing the canopy.

*** Specifications:
AIRFRAME weight: 1894 gr (no blades, no battery, no electronics)
Main rotor diameter: 1220 mm (with 520 mm main blades)
Main blade length: 480 to 530mm
Tail rotor diameter: 222 mm (with 82 mm tail blades)
Tail blade length: 80 to 85 mm
Cyclic Servos: Mini size 35mm
Tail Servo: Mini size 35mm/Standard size 40mm
Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Includes)
Tail Rotor Ratio: 3.88.1
Main shaft: 8 mm, Tail shaft: 5 mm
Molded carbon tail boom
Typical motor: 6S, 800/900 KV
Battery room: 48x48x150mm

*** Features:
- Tail Servo Located In Front
Positioning the tail servo at the front optimizes the center of gravity (CG) of the ILGoblin 520, and provides compatibility with both mini (Mini Tail Servo Mount H2272-S sold separately) and full-size tail servos.
- IL Goblin Scheme Canopy and Boom
Following the success of the scheme on the ILGoblin 700, we extended its use to other product lines.
- 12mm One Way Bearing and 13mm Motor Belt
Utilize a 12mm one-way bearing and 13mm motor belt for maximum head speed
- 520mm Main Blades and 82mm Tail Blades
New SAB 520mm main blades and 82mm tail blades are available in a new orange color design.
- Carbon Moulding Tail Boom
The boom utilizes the same molding technique as the ILGoblin 700, and it weighs only 100 grams
- New Plastic Ball Linkage
The redesigned plastic ball linkage is significantly stronger and more robust, reducing maintenance time

*** KIT Includes:
• 17T motor pulley (other pulley sizes available).
• 1 battery tray with integrated connectors.
• S520 Orange (520 mm main blades).
• S82 Orange (82 mm tail blades).

2. Xnova Lightning Outrunner Motor 4020-850KV For iLGoblin520 Shaft E
We have spent hours of testing to improve the very well established 4020 series. The result is an even better overall performing motor with extreme low cogging torque and increased efficiency. This all will provide you a cooler running motor and also more consistent power delivery over the full flight. The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.

Xnova lightning 4020-850KV high performance outrunner motor ,special design for SAB New iLGoblin 520 helicopters on 6S  setups. The motor is very powerful and high efficeincy.

*** TECHNICAL DETAILS
1. Improved higher efficiency with thinner stator lamination, resulting in lower temperature.
2. Optimized and unique design, hand wound to perfection
3. Smooth running, low cogging torque.
4. New type of higher degree magnets.
5. All other features same as performance series.

Xnova LIGHTNING 4020 series
The 4020 series are extremly powerfull and perfect for any 480mm up to 600mm Blade Heli flying on 6S up to 8S, ( KV related )
