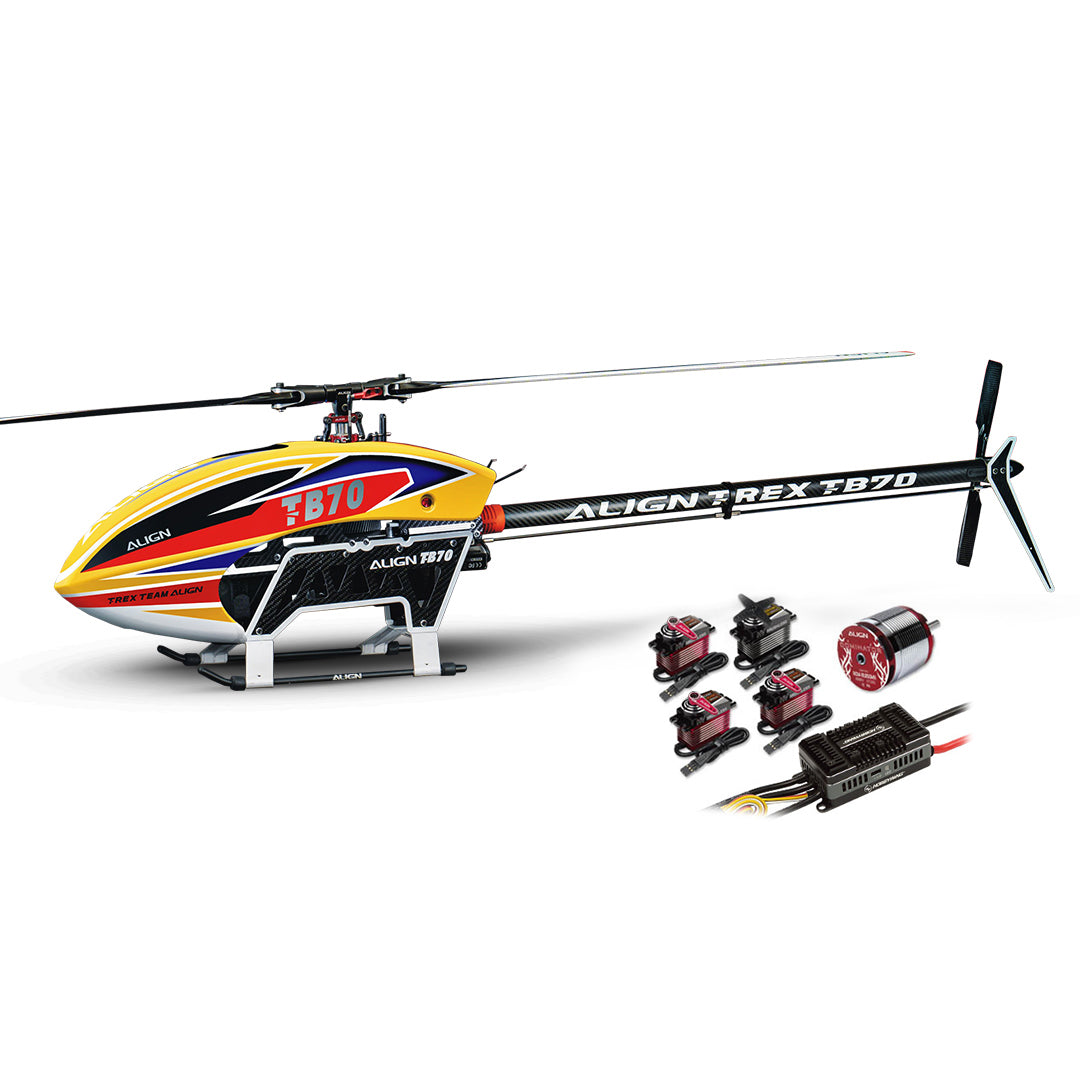

Align TB70 V2 Electric Helicopter Top Combo - Orange

Electric equipment

• Platinum HV 200A V4 Brushless ESC x 1
• 800MX Brushless Motor(570KV/4530) x 1
• DS830M High Voltage Brushless Servo x 3
• DS835M High Voltage Brushless Servo x 1

New Feartures

• Efficient Belt- Drive Upgrade Design
• Integrate the composite material side plates engineered by exclusive embedding technology
• 800MX Brushless Motor 570KV/4530 with superior power supply
• DS830M/DS835M High Voltage Brushless Servo
• Platinum HV 200A V4 Brushless ESC
• Brand new designed streamline Canopy * NEW
• Upgrade Canopy Mounting Bolt * NEW

Specification

• Length: 1356mm
• Height: 358mm
• Width: 187mm
• Main Blade Length: 650-730mm
• Main Rotor Diameter: 1542mm
• Tail Length: 105-115mm
• Tail Rotor Diameter: 279mm
• Motor Belt Pulley: 22T
• Belt Pulley: 50T
• Front Drive Main Shaft: 15T
• Main Drive Gear: 62T
• Autorotation Tail Drive Gear: 27T
• Tail Drive Gear: 23T
• Drive Gear Ratio: 9.38:1:4.83
• Max RPM(approx.): 2400RPM
• Flying Weight(With Battery): Approx. 5kg (ALIGN 12S 5200mAh)

Accessories

• TB70 V2 Kit Set x 1 set
• 700 Carbon Fiber Blades x 1 set
• 22T Motor Belt Pulley x 1
• 105 Carbon Fiber Tail Blades x 1 set
• 800MX Brushless Motor(570KV/4530) x 1
• DS830M High Voltage Brushless Servo x 3
• DS835M High Voltage Brushless Servo x 1
• Platinum HV 200A V4 Brushless ESC x 1

Radio transmitter and electronic equipment required for assembly

• Transmitter(6-channel or more, helicopter system)
• Receiver(6-channel or more)
• RCC-6CX Intelligent Balance Charger
• 22.2V 6S 4000~4800mAh Li-Po Battery x 2
• Digital Pitch Gauge
• Multi-function Tester
• Flybarless System
