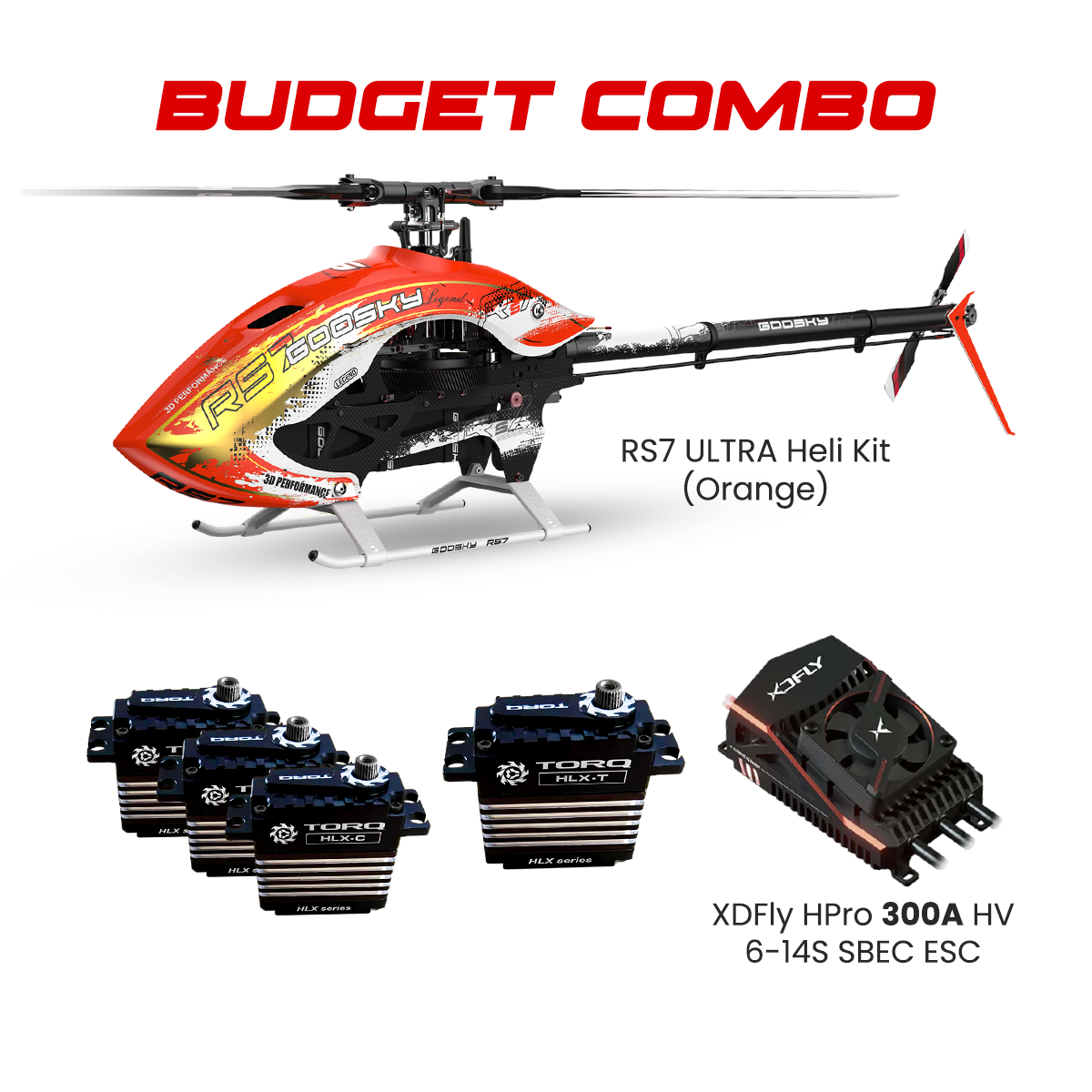

Goosky RS7 ULTRA Helicopter Kit (ORANGE) With Azure 700/105 Blades Combo TORQ HLX Black Edition Servos & XDFly HPro 300A HV 6-14S ESC

*** Package Includes:
1 * Goosky RS7 ULTRA Helicopter Kit With Azure 700/105 Blades - Orange
1 * XDFly HPro 300A HV 6-14S  SBEC ESC
3 * Torq HLX Black Edition Fullsize Cyclic Servo
1 * Torq HLX Black Edition Full Size Tail Servo

1. Goosky RS7 ULTRA Helicopter Kit With Azure 700/105 Blades - Orange:
*** Features:
Low-Drag Aerodynamic Shape Design
Integrating multiple low-drag aerodynamic solutions: The top ridge line splits the airflow like a blade, while the double-curvature air ducts direct the air precisely into the cooling channels. The inward-turning edge design reduces vortex formation, and the entire canopy features a low-resistance, streamlined profile that balances heat dissipation efficiency with increased stability by minimizing flight drag

Main Gear Reinforcement
The main gear features a larger diameter design, with an optimized increase in the helical angle, improving transmission efficiency and increasing torque output

Adaptive Tensioner Wheel Design
Featuring an adjustable tensioner wheel, the S2 incorporates a dual-shaft reinforcement design and leverages top-tier CNC machining technology—all to provide a stable and reliable flight experience.

Shock Absorption System
Upgraded shock absorption system, designed with vibration filtering and cushioning, reduces airframe vibrations that interfere with the gyroscope, enabling more precise control

Tail Assembly
Featuring a lightweight design that reduces weight by 8g; the tail shaft is shortened by 9mm, lowering the load and reducing vibration; the geometry and pitch are optimized simultaneously, further enhancing tail response speed and control performance

*** Specifications:
- Overall Height: 353mm
- Width: 215mm
- Airframe weight(no battery): About 3.7kg
- Main Shaft Diameter: Ø15mm
- Feathering Shaft Diameter: Ø10mm
- Tail Shaft Diameter: Ø5mm
- Tail spindle Diameter: Ø5mm
- Tail Belt width: 8mm
- One-piece tail shaft: 8mm
- Main Gear: 116T
- Front Tail Pulley: 100T
- Main Gear Ratio (Main motor gear 13T): 8.92 (Standard configuration)
- Main Gear Ratio(Main motor gear 12T): 9.66
- Tail Ratio(Tail pulley 20T): 5 (Standard configuration)
- Tail Ratio(Tail pulley 21T): 4.76
- Tail rotor diameter (when paired with 105 tail blades): Ø295mm
- Battery Compartment Size: (L320*W50*H55mm)

2. XDFly HPro 300A HV 6-14S  SBEC ESC:
HDFly have released a new 32-bit HPRO 300A ESC HV 6-14S built-in SBEC 6-12V 10A for RC airplane F3A F3C 700-800 Class helicopter

*** Key Features:
- Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
- Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
- Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
- The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
- The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
- With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
- Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
- The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
- With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
- Equipped with colorful LED lights including five optional colors for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
- Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.

*** Important Warnings
- Always place safety as priority when you use the product.
- An electric motor that is connection with battery pack and ESC may start unexpectedly and cause serious danger.
- Always treat a powered system with respect.
- Always remove the propeller or disengage the pinion gear before the battery connected if you need to working on a plane or helicopter at short range.
- Please observe all local laws regarding the flying of remote control aircraft.
Never fly over or near crowds.

3. Torq HLX Black Edition Fullsize Cyclic Servo:
*** Features:
- Using the newest Hall Sensor Technology
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully New Design Steel Gear Train for Maximum Strength
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane, Jet Aircraft
- 6 Ball Bearings Construction

Speed:
0.07 sec / 60° @8.2V
0.09 sec / 60° @ 7.4V
0.11 sec / 60° @ 6.0V

Torque:
35Kg.cm / 486,05 oz in. @ 8.2V
30Kg.cm / 416,62 oz in. @ 7.4V
24Kg.cm / 333,29 oz. in. @ 6.0V

*** Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Frequency: 1520us / 333Hz or 760us / 560Hz (need the TBOX Program Card)
- Weight: 80g
- Dimensions: 40mm x 20mm x 40mm (LxWxH)
- Voltage Range: 6.0V - 8.4V

*** Usage Note:
Servo Grommet is suggested use if you use our servo on Nitro Heli.

4. Torq HLX Black Edition Full Size Tail Servo:
*** Features:
- Using the newest Hall Sensor Technology
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Newly Design Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- 6 Ball Bearings Construction

Speed:
0.03 sec / 60° @ 8,2V
0.035 sec / 60° @ 7.4V
0.04 sec / 60° @ 6.0V

Torque:
13.0Kg.cm / 180,53 oz. in. @ 8.2V
11.0Kg.cm / 152,76 oz. in. @ 7.4V
9.0Kg.cm / 124,98 oz. in. @ 6.0V

*** Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz or 450us-1050us
- Weight: 80g
- Dimensions: 40mm x 20mm x 40mm (LxWxH)
- Voltage Range: 6.0V - 8.4V

*** Usage Note:
For helicopter rudder usage only. Please note that the TORQ HLX-T servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
Servo Grommet is suggested use if you use our servo on Nitro Heli.
