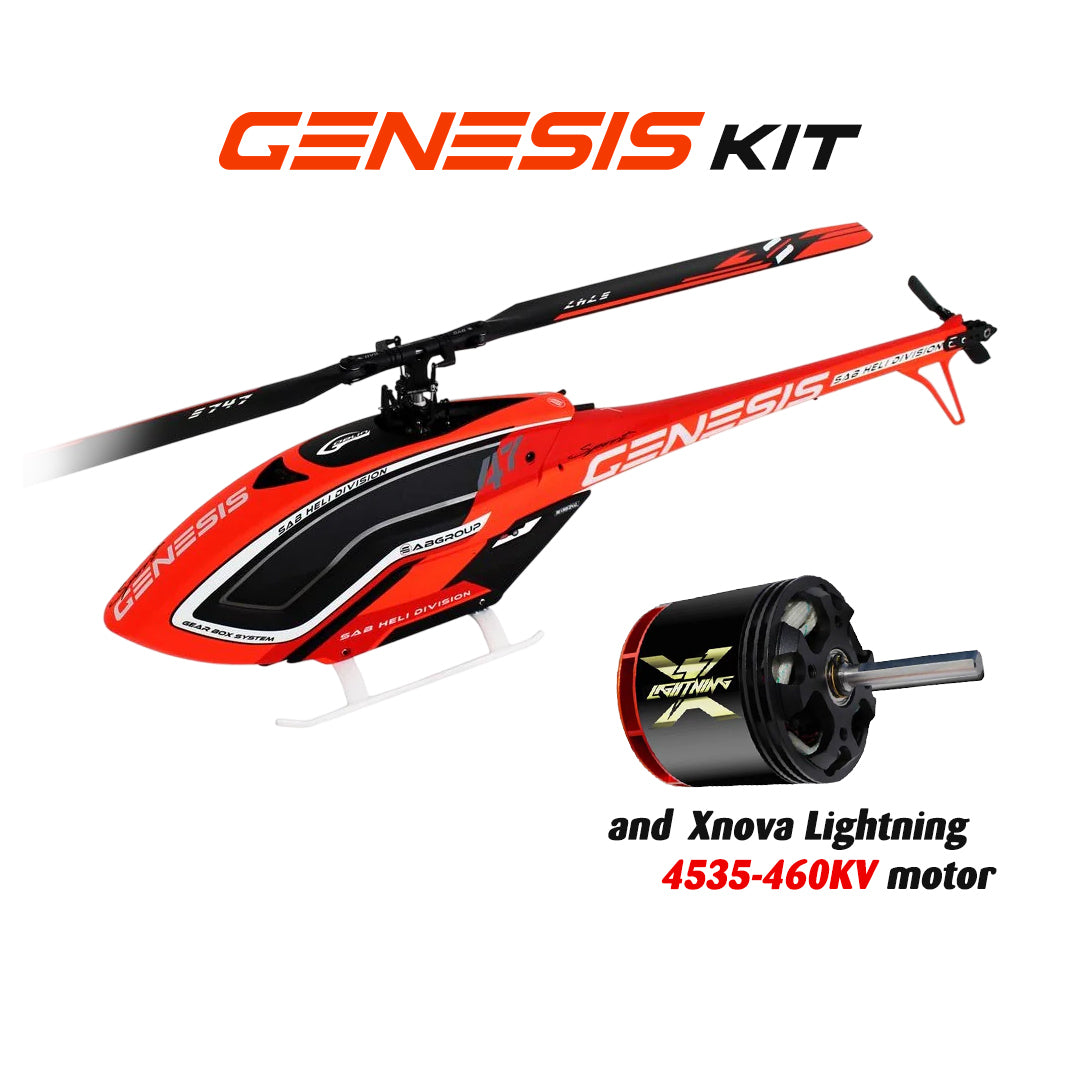

SAB GENESIS SPORT + Xnova Lightning 4535-460KV Brushless Motor With 6mm Shaft (Shaft A)

*** PACKAGE INCLUDES:
- 1* SAB GENESIS SPORT
- 1 * Xnova Lightning 4535-460KV Brushless Motor With 6mm Shaft (Shaft A)

I. SAB GENESIS SPORT:
The new Genesis Sport is completely redesigned, offering several advanced features:

Transmission:
• Belt Drive: Ensures a very quiet and smooth transmission.
• One-Way Bearing: positioned directly on the main shaft for maximum smoothness during autorotation.
• 15 mm Main Shaft: Supported by two bearings assembled in a separate unit for ease of maintenance.

Rotor Head:
• New Design: Features 35 mm blade grip arms with a new locking system.
• Self-Centering Titanium Washers: Ensure automatic centering for greater precision.
• Pivot Option for Spindle: Fully configurable for rigidity and maximum movement.

Tail Rotor:
• 8 mm Tail Shaft with 8x16x5 bearings for significantly increased rigidity.
• Single-Piece Shaft and Hub: Made from a single piece for maximum precision.
• Double-Point Pitch Control Slider: Reduces play in the tail rotor control.

Tail Boom:
• Molded Carbon Fiber: Tail boom is molded carbon fiber and assembled directly to the main frame.
• Belt Tensioning System: Includes an indicator for tension force for optimal control.

*** Canopy and Blades:
• Rear Battery Insertion: Batteries are inserted from the rear with integrated connectors.
• No Canopy Removal Needed: Canopy does not need to be removed for battery changes.
• The kit includes new S747-O main blades and the new S110-O tail blades.
The Genesis Sport offers advanced features that make it an excellent choice for both competition and demanding RC helicopter enthusiasts.

*** Specifications:
- AIRFRAME weight: 2584 gr (no blades, no battery, no electronics)
- Main rotor diameter: 1670 mm (with 747 mm main blades)
- Main blade length: 690 to 760mm
- Tail rotor diameter: 292 mm (with 110 mm tail blades)
- Tail blade length: 110 to 115 mm
- Cyclic Servos: Standard size 40mm
- Tail Servo: Standard size 40mm
- Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1).
- Tail Rotor Ratio: 5.1 - 4.9:1 (26T includes 4.9:1)
- Main shaft: 15 mm, Tail shaft: 8 mm
- Molded carbon tail boom
- Typical motor: 12S, 480/560 KV
- Battery room: 50x60x300 mm

*** KIT Includes:
• 21T motor pulley (other pulley sizes available).
• 2 battery trays with integrated connectors.
• S747 Orange (747 mm main blades)
• S110 Orange (110 mm tail blades)

II. Xnova Lightning 4535-460KV Brushless Motor With 6mm Shaft (Shaft A)
Xnova brushless high performance outrunner motor designed for 12S and 14S crazy power 3D flying, from 700 and up to 800mm size helicopter where highest power to weight ratio is important. One of the most powerfull motor currently available. Also a perfect fit for speed flying. This motor will bring your 800 size to a different level!

Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
Increased power output by the use of thicker hand wound YY single strand copper wires, heat resistant up to 300 degrees C.
High-performance neodymium magnets, heat resistant up to 180 degrees C.
All other features same as XTS series.
