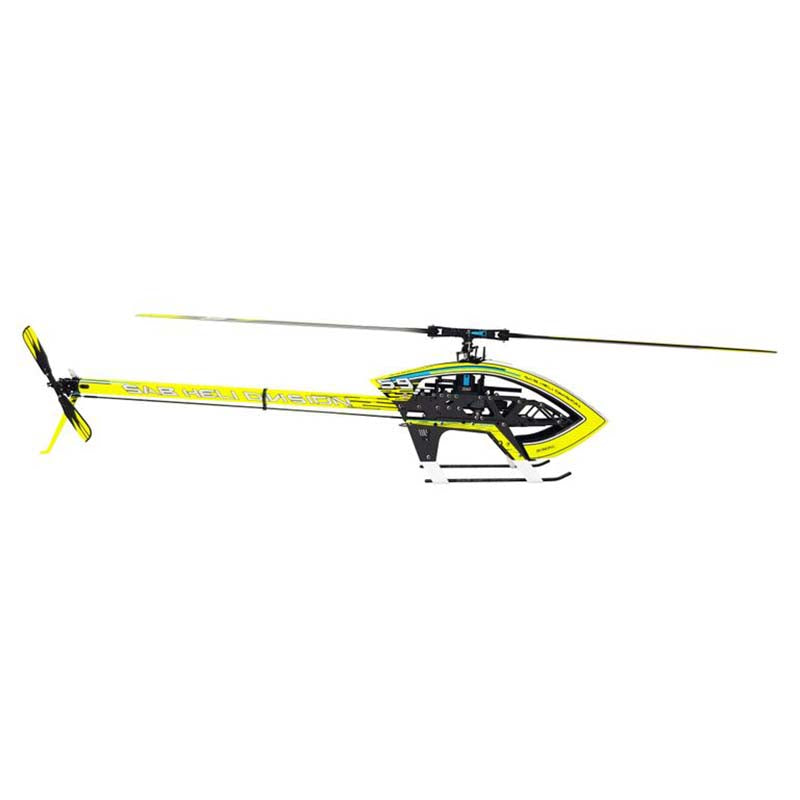

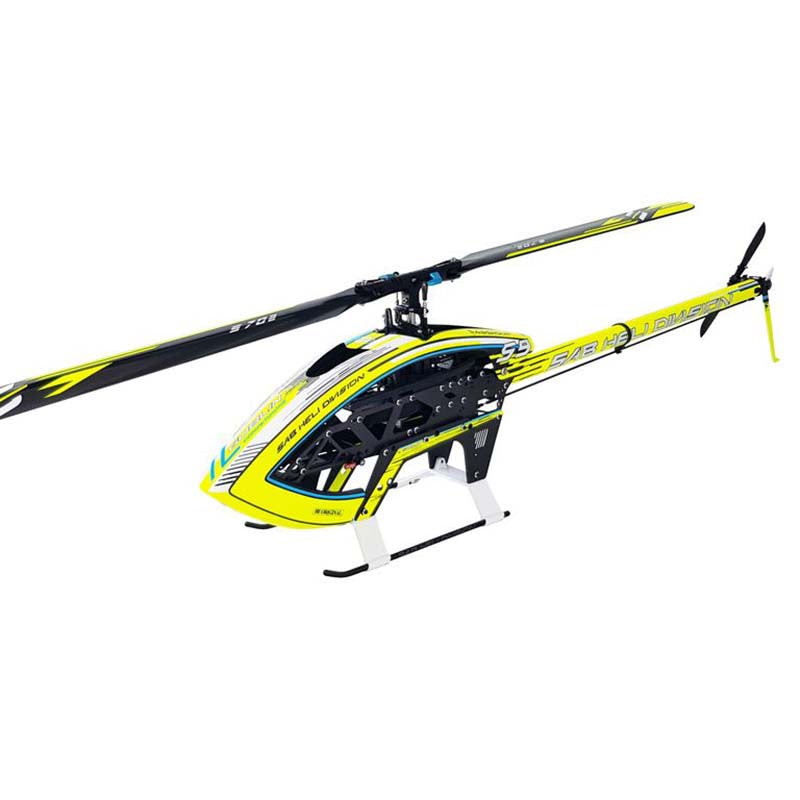

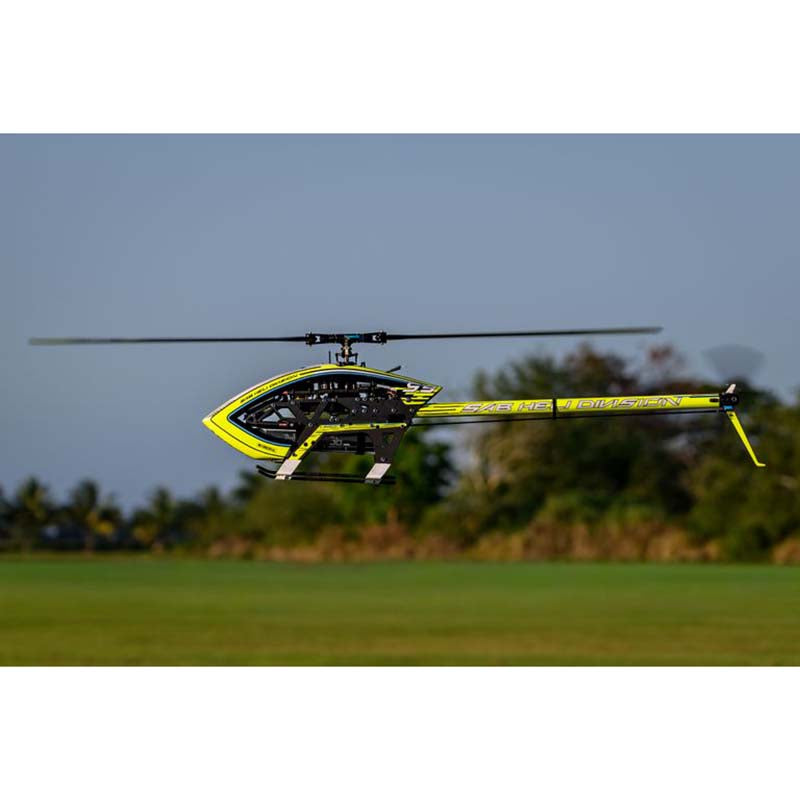

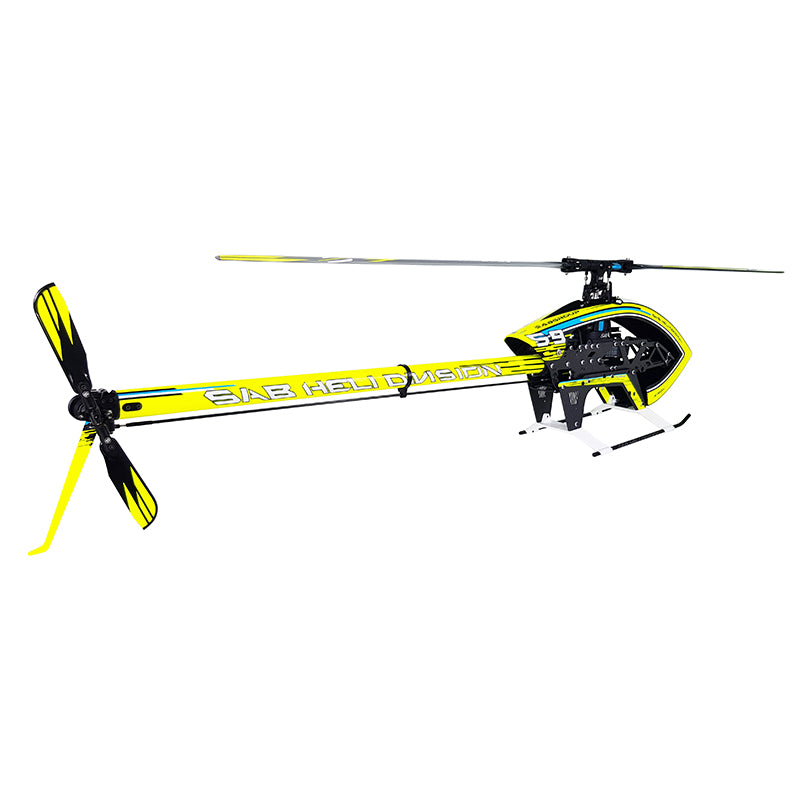

SAB ILGoblin Competizione Helicopter Kit w/ Blades

Born from years of competitive experience and rigorous testing with the world’s elite Goblin pilots, the ilGoblin Competizione represents the ultimate racing machine. Engineered with a “zero-compromise” philosophy, every single solution is focused on achieving peak performance.

In competition flying, lightweight is everything. Despite its ability to handle extreme power and aggressive maneuvers, the ilGoblin Competizione mainteins a remarkable airframe weight of under 2 kg.

Experience a level of acrobatic precision and flight feel never achieved before.

Innovative Features

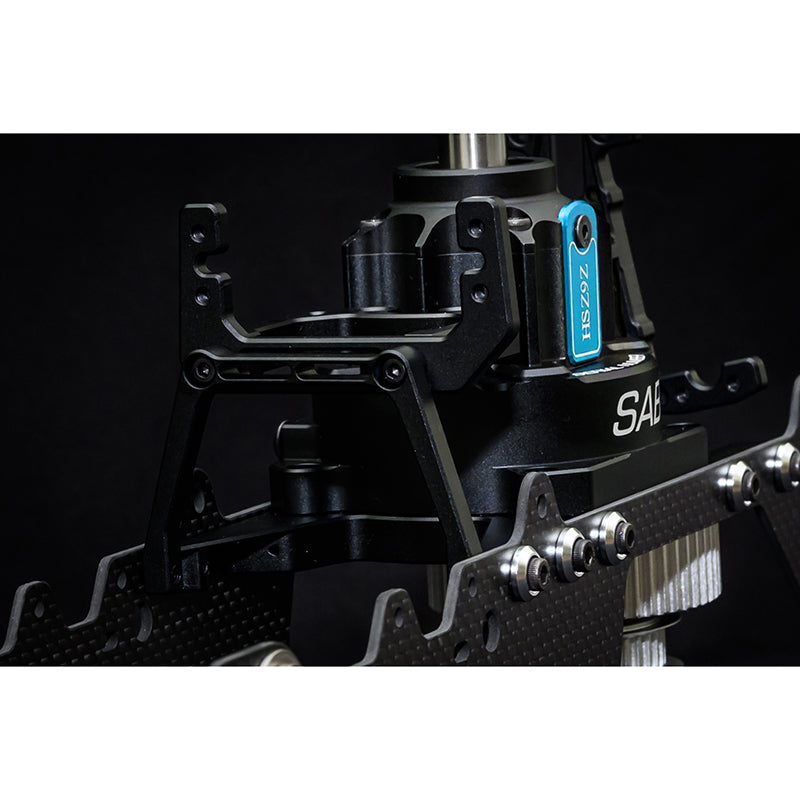

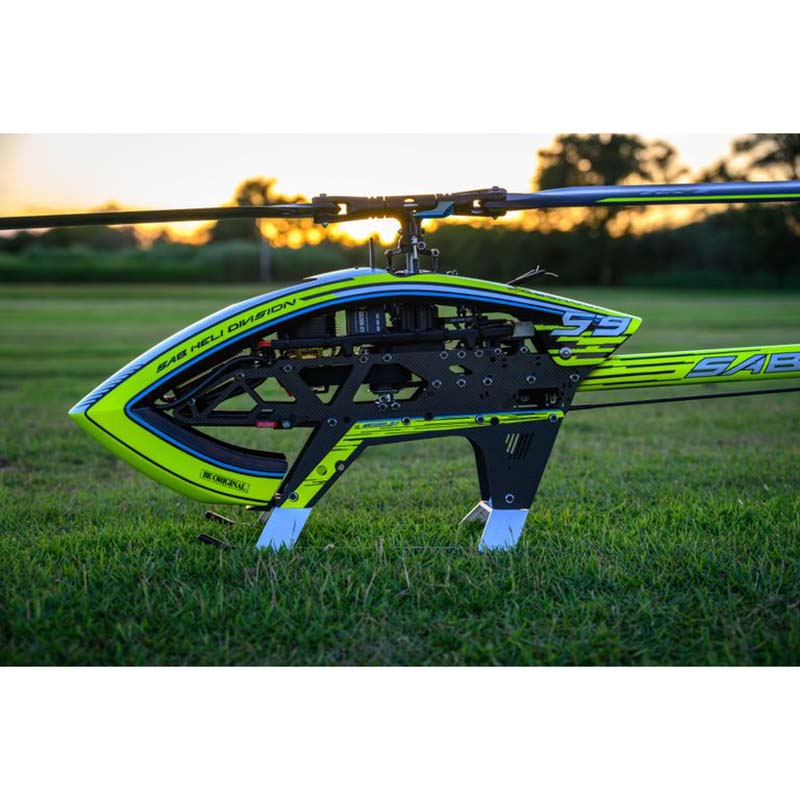

Main Frame

• Enhanced Frame Design: Lightened and redesigned for maximum structural rigidity.

• 19 mm Motor Belt: Built for high torque and durability.

• High-Efficiency Tensioner: Ensures optimal Tail belt performance.

• Extra Rear Servo Support: Added stability for the most demanding maneuvers.

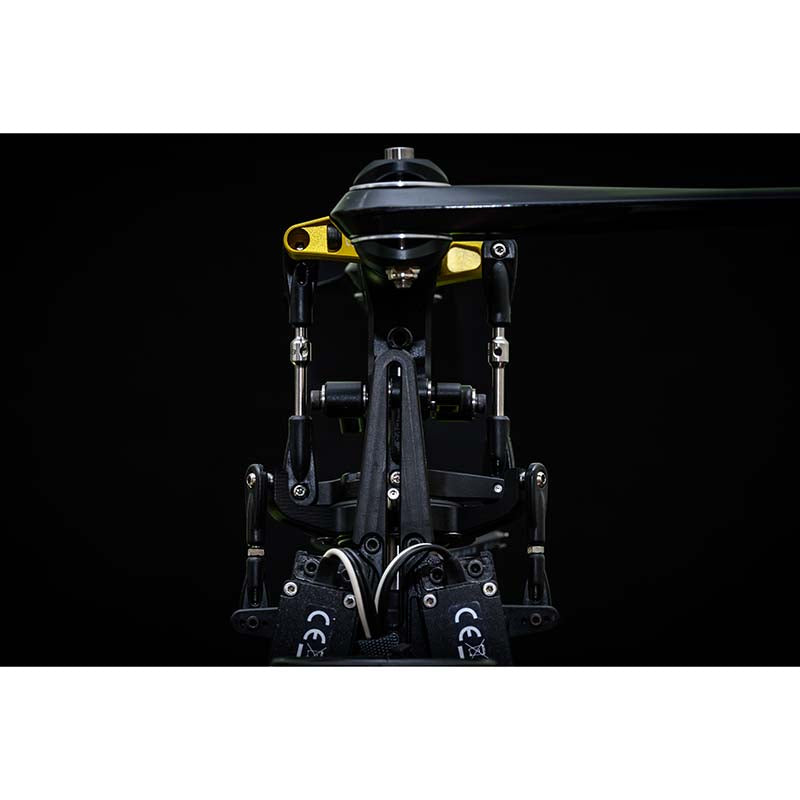

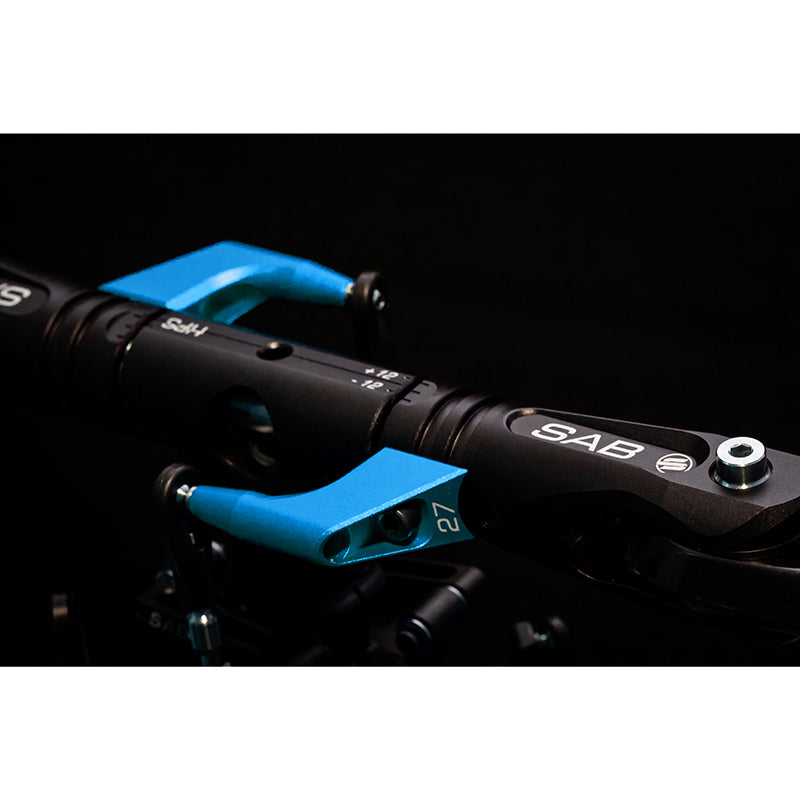

Main Rotor

• Revolutionary Geometry: Optimized for a true 1:1 control ratio.

• High-Modulus Technopolymer Dampers: Engineered for superior responsiveness and precision.

• 12 mm Main Shaft: Supported by triple bearings for maximum reliability and smoothness.

• Zero-Play Swashplate Arms: Improved reference points for precise cyclic input.

• Titanium blade screws and Titanium/Delrin washers for lightweight strength.

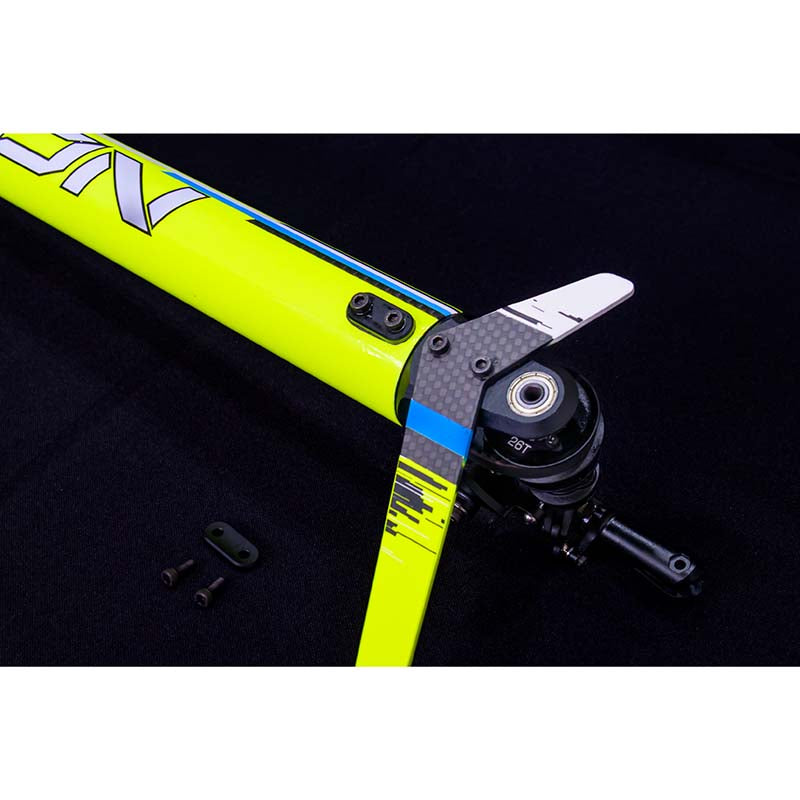

Tail Rotor

• Lightweight Tail Case: Features an oversized bearing for improved durability.

• One-Piece Shaft & Hub: Machined from a single piece for maximum precision, including an integrated damper for vibration control.

• Double-Pin Tail Slider: Eliminates slop for rock-solid tail authority.

• CNC Plate Washers: For a high-end, durable finish.

Tail Boom

• 35 mm Carbon Boom: Features internal aluminum reinforcements.

• Ultralight Construction: Total weight of only 180 grams.

Canopy & Blades

• Fast Battery Access: Unique canopy design allows battery insertion from the rear—no need to remove the canopy.

• Integrated Connectors: Makes battery swaps lightning-fast and convenient.

• High-Visibility Scheme: Optimized for orientation and clarity during high-speed competition.

Fully compatible with molded boom and Pro canopy for the total unique Goblin design.

Kit Includes: 22T motor pulley, 26T tail pulley, 2 battery trays, S702 Yellow main blades (700 mm), S110 Yellow tail blades (110 mm).

Technical Specifications

• Airframe weight: 1926 g (No blades)

• Main rotor diameter: 1576 mm (with 700 mm blades)

• Main blade length: 650–715 mm

• Tail rotor diameter: 292 mm (with 110 mm tail blades)

• Tail blade length: 105–115 mm

• Servos: Standard size (40 mm) for Cyclic and Tail

• Main rotor ratio: 11.8 to 8.8 : 1 (21T pulley included = 10.1 : 1)

• Tail rotor ratio: 5.1–4.9 : 1 (26T pulley included = 4.9 : 1)

• Power system: 6S–12S setups (Motor KV: 480–560 / 950–1100 KV)

• Battery compartment: 50 x 60 x 300 mm
