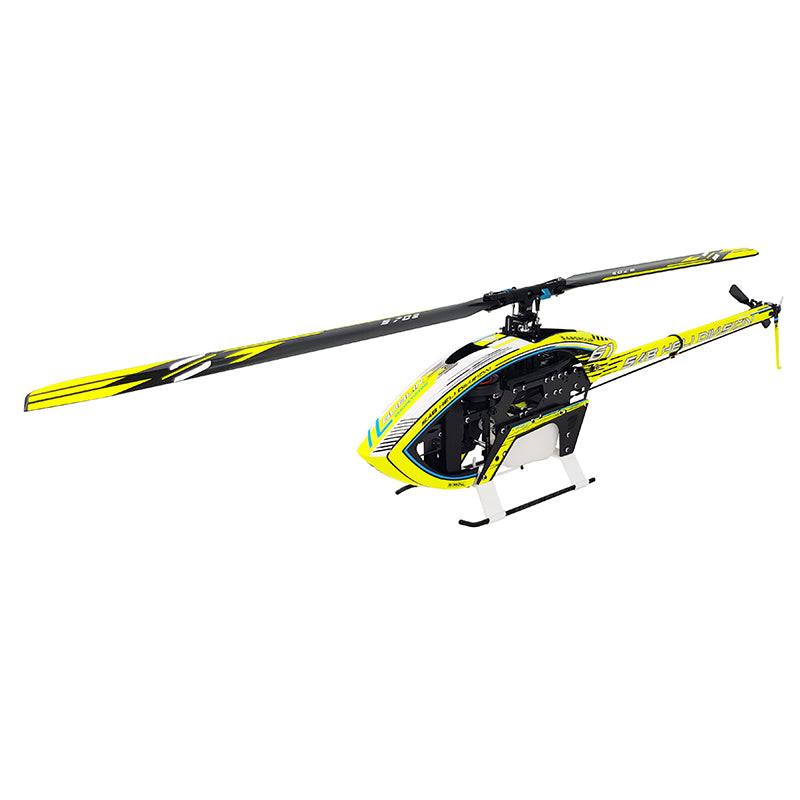

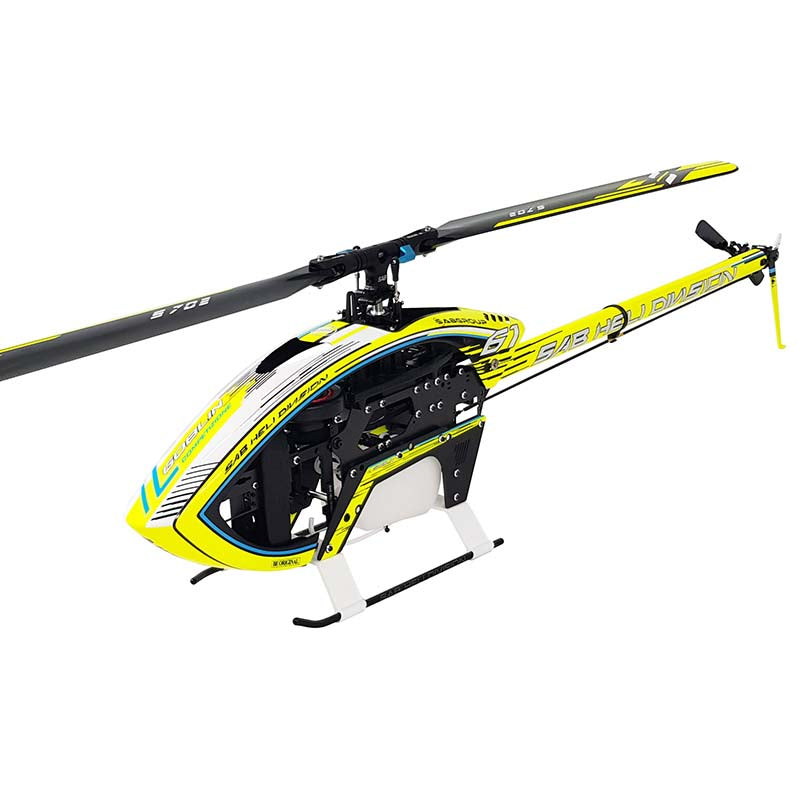

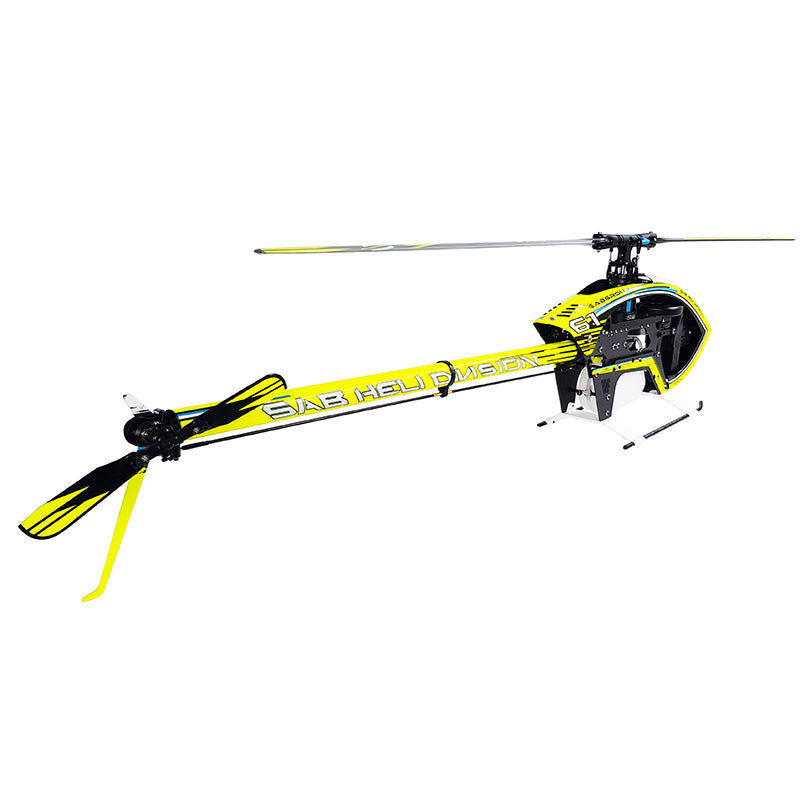

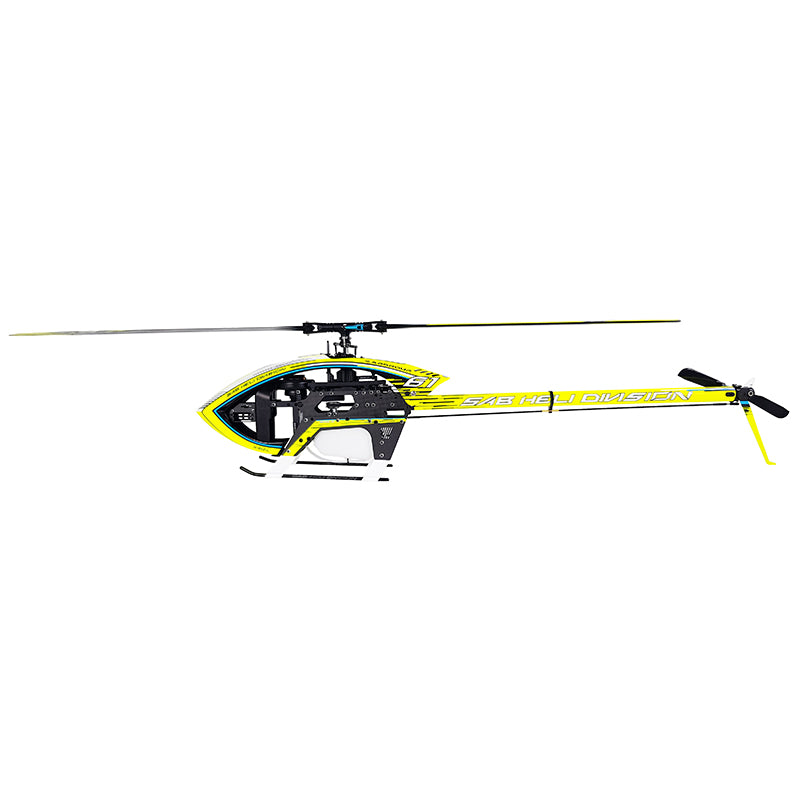

SAB ILGoblin Competizione Helicopter Kit w/ Blades - Nitro Version

The excellence of the Competizione platform is also available in a Native Nitro version. This model incorporates all the high-end updates of the electric version, optimized for combustion performance.

Innovative Features

Main Frame

• Enhanced Frame Design: Lightened and redesigned for maximum structural rigidity.

• 19 mm Motor Belt: Built for high torque and durability.

• High-Efficiency Tensioner: Ensures optimal Tail belt performance.

• Extra Rear Servo Support: Added stability for the most demanding maneuvers.

Main Rotor

• Revolutionary Geometry: Optimized for a true 1:1 control ratio.

• High-Modulus Technopolymer Dampers: Engineered for superior responsiveness and precision.

• 12 mm Main Shaft: Supported by triple bearings for maximum reliability and smoothness.

• Zero-Play Swashplate Arms: Improved reference points for precise cyclic input.

• Titanium blade screws and Titanium/Delrin washers for lightweight strength.

Tail Rotor

• Lightweight Tail Case: Features an oversized bearing for improved durability.

• One-Piece Shaft & Hub: Machined from a single piece for maximum precision, including an integrated damper for vibration control.

• Double-Pin Tail Slider: Eliminates slop for rock-solid tail authority.

• CNC Plate Washers: For a high-end, durable finish.

Tail Boom

• 35 mm Carbon Boom: Features internal aluminum reinforcements.

• Ultralight Construction: Total weight of only 180 grams.

Canopy & Blades

• Fast Battery Access: Unique canopy design allows battery insertion from the rear—no need to remove the canopy.

• Integrated Connectors: Makes battery swaps lightning-fast and convenient.

• High-Visibility Scheme: Optimized for orientation and clarity during high-speed competition.

Fully compatible with molded boom and Pro canopy for the total unique Goblin design.

Kit Includes: 22T motor pulley, 26T tail pulley, 2 battery trays, S702 Yellow main blades (700 mm), S110 Yellow tail blades (110 mm).

Technical Specifications

• Airframe weight: 2340 g (No engine, no blades)

• Throttle Servo: Standard (40 mm) or Mini size (35 mm)

• Main Rotor Ratio: 8.3 to 7.7 (26T included: 8.3:1)

• Tail Rotor Ratio: 5.1–4.1 : 1 (23T included: 4.7:1)

• Engine: .90 to .105 Nitro Heli Engine

• Tank Capacity: 650 ml

• RX Battery Size: 2S 1800 / 2500 mAh
