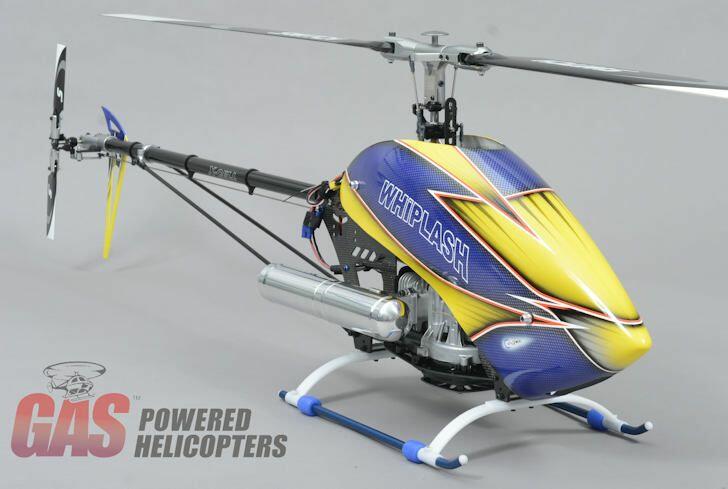

Whiplash-G II Flybarless (FBL)
){kind=link}

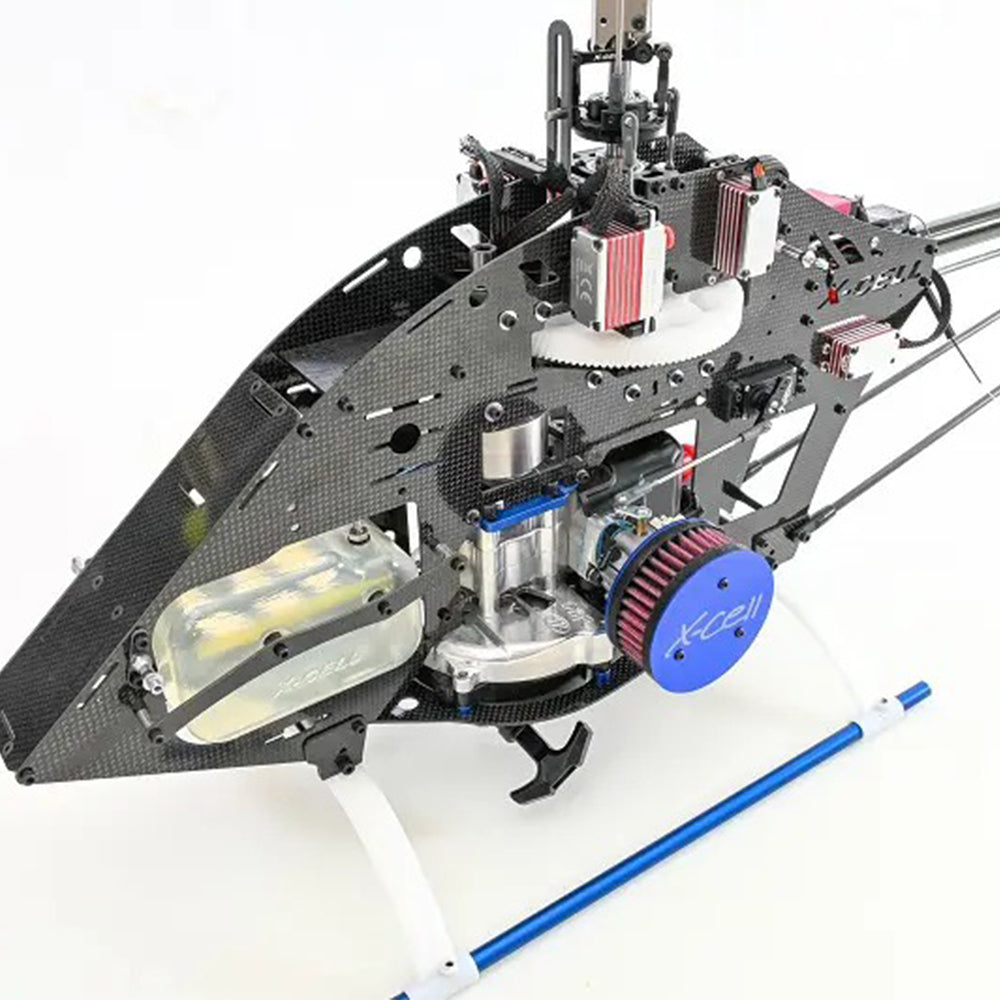

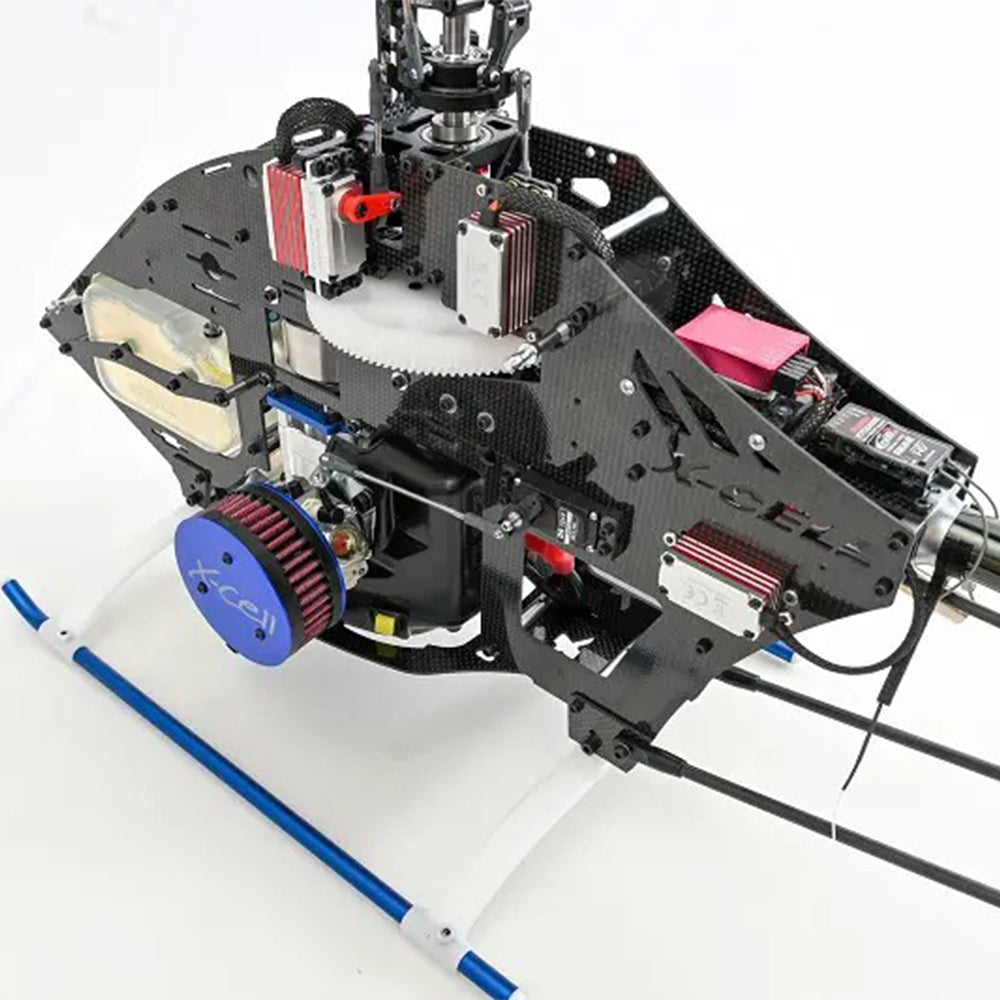

Chassis:
- Sturdy graphite main frame unit.
- All C/F parts are made from 100% carbon.

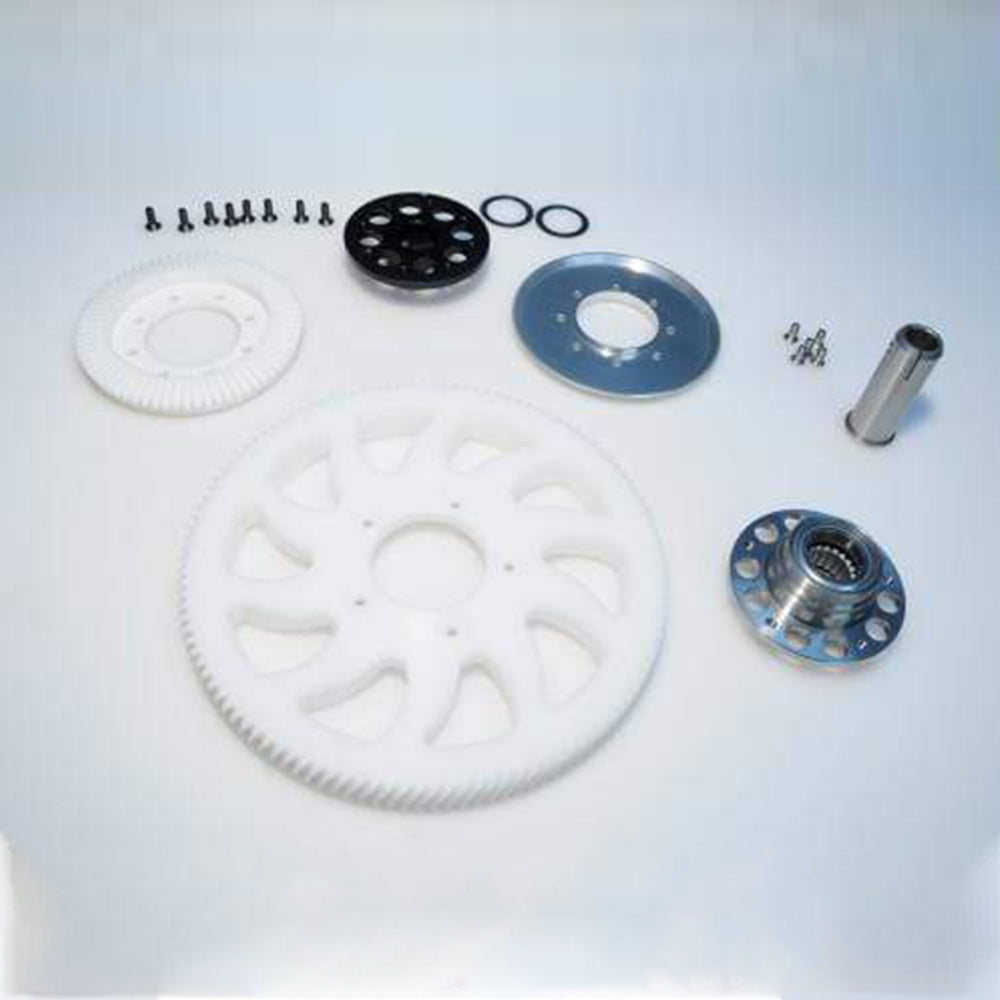

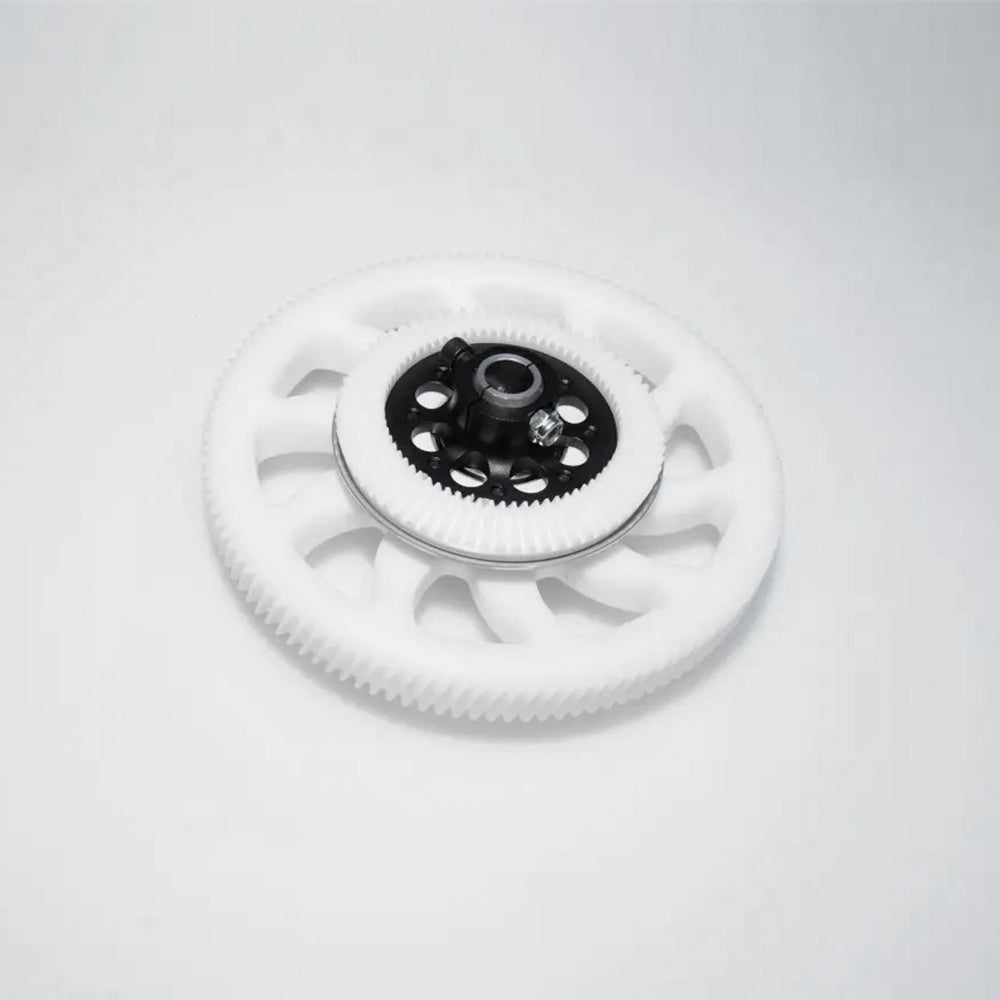

- CNC machined Delrin 117 tooth helical main gear
- High quality one way bearing Made in Germany
- High quality one way bearing hub, full ball bearings
- Heavy duty, high quality front tail drive gears Made in Germany

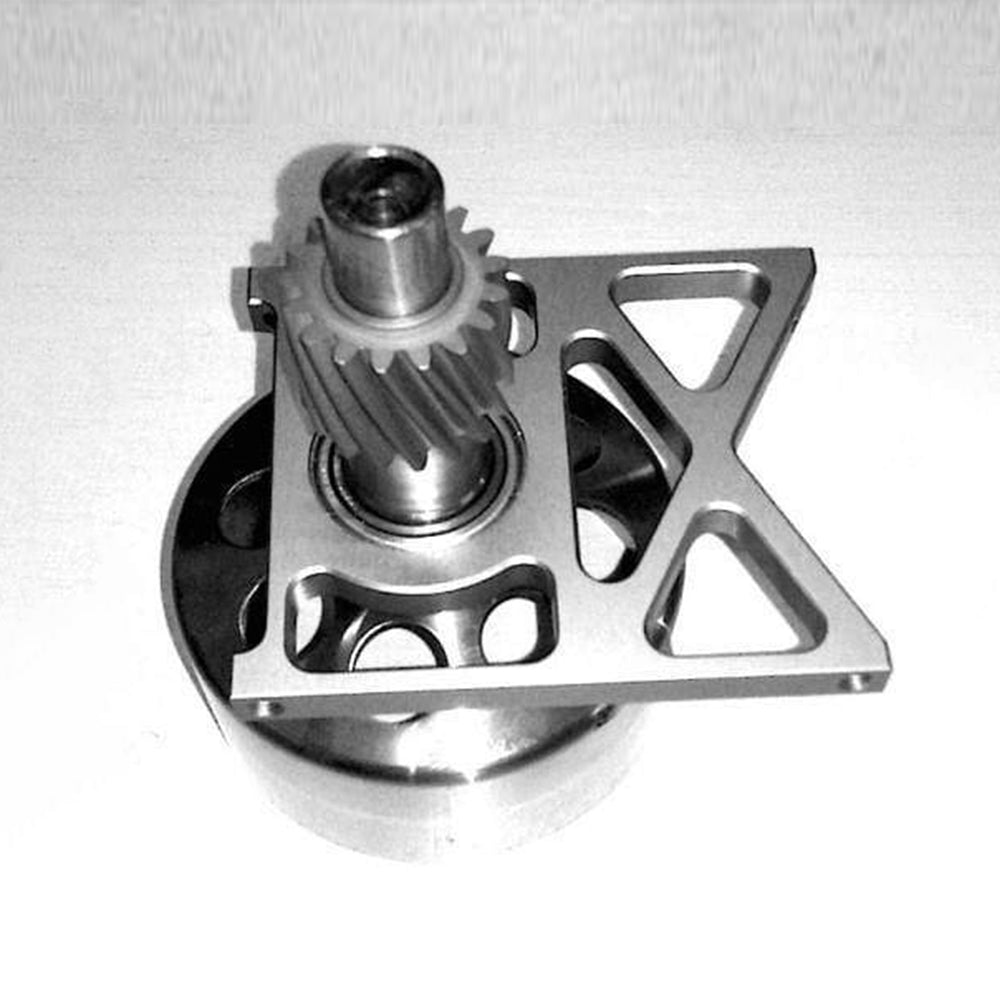

- High precise two-piece clutch bell with double ball bearing support
- Optional gear ratios
- True T6-6061 CNC machined aluminum components
- CNC machined aluminum triple main shaft bearing blocks
- Direct controlled 120 (degree) CCPM
- CNC machined aluminum boom clamps
- CNC machined aluminum engine mount
- Full ball bearings throughout
- High quality landing gear struts

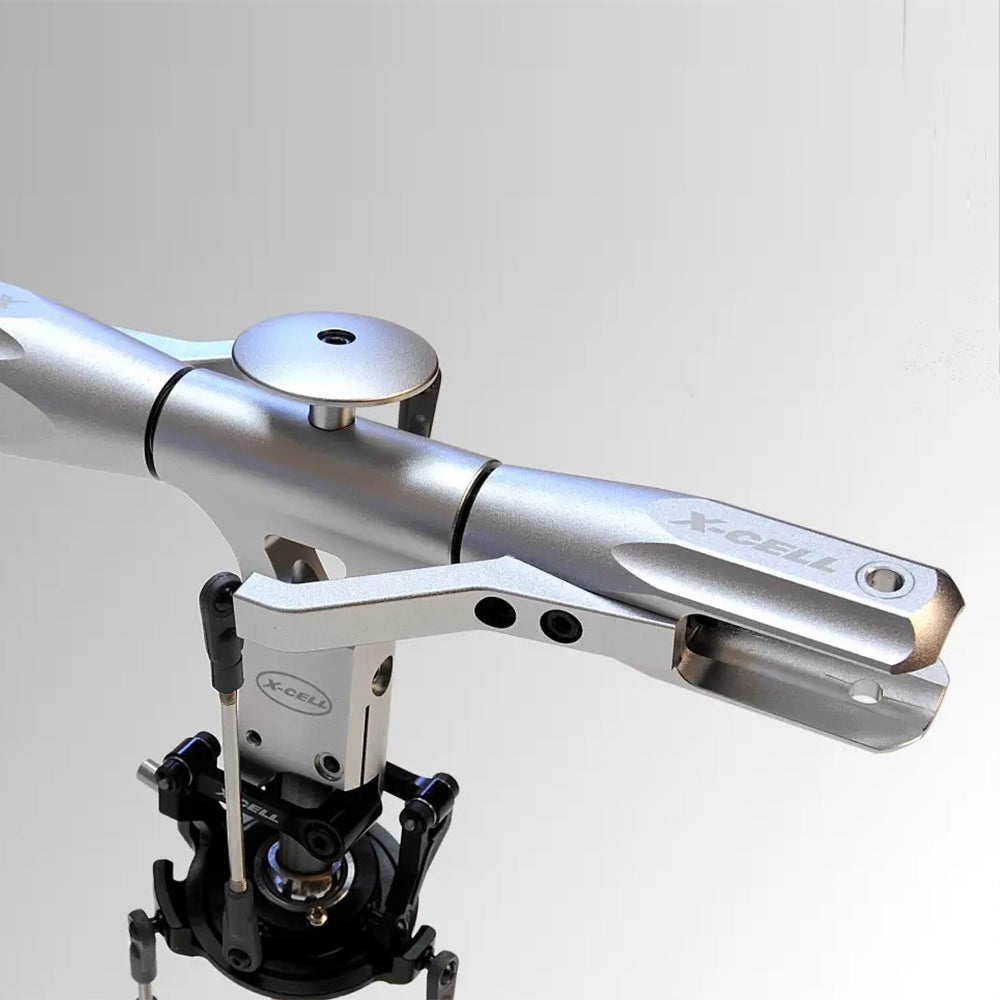

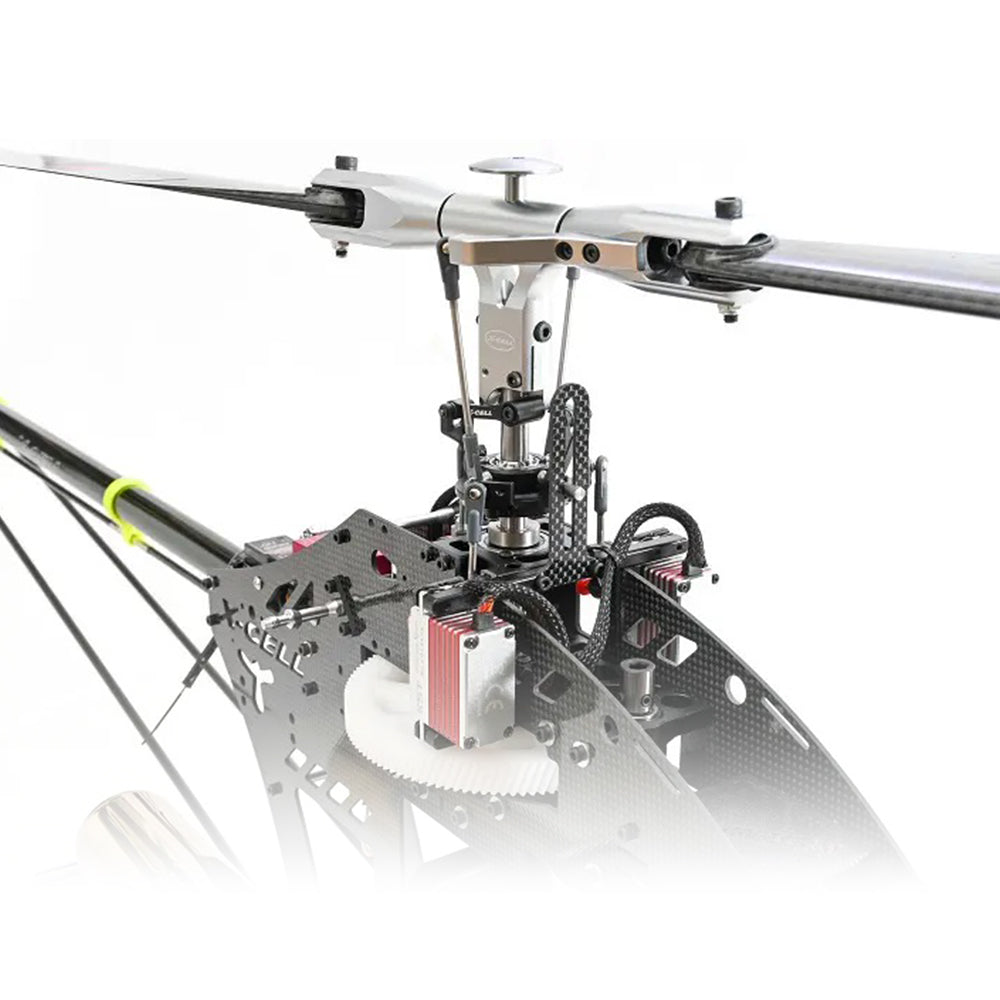

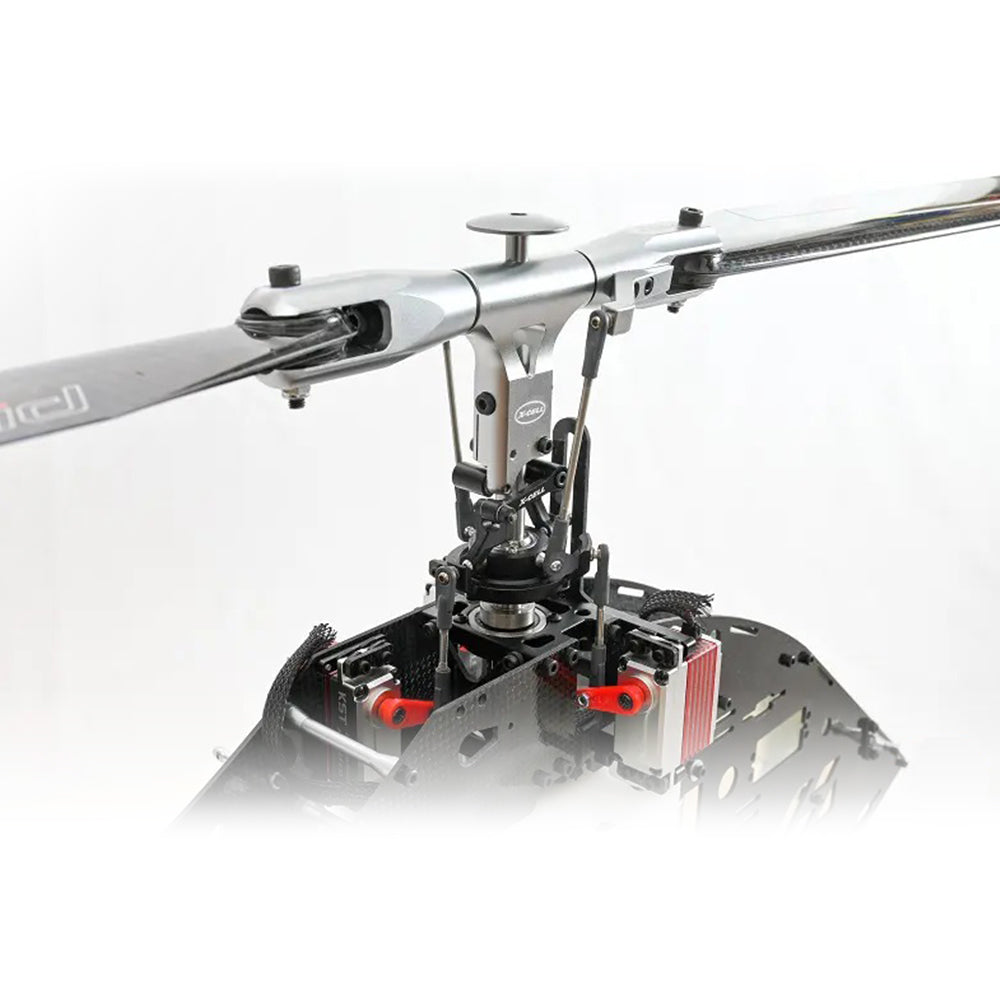

Rotor Head:
- Full ball bearings
- Heavy duty linkages
- 9mm head axle made from special high quality steel
- CNC machined aluminum swashplate

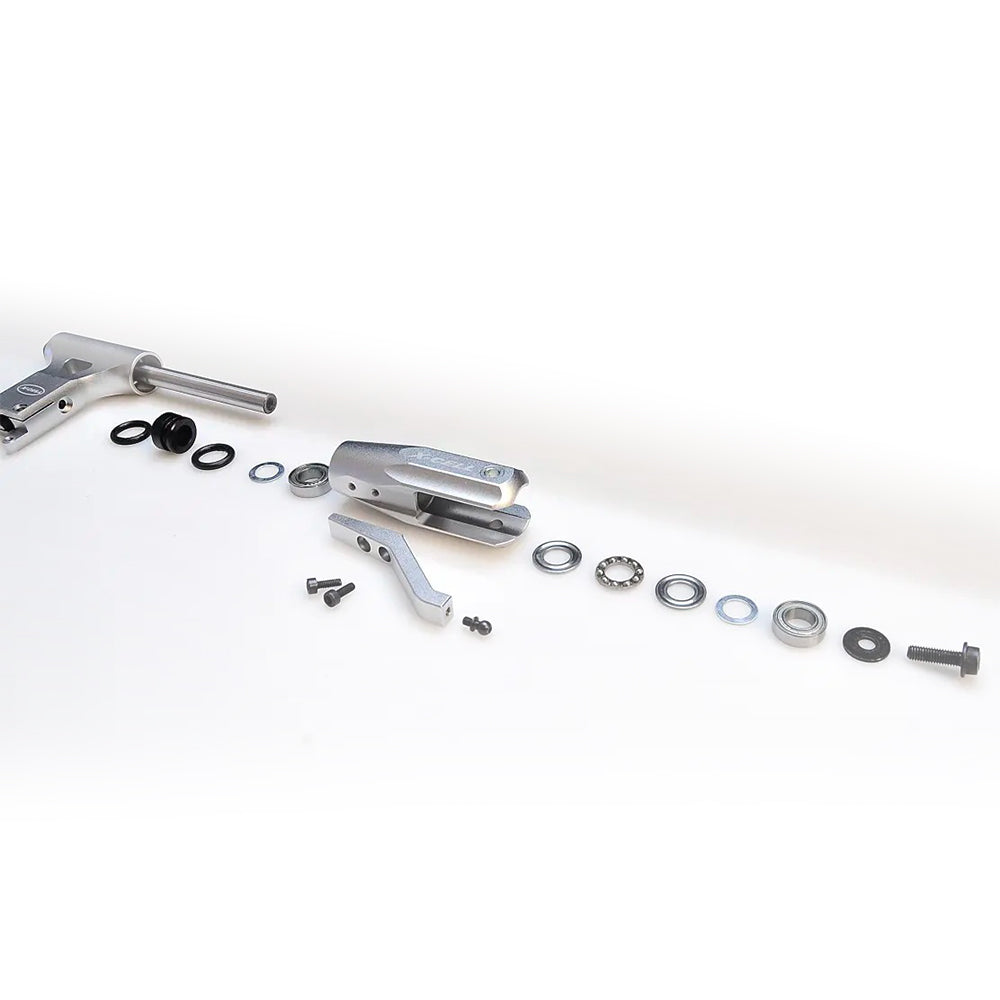

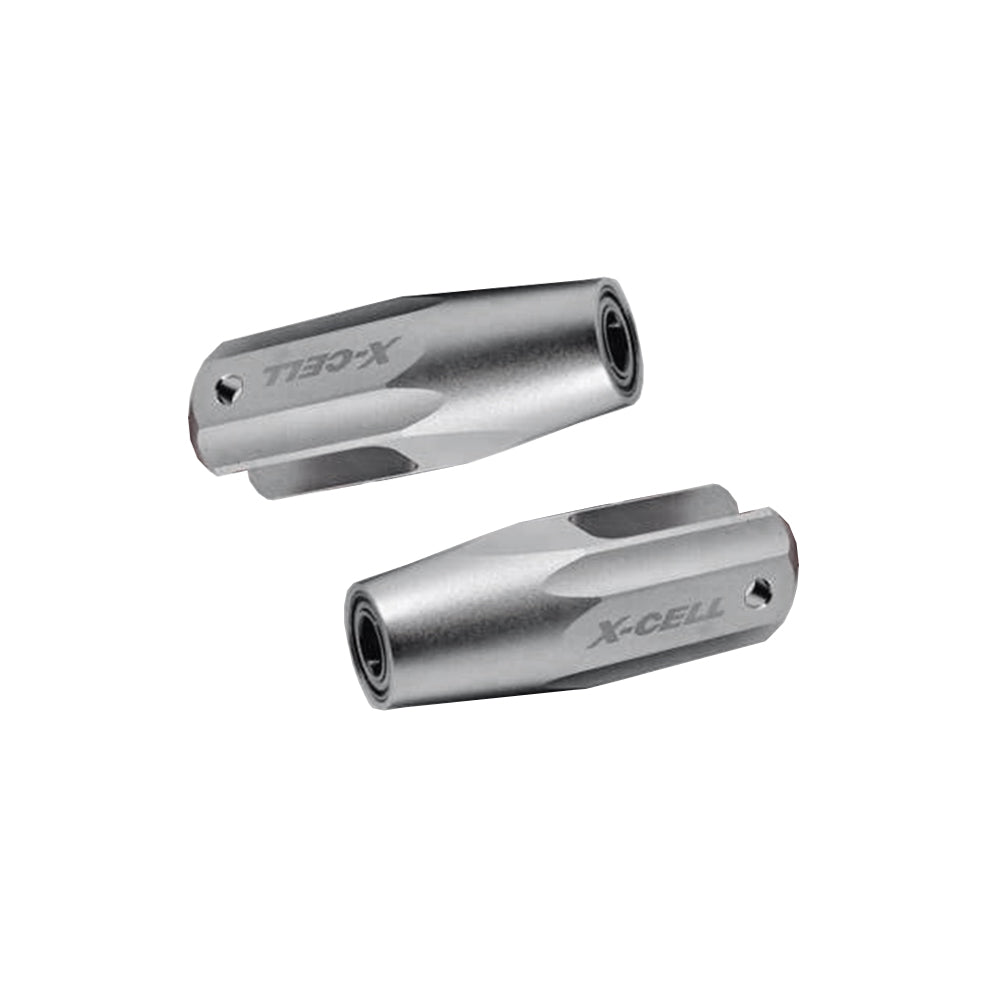

- CNC machined main rotor grips
- CNC machined main rotor head
- High quality swashplate heim ball/ball bearing by original SKF
- High precise swash plate follower arms with 4 ball bearings each
Tail Rotor:
- Full ball/thrust bearings
- Tail Rotor hub made from special high quality steel
- Graphite tail fin

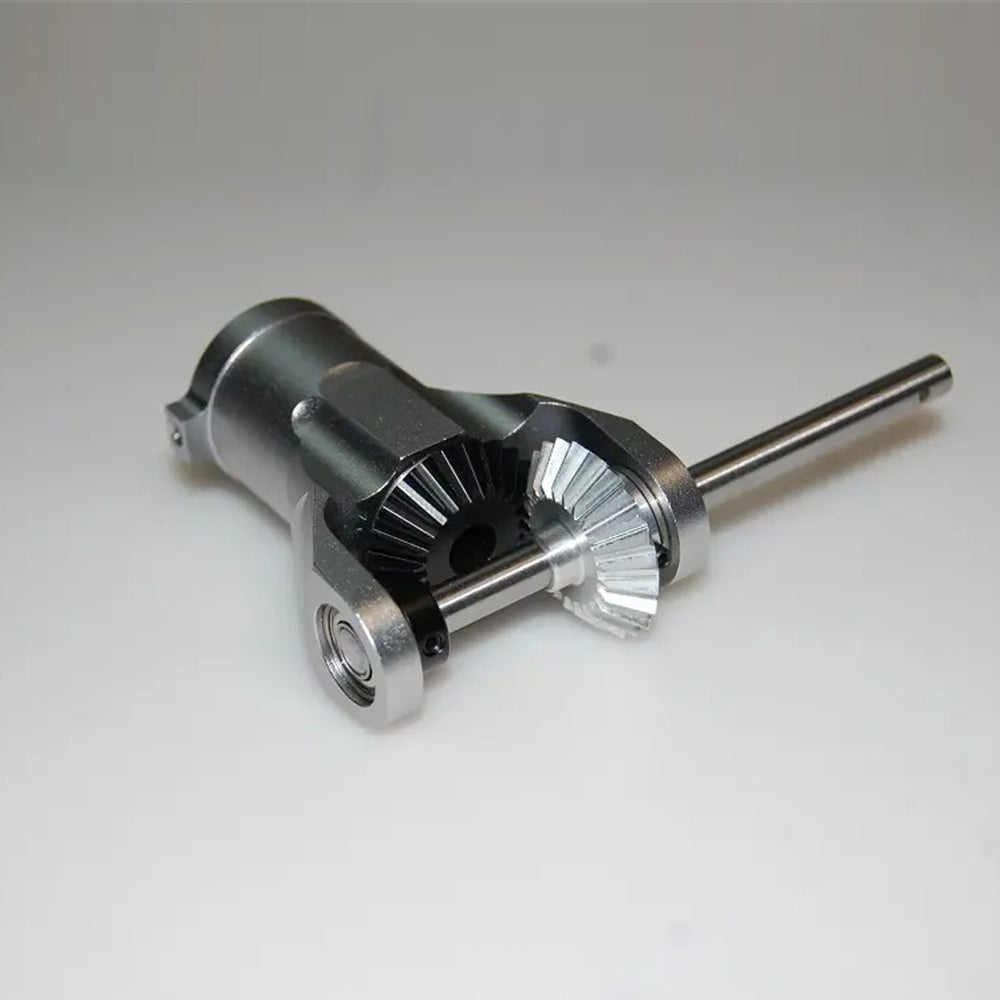

- CNC aluminum “open” gearbox
- CNC machined tail gears made from aluminum and POM
- Aluminum 22mm tail boom
- Positive control system
- Hardened tail rotor output shaft
- High precision tail slider
- Carbon/Aluminum boom supports
- Carbon Tail Control Rod
- High Flow Air Cleaner X-cell
Canopy:
- High Visibility Painted Epoxy-Glass Canopy
These are the parts you will need beside the Whiplash-G II kit:
Engine: we recommend a 300 size (29.5ccm), balanced and optimized for use in helicopters.

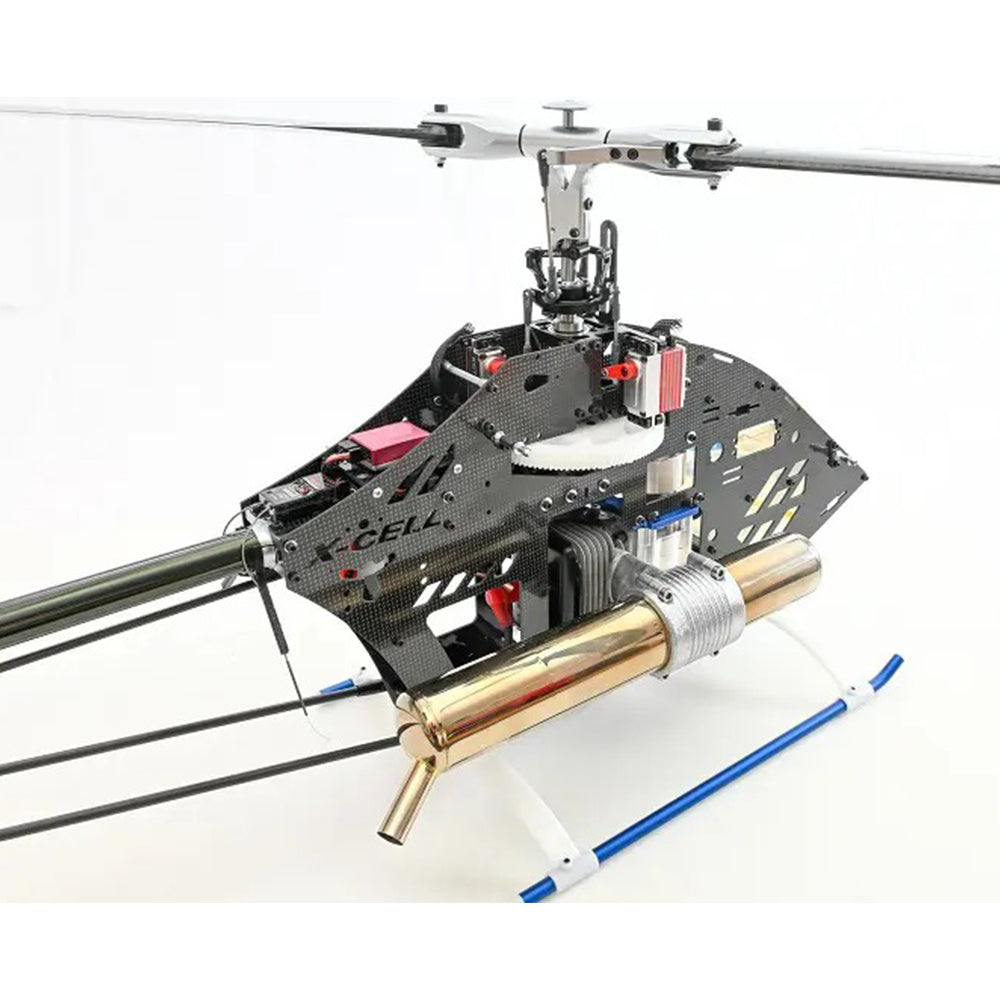

Muffler: you can use the Zimmermann Whiplash edition muffler or the M-Studio pipe. The Zimmermann is made from stainless steel and makes little more power than the M-Studio. The M-Studio is about 100g less in weight. Most of our team pilots use the Zimmermann.
Blades: we recommend 710 to 720mm main blades. We have good experience with 716 Rail, 713 Switch, 720 MS-Composite and we have a special 710 MS-Composite which is optimized for the Whiplash gasser and turbine. 105mm tail blades work best.
Servos: you need servos which can handle the vibrations of a gas helicopter. Most experience we have with Futaba, some team pilots fly KST servos.
FBL: you can use the CGY760 (including a FASSTest receiver) or the new CGY755. For both FBLs you will need a separate receiver which can receive the FASST protocol and has a SBUS output. You can use the R7006SB or the R7108SB for example.
Governor: it is highly recommended to use a governor at a gas helicopter. The Futaba FBLs do include a very good governor. So you will not need any separate one. If you use a FBL without a governor or with a governor which cannot handle gas engines you can use the Futaba GY701 governor.
Receiver battery: any 2S LiPo / LiFe or 5S NiMh battery with at least 3500mAh
Switch: we recommend a high quality electronical switch like the Futaba P-FESW-1D. It is important to use high quality connectors which can handle the vibrations. The Futaba switch comes with deans connectors also for the battery.
| Helicopter | |
| Heli Length | 52.5" (1343mm) |
| Heli Height | 17.25" (439mm) |
| Rotor Span | 1561-1621mm - 690-720mm blades |
| Tail Rotor Span | 286mm with 105mm T/R blades |
| Avg. Ready-to-Fly Weight | 12-13lbs - 5.8-6.2kg (less fuel) |
| Main Drive Ratio | 6.89:1 (7.3:1, 7.8:1 options) |
| Tail Drive Ratio | 4.67:1 |
| Main Rotor Blades | 690-720mm |
| Recommended Power | 23-32cc R/C Style Gas Engine |
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
MA1033-3 |
| Weight: |
21.0 lb |
