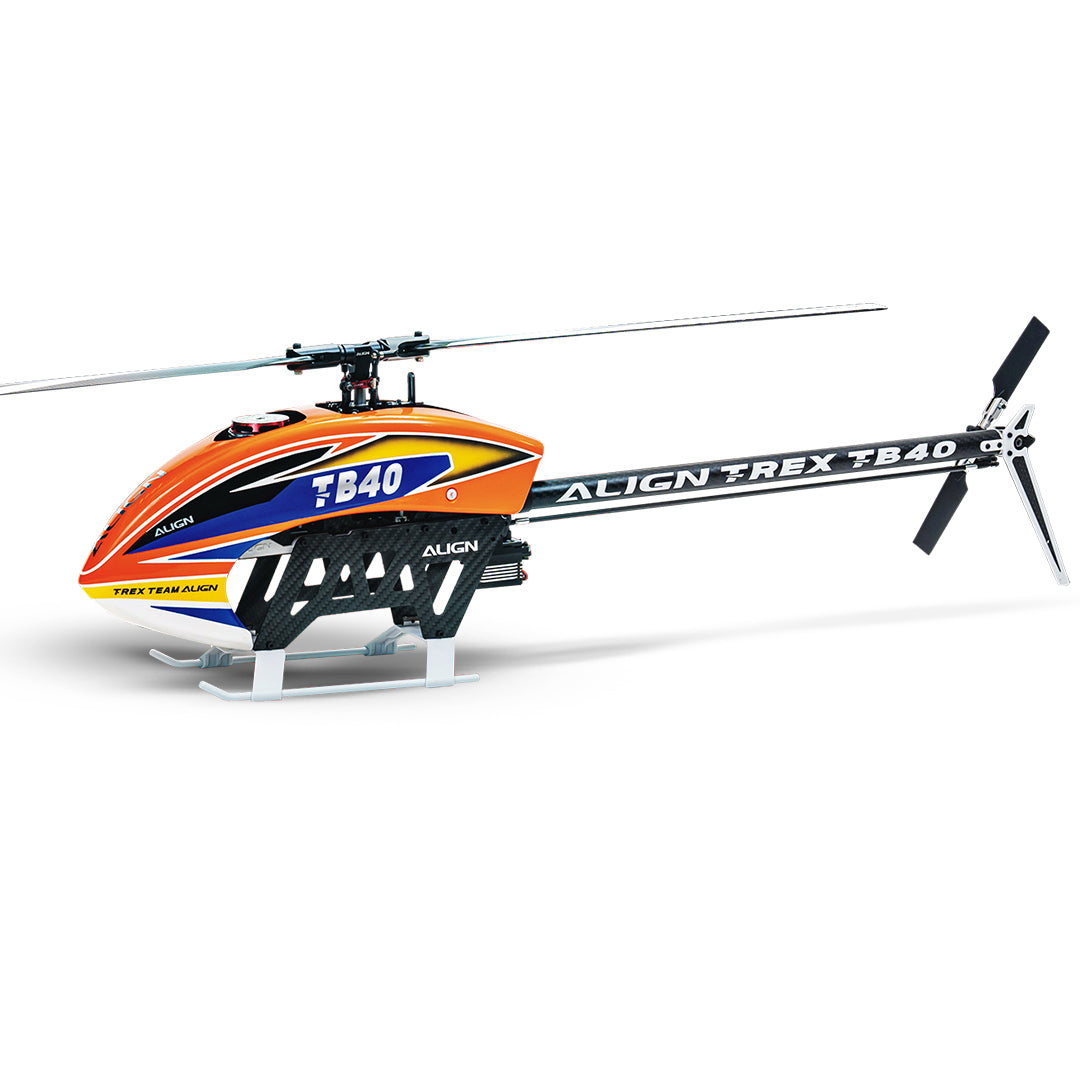

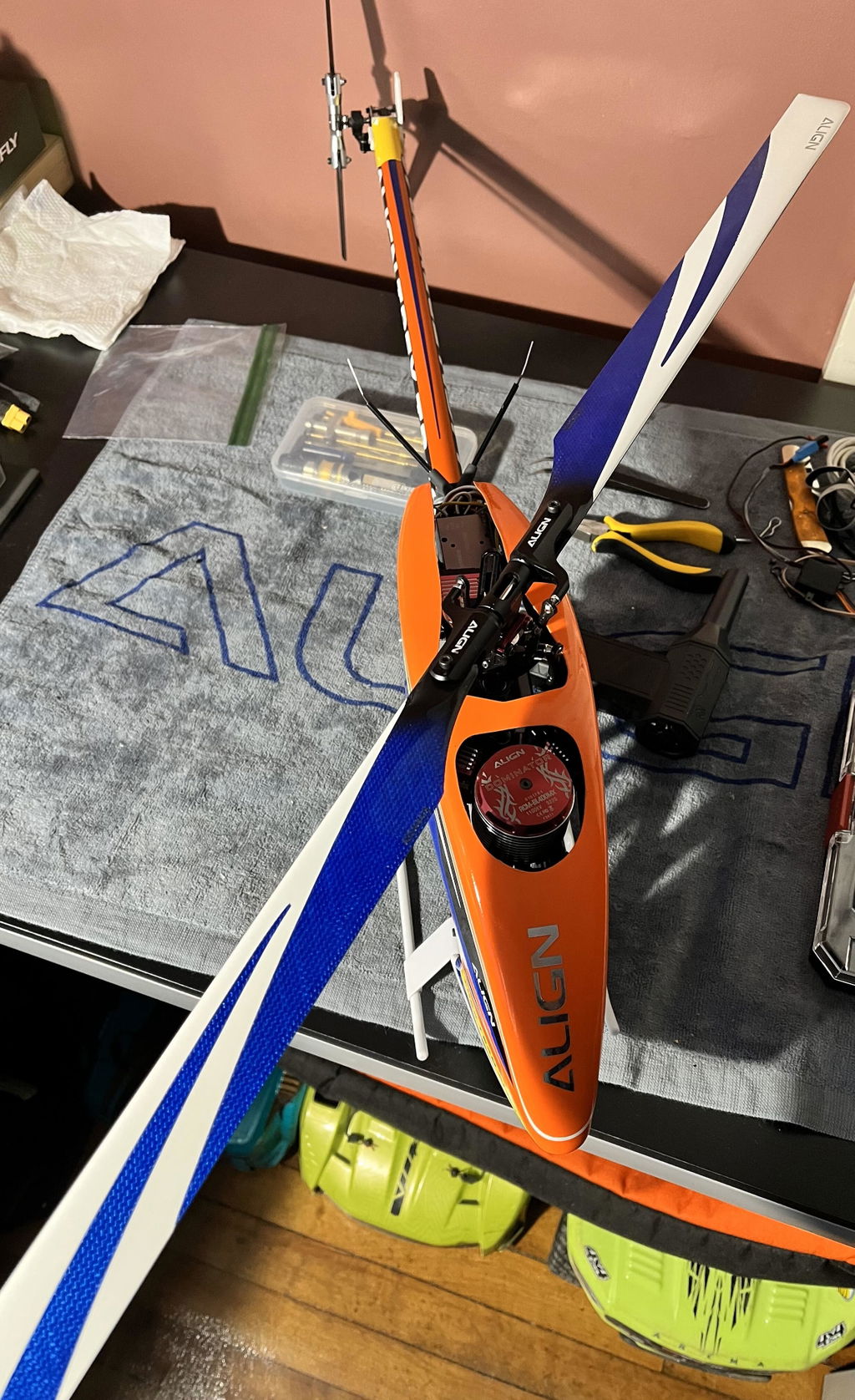

Align TB40 Helicopter TOP Combo

Vendor: Align
|
SKU: RH40E01XT
Availability: In Stock
Price Match Guarantee
$530.09
$530.09
The order quantity exceeds the stock!
Align TB40 Helicopter TOP Combo - HeliDirect

Align TB40 Helicopter TOP Combo

$530.09

Align TB40 Helicopter TOP Combo

$530.09

Related Products




Standard equipment

●60A Brushless ESC x 1
●400MX Brushless Motor(1100KV/3220) x 1
●DS450M Digital Servo x 3
●DS535M Digital Servo x 1
●MICROBEAST² Flybarless System x 1



Specification

●Length: 747mm
●Height: 223mm
●Width: 103mm
●Main Blade Length: 380mm
●Main Rotor Diameter: 851mm
●Tail Length: 70mm
●Tail Rotor Diameter: 188mm
●400MX Brushless Motor(1100KV/3220)
●Motor Belt Pulley: 22T
●Drive Gear Ratio: 6.44:1:4.04
●Max RPM(approx.): 3400RPM
●Frame Weight(Batteries not included): Approx. 953g


Accessories

TB40 Kit Set x 1 set
●380 Carbon Fiber Blades x 1 set
●70 Carbon Fiber Tail Blades x 1 set
●400MX Brushless Motor(1100KV/3220) x 1
●DS450M Digital Servo x 3
●DS535M Digital Servo x 1
●60A Brushless ESC x 1
●MICROBEAST² Flybarless System x 1


Radio transmitter and electronic equipment required for assembly

●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more)
●RCC-6CX Intelligent Balance Charger
●22.2V 6S 1850~2200mAh Li-Po Battery
●Digital Pitch Gauge
●Multi-function Tester





Vendor: Align
SKU: RH40E01XT
Barcode: 4713413734061
Availability: In Stock
Product Type: Helicopter Kit
Weight: 4.25 lb
